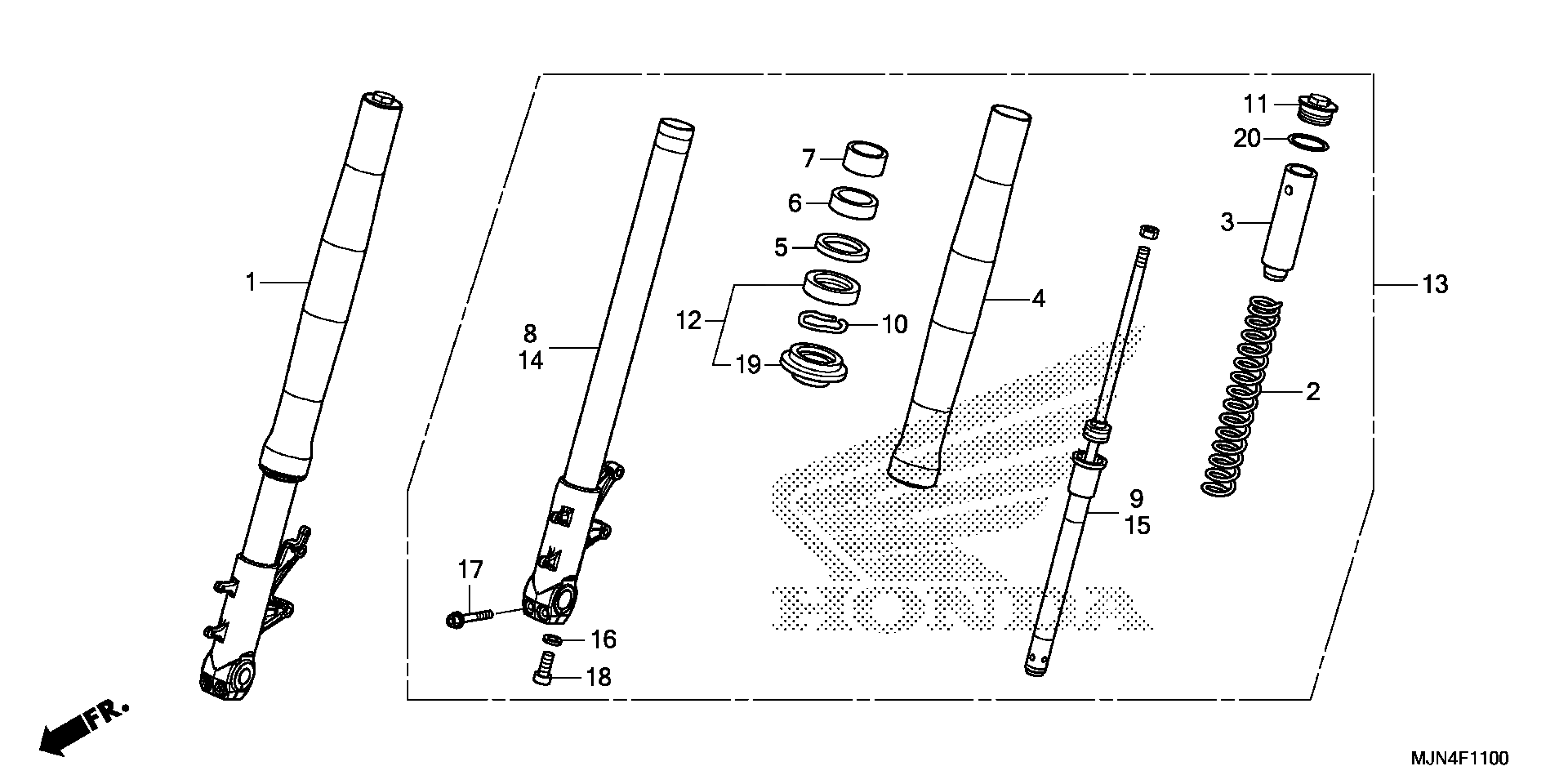

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR.

51400-MJN-A01

$1,621.54

FORK ASSY., R. FR. (COO)

51400-MJN-305

$1,611.74

SPRING, FR. FORK

51401-MJN-A01

$101.44

COLLAR, SPRING

51403-MJN-A01

$39.16

TUBE (OUTER)

51410-MJN-A01

$592.36

RING, BACK-UP

51412-MGE-003

$8.21

BUSH, GUIDE

51414-MGE-003

$7.48

BUSH, SLIDER

51415-MGE-003

$8.85

PIPE, R. SLIDE

51425-MJN-A01

$500.41

DAMPER, R. FR. SLIDE

51430-MJN-A01

$528.33

RING, OIL SEAL STOP

51447-KZ4-711

$5.04

BOLT, FR. FORK

51450-MJN-A01

$56.93

SEAL SET, FR. FORK

51490-MGE-003

$22.87

FORK ASSY., L. FR.

51500-MJN-A01

$1,621.54

FORK ASSY., L. FR. (COO)

51500-MJN-305

$1,611.74

PIPE, L. SLIDE

51525-MJN-A01

$500.41

DAMPER, L. FR. SLIDE

51530-MJN-A01

$528.33

WASHER, OIL BOLT

52442-KA3-731

$2.34

BOLT, SOCKET (8X35)

90112-MW3-600

$3.31

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

DUST SEAL

91254-MGE-003

$13.57

O-RING (42.2X2.4)

91351-MJN-A01

$6.02
