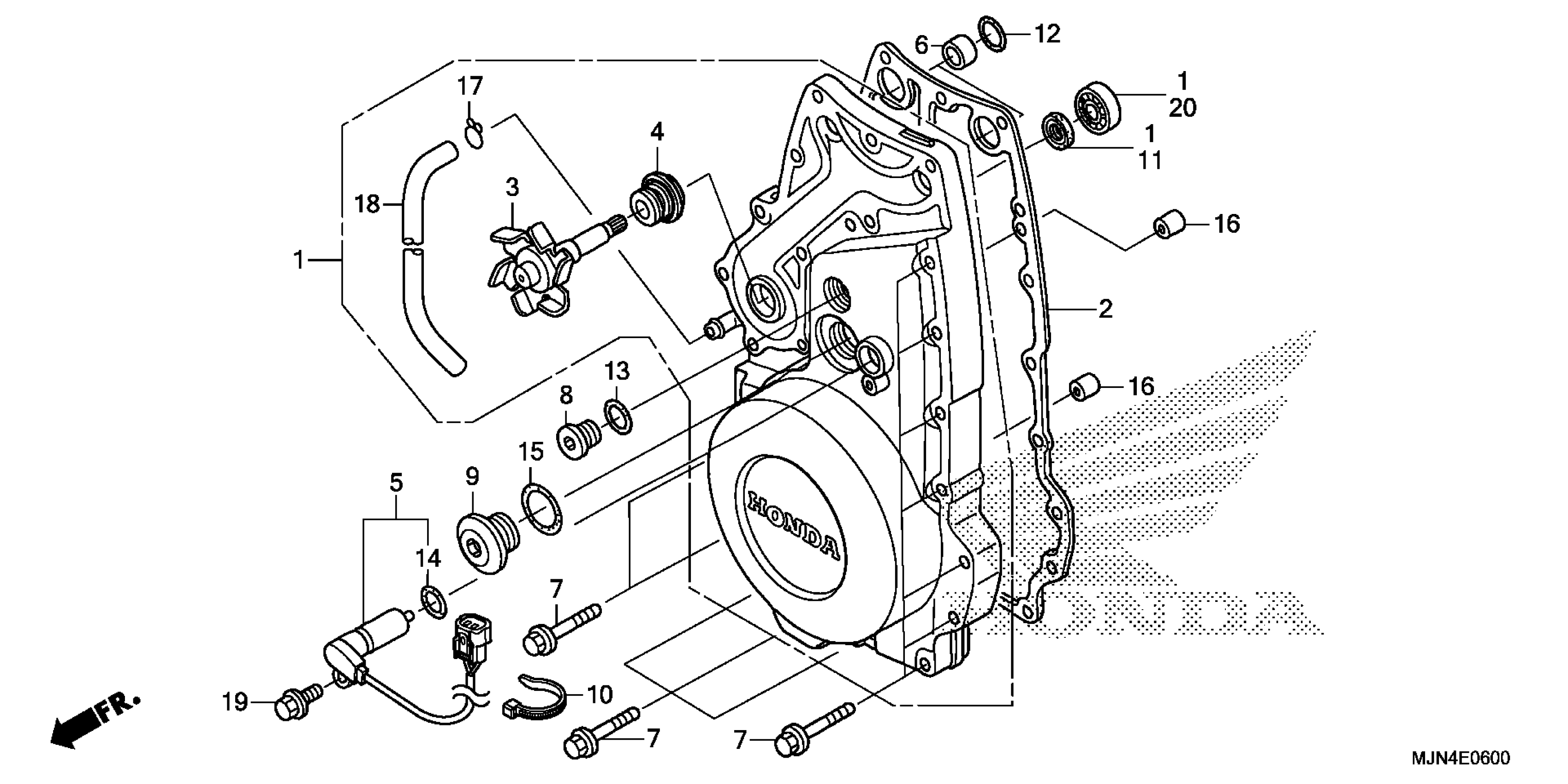

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 FRONT CRANKCASE COVER Diagram

COVER, FR.

11340-MJN-A00

$426.45

GASKET, FR. COVER This part replaces 11394-MCS-010.

11394-MCS-020

$18.82

IMPELLER, WATER PUMP

19210-MCS-000

$51.72

SEAL, MECHANICAL

19217-MAL-300

$47.62

GENERATOR ASSY., PULSE

30300-MJN-A01

$167.81

COLLAR, FR. FORK (OUTER)

51486-087-711

$5.30

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.75

CAP (14MM)

90084-KY2-000

$14.34

CAP

90087-KT7-000

$17.72

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

OIL SEAL (12X22X5)

91201-965-000

$3.77

O-RING (19.9X3.1)

91301-MCS-A11

$3.21

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.80

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80

PIN, DOWEL (8X14)

94301-08140

$2.04

CLIP, TUBE (B10)

95002-02100

$1.72

BULK HOSE, VACUUM (5.5X8000) (5.3X300)

95005-55008-10M

Unavailable

BOLT, FLANGE (6X18)

95701-06018-02

$2.06

BEARING, RADIAL BALL (6200)

96100-62003-00

$11.43
