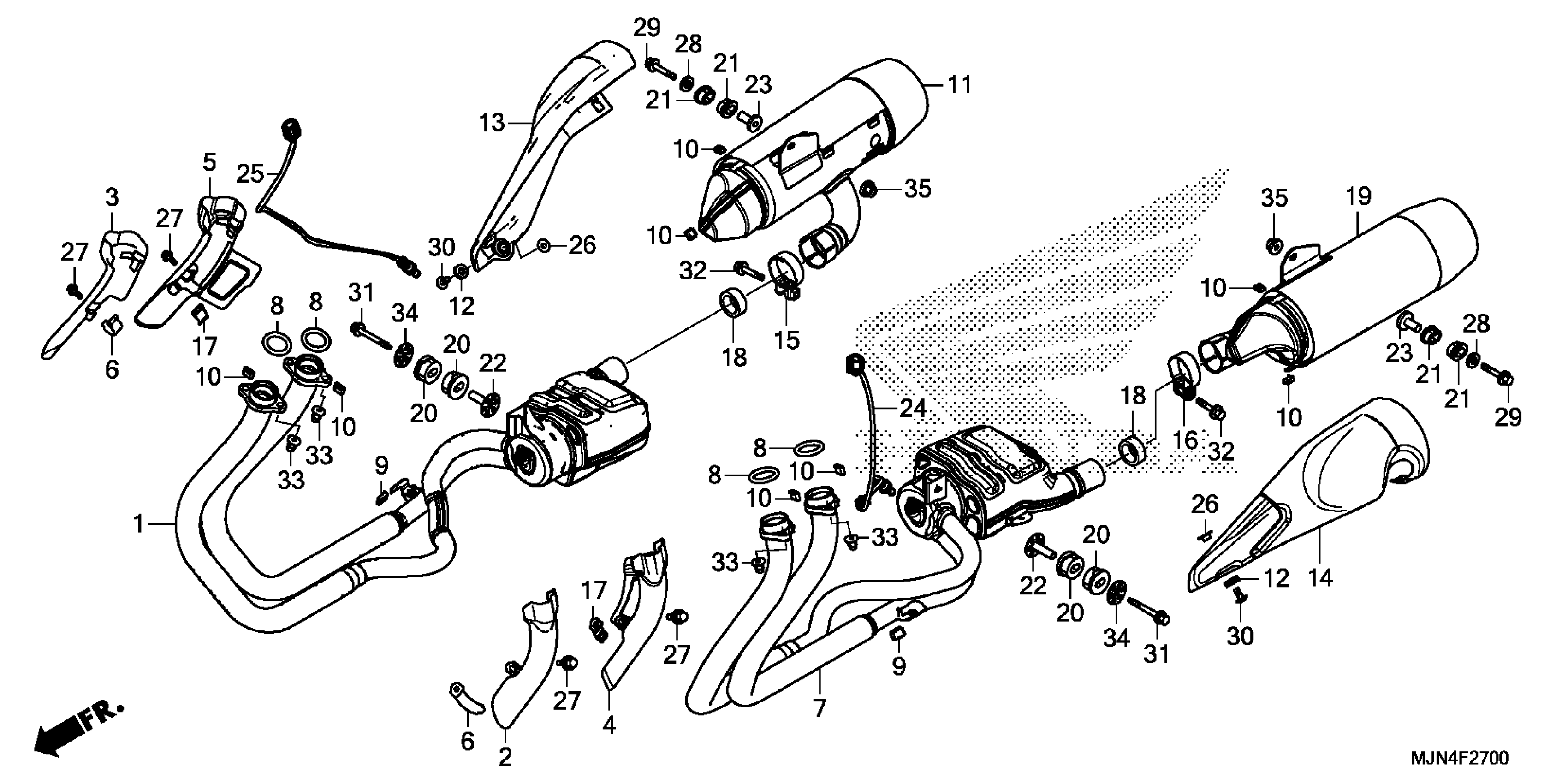

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 EXHAUST MUFFLER Diagram

#

Description
Price

1

PIPE, R. EX.

18150-MJN-A00

$917.93

2

COVER, L. FR. EX.

18151-MJN-A00

$28.44

3

COVER, R. FR. EX.

18152-MJN-A00

$28.44

4

COVER, L. RR. EX.

18153-MJN-A00

$37.94

5

COVER, R. RR. EX.

18154-MJN-A00

$37.94

6

BAND, PIPE COVER

18157-MJN-A00

$17.91

7

PIPE, L. EX.

18170-MJN-A00

$959.22

8

GASKET, EX. PIPE

18291-MN4-920

$5.07

9

RUBBER, SEAT STAY

18293-MFF-D00

$2.93

10

RUBBER, PROTECTOR

18293-MN0-000

$1.97

11

MUFFLER, R. (COO)

18310-MJN-305

$657.46

12

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

13

COVER, R. FR. MUFFLER

18353-MJN-A00

$67.82

14

COVER, L. FR. MUFFLER

18354-MJN-A00

$67.84

15

BAND, R. RR. MUFFLER

18375-MG7-000

$27.40

16

BAND, L. RR. MUFFLER

18376-MG7-000

$24.89

17

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.24

18

GASKET, MUFFLER

18392-MG7-750

$12.54

19

MUFFLER, L. (COO)

18410-MJN-305

$629.21

20

RUBBER, EX. PIPE MOUNTING

18422-MGE-000

$17.51

21

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$8.12

22

COLLAR, EX. PIPE MOUNTING

18423-MGE-000

$8.78

23

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$4.57

24

SENSOR, OXYGEN (1-3)

36531-MJN-A01

$220.00

25

SENSOR, OXYGEN (2-4)

36532-MJN-A01

$225.21

26

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.29

27

BOLT,FLANGE SH 6X This part replaces 90128-MGE-000.

90101-MJN-A00

$1.75

28

WASHER, PLAIN (8MM)

90101-ML0-720

$3.66

29

BOLT, SPECIAL FLANGE (8X50)

90109-MZ5-000

$6.19

30

SCREW, PAN (6X14)

90118-MR1-000

$2.95

31

BOLT, FLANGE (8X65)

90127-MGE-000

$3.47

32

BOLT, FLANGE (8X40)

90161-MCT-770

$2.04

33

NUT, CAP (7MM)

90304-MJ0-920

$4.71

34

WASHER (8.5X38)

90505-MGE-000

$2.06

35

NUT, FLANGE (8MM)

94050-08020

$1.85
