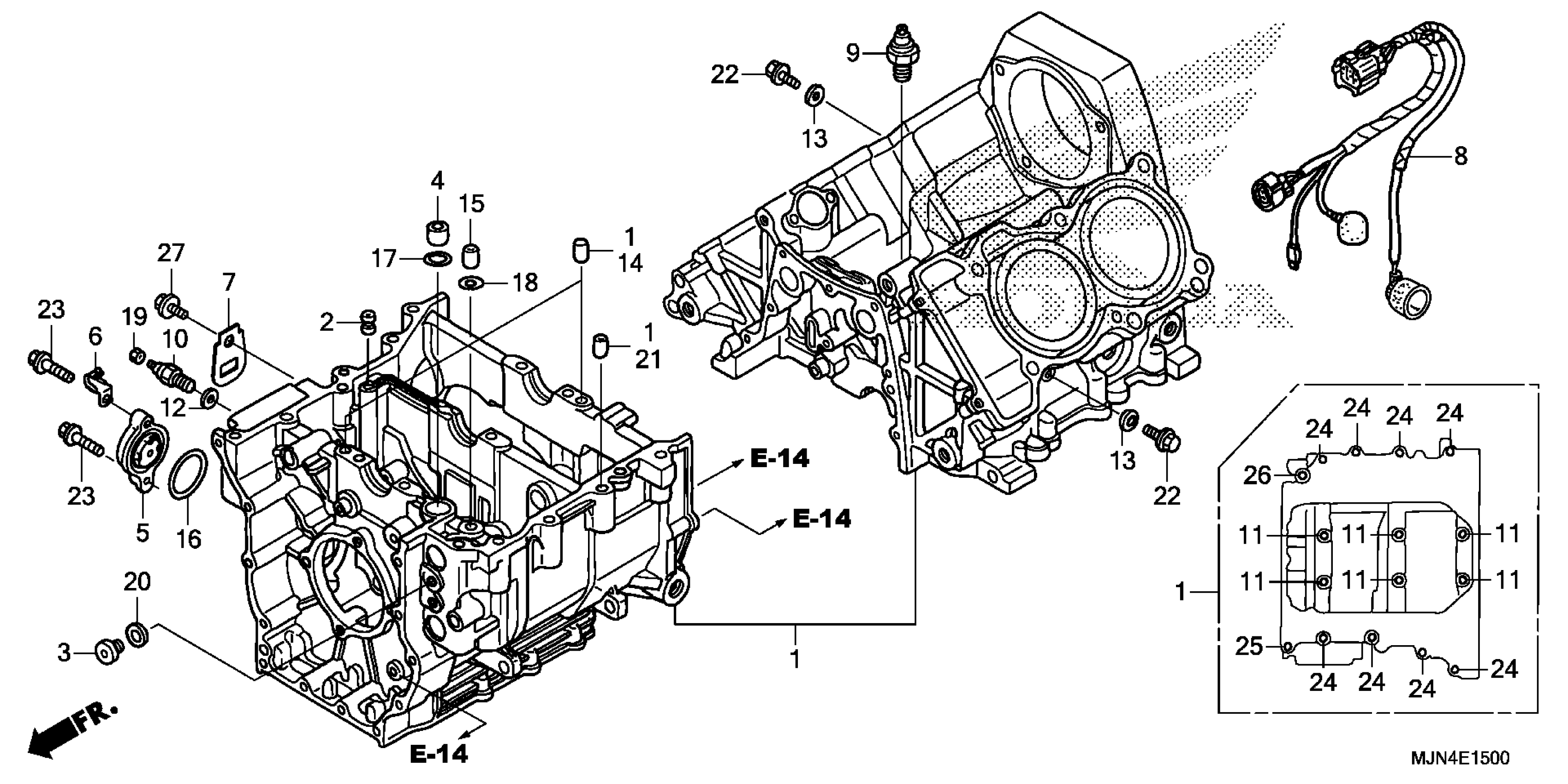

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Use up to Engine SN 5004183

11000-MJN-A00

$3,247.83

1

CRANKCASE SET | Use from Engine SN 5004184

11000-MJN-A01

$3,123.78

2

ORIFICE A (1.6MM)

11205-MCS-000

$3.19

3

BOLT, SEALING (14MM)

12206-MBW-000

$5.48

4

COLLAR (16X18X10)

15326-KBV-000

$4.04

5

FINDER, OIL LEVEL

15660-MJN-A00

$29.75

6

CLIP B, TUBE

16106-KW7-900

$2.80

7

STAY, HARNESS CLIP

30535-MJN-A00

$2.68

8

SUB-HARNESS, ENGINE

32109-MJN-A00

$84.30

9

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

10

SWITCH ASSY., NEUTRAL

35600-MK4-860

$16.96

11

BOLT, FLANGE (10X87)

90001-MCS-000

$4.77

12

WASHER, NEUTRAL

90443-MJ6-000

$1.75

13

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

14

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

15

PIN, DOWEL (10X10)

90702-MJ4-000

$2.97

16

O-RING (45X2.5) (ARAI)

91301-679-003

$4.77

17

O-RING (18X3) (ARAI)

91302-KE8-003

$2.38

18

O-RING (9.8X2.4)

91305-422-000

$2.36

19

NUT, FLANGE (4MM)

94050-04000

$1.12

20

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

21

PIN, DOWEL (10X16)

94301-10160

$2.24

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

23

BOLT, FLANGE (6X25)

95701-06025-02

$1.32

24

BOLT, FLANGE (8X60)

95701-08060-00

$1.38

25

BOLT, FLANGE (8X80)

95701-08080-00

$1.57

26

BOLT, FLANGE (8X120)

95701-08120-00

$2.59

27

BOLT, FLANGE (6X12) (NSHF)

90006-GHB-610

$1.75

27

BOLT, FLANGE (6X12)

95701-06012-02

$1.91
