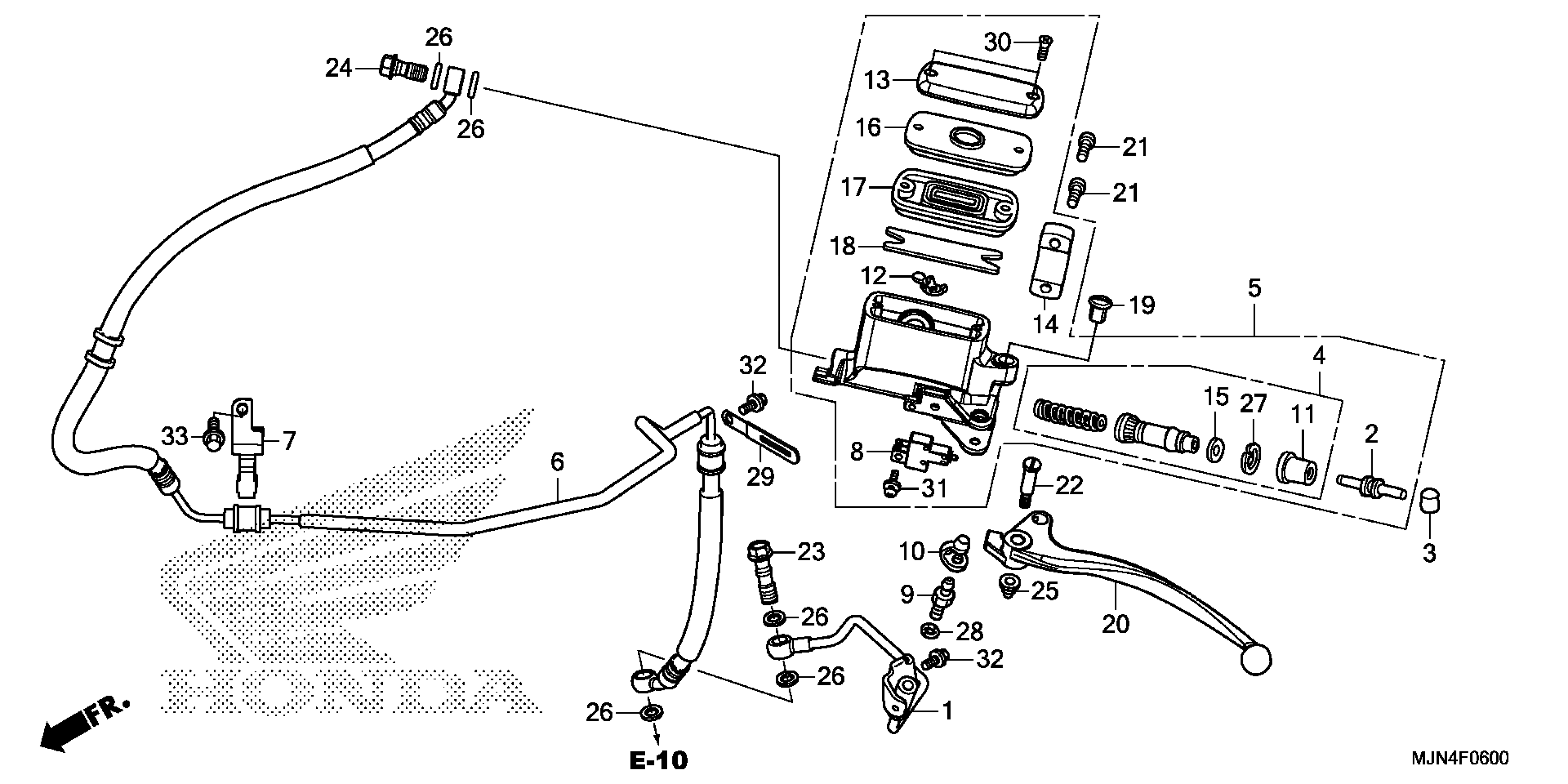

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

PIPE, BLEEDER

22870-MJN-A00

$56.96

2

ROD, PUSH

22884-MB0-006

$18.97

3

BUSH

22885-MB0-006

$11.88

4

PISTON SET, MASTER

22886-MCA-006

$31.02

5

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MJN-A01

$362.65

5

MASTER CYLINDER SUB-ASSY., CLUTCH (COO) (NISSIN)

22890-MJN-305

$360.54

6

PIPE, CLUTCH

22900-MJN-A00

$194.09

7

CLAMP, L. WIRE

35108-MGE-640

$4.97

8

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

9

SCREW, BLEEDER

43352-MG9-006

$5.03

10

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

Unavailable

10

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

Unavailable

10

CAP, BLEEDER

43353-461-771

Unavailable

11

BOOT

45504-410-003

$11.17

12

PROTECTOR

45512-MA6-006

$4.09

13

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

14

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$19.01

15

PLATE, STOPPER

45518-MB0-006

$1.79

16

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

17

DIAPHRAGM

45520-MM5-006

$13.87

18

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.28

19

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.29

19

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.29

20

LEVER, L. HANDLE (COO)

53178-MJN-305

$27.63

21

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

23

BOLT, OIL (10X34)

90145-MR8-014

$6.72

24

BOLT, OIL (10X22)

90145-MS9-612

$6.99

25

NUT, CAP (6MM)

90201-415-000

Unavailable

26

WASHER, OIL BOLT

90545-300-000

$5.79

27

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

28

O-RING

91355-MG9-006

$3.00

29

CLIP, CORD

91405-943-000

$3.15

30

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

30

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

31

SCREW-WASHER (4X12)

93893-04012-07

$1.32

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

32

BOLT, FLANGE (6X10)

96001-06010-00

$1.60

33

BOLT, FLANGE (6X12)

96001-06012-07

$1.79
