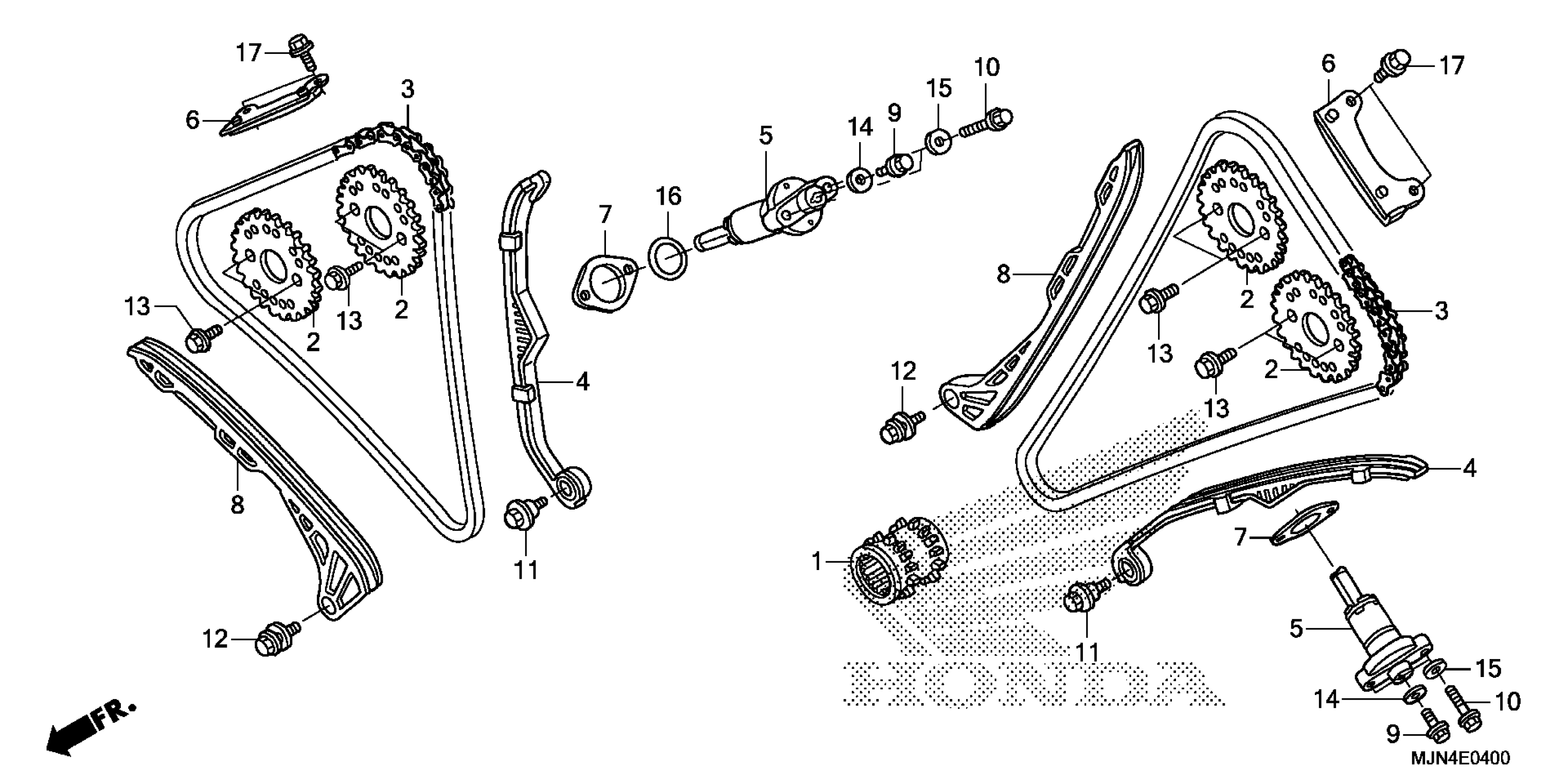

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 CAM CHAIN + TENSIONER Diagram

SPROCKET, TIMING (19T)

14312-MCS-000

$46.54

SPROCKET, CAM (38T)

14321-MCS-000

$40.72

CHAIN, CAM (138L) (BORG WARNER)

14401-MCT-003

$87.85

TENSIONER, CAM CHAIN

14510-MCS-000

$77.07

LIFTER, TENSIONER

14520-MCS-003

$91.57

GUIDE B, CAM CHAIN

14546-MCS-D80

$47.79

GASKET, TENSIONER LIFTER

14560-MCS-003

$4.45

GUIDE, CAM CHAIN

14620-MCS-000

$55.03

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.80

BOLT, TENSIONER PIVOT

90011-MCS-000

$3.03

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

BOLT, SPECIAL FLANGE (7X13)

90086-MZ8-H00

$2.98

WASHER, SEALING (6MM)

90442-397-000

$2.28

WASHER, SEALING (6MM)

90488-425-000

$2.28

O-RING (23X2.4) (ARAI)

91304-GC8-003

$2.92

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
