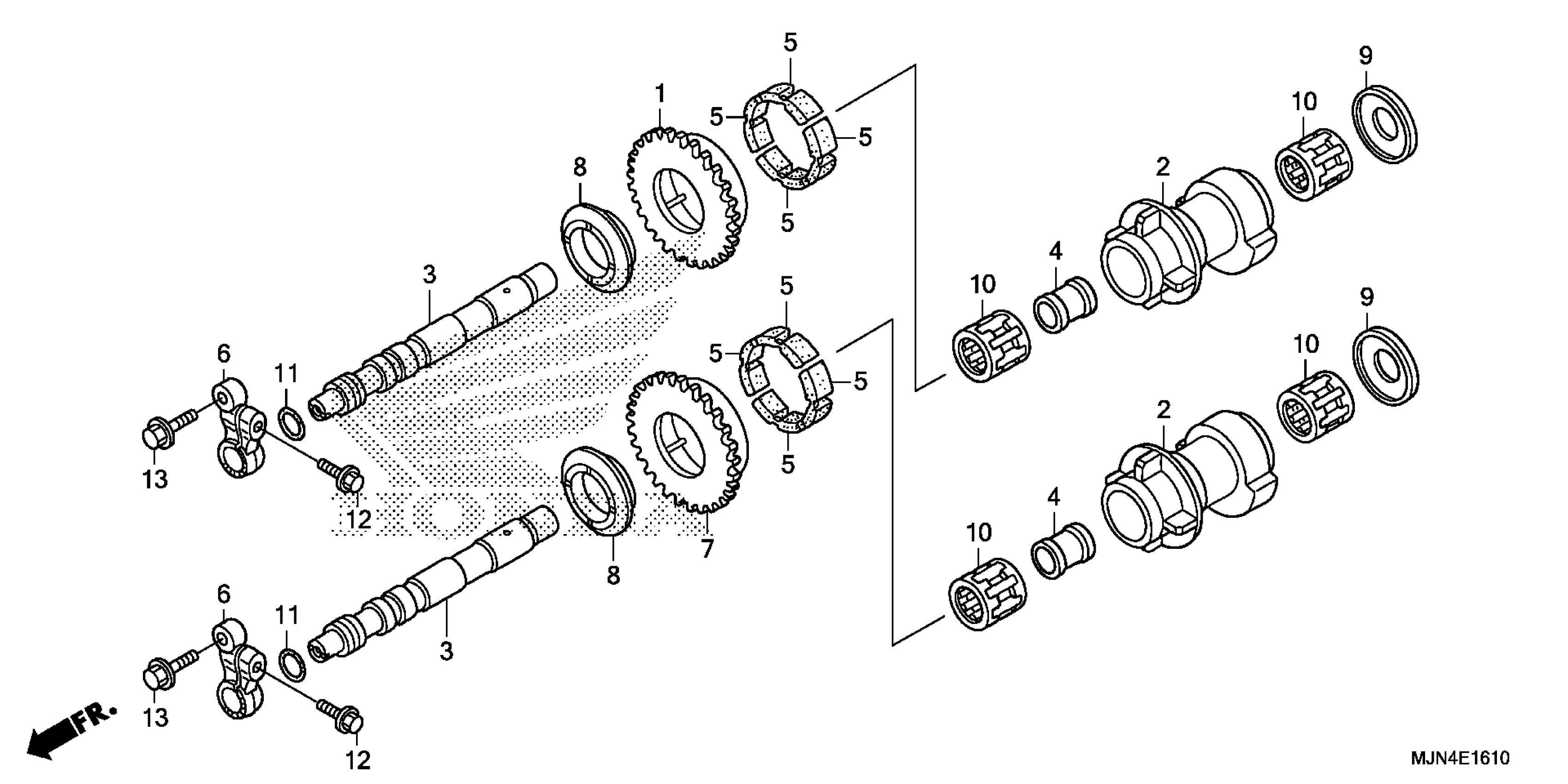

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 BALANCER SHAFT Diagram

GEAR, BALANCER (UPPER) (40T)

13421-MCS-000

$84.79

WEIGHT, BALANCER

13422-MCS-000

$147.41

SHAFT, BALANCER

13426-MCS-000

$132.84

COLLAR, DISTANCE

13433-MCS-000

$7.85

RUBBER, DAMPER

13435-MAT-000

$2.92

HOLDER, BALANCER SHAFT

13436-MAT-010

$46.85

GEAR, BALANCER (LOWER) (40T)

13521-MCS-000

$84.79

WASHER A, BALANCER SIDE

90457-MCS-000

$7.67

WASHER B, BALANCER SIDE

90458-MAT-000

$5.26

BEARING A, NEEDLE (18X27X26.8) (RED)

91014-MAT-003

$32.67

BEARING B, NEEDLE (18X27X26.8) (BLUE)

91015-MAT-003

$32.67

BEARING C, NEEDLE (18X27X26.8) (WHITE)

91016-MAT-003

$32.67

BEARING D, NEEDLE (18X27X26.8) (GREEN)

91017-MAT-003

$32.67

BEARING E, NEEDLE (18X27X26.8) (YELLOW)

91018-MAT-003

$32.67

O-RING (15X2.5)

91302-377-000

$5.31

BOLT, FLANGE (6X18)

95701-06018-02

$2.16

BOLT, FLANGE (8X25)

95701-08025-02

$2.17
