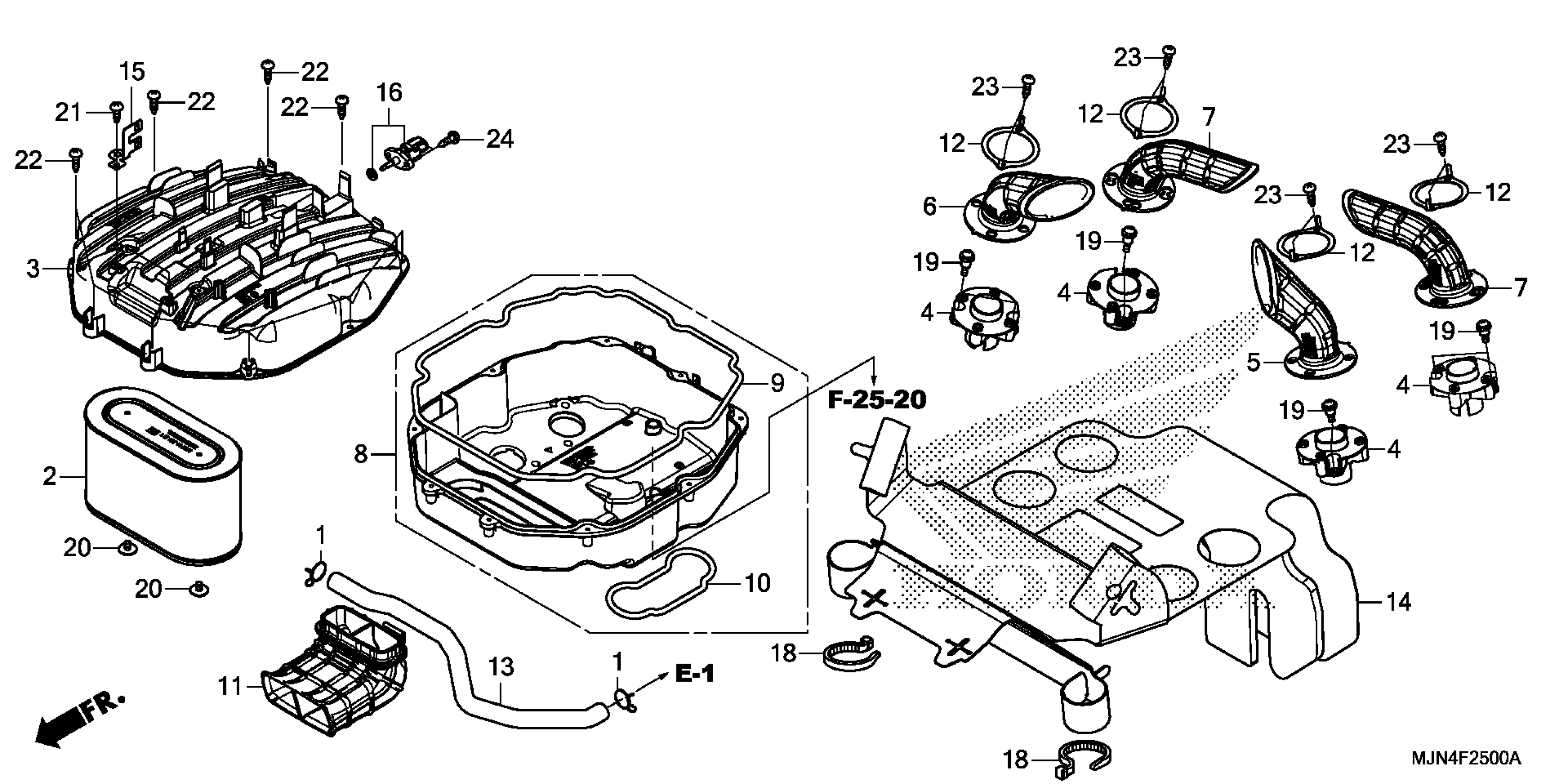

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, DRAIN TUBE (B20)

15772-GB5-670

$3.09

2

ELEMENT, AIR CLEANER

17210-MJN-A00

$53.46

3

COVER, AIR CLEANER

17221-MJN-A00

$114.41

4

BASE, FUNNEL

17225-MJN-A00

$13.75

5

FUNNEL, AIR (#1)

17226-MJN-A00

$20.06

6

FUNNEL, AIR (#2)

17227-MJN-A00

$25.28

7

FUNNEL, AIR & (#3) (#4)

17228-MJN-A00

$25.28

8

HOUSING, AIR CLEANER

17231-MJN-A00

$135.91

9

SEAL A, AIR CLEANER HOUSING

17232-MJN-A00

$8.96

10

SEAL B, AIR CLEANER HOUSING

17233-MJN-A00

$3.33

11

DUCT, AIR CLEANER IN.

17253-MCS-G01

$28.14

12

PLATE SET, AIR FUNNEL This part replaces 17254-MCS-G00.

17254-MCS-305

$4.56

13

TUBE, BREATHER

17365-MCS-G00

$15.28

14

RUBBER, HEAT GUARD

19130-MJN-A00

$87.90

14

RUBBER, HEAT GUARD

19130-MJN-A01

$89.48

15

STAY, GRIP HEATER CONNECTOR

35550-MJN-A00

$5.41

16

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

17

CLAMP, BRAKE PIPE

90651-MFL-D01

$2.88

18

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.39

19

SCREW, PAN (5MM) | Use from Frame SN EK001229

91508-MGP-D00

$3.42

19

SCREW, PAN (5MM) | Use up to Frame SN EK001228

91508-MM5-000

$3.80

20

SCREW-WASHER (5X8)

93894-05008-07

$1.00

21

SCREW, TAPPING (5X12)

93903-25210

$0.75

22

SCREW, TAPPING (5X20)

93903-25480

$0.61

23

SCREW, TAPPING (5X20)

93903-25480

$0.61

24

SCREW, TAPPING (5X16)

93911-25420

$0.88
