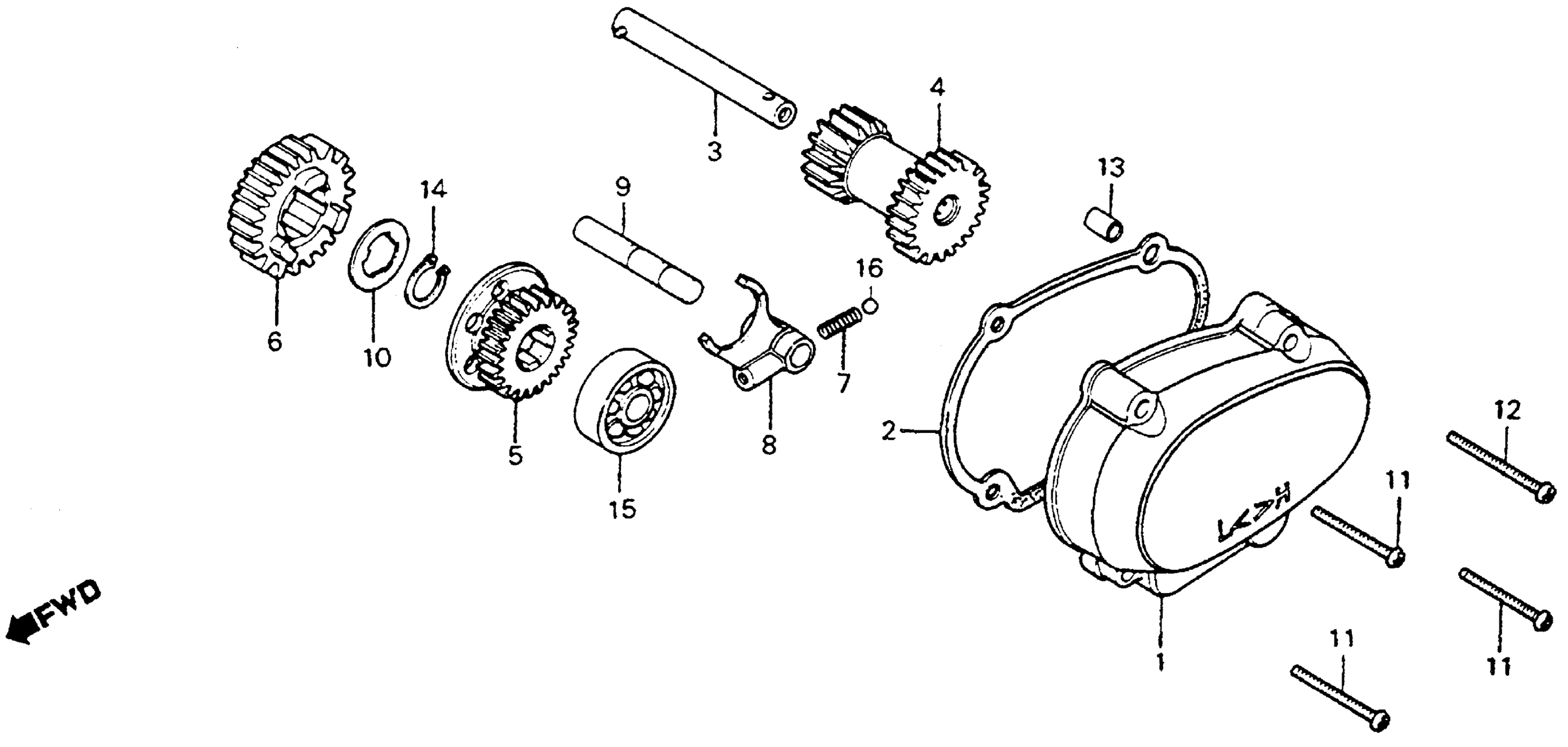

Honda CT90K6A MOTORCYCLE, JPN, VIN# CT90-1600001 SUB-TRANSMISSION Diagram

#

Description
Price

1

COVER, SUB-TRANSMISSION (NOT AVAILABLE)

11371-053-020

Unavailable

2

GASKET This part replaces 11693-053-030.

11693-459-962

$6.72

2

GASKET This part replaces 11693-053-306.

11693-459-962

$6.72

2

GASKET This part replaces 11693-459-960.

11693-459-962

$6.72

3

COUNTERSHAFT, SUB-TRANSMISSION (NOT AVAILABLE)

23900-053-000

Unavailable

4

GEAR, SUB-TRANSMISSION COUNTERSHAFT (16X22T) (NOT AVAILABLE)

23910-053-000

$190.15

5

GEAR, SUB-TRANSMISSION LOW (22T) (NOT AVAILABLE)

23921-053-010

$26.55

6

GEAR, SUB-TRANSMISSION HIGH (28T) (NOT AVAILABLE)

23931-053-010

Unavailable

7

SPRING, BALL SETTING (NOT AVAILABLE)

24271-053-010

Unavailable

8

FORK, SUB-TRANSMISSION GEARSHIFT

24801-053-000

Unavailable

9

SHAFT, GEARSHIFT FORK

24811-053-000

Unavailable

10

WASHER, SPLINE (20MM)

90456-053-000

Unavailable

11

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

11

SCREW, PAN (6X30)

93500-06030-0A

$1.49

12

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

12

SCREW, PAN (6X40)

93500-06040-0A

$1.49

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

15

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

15

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

16

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
