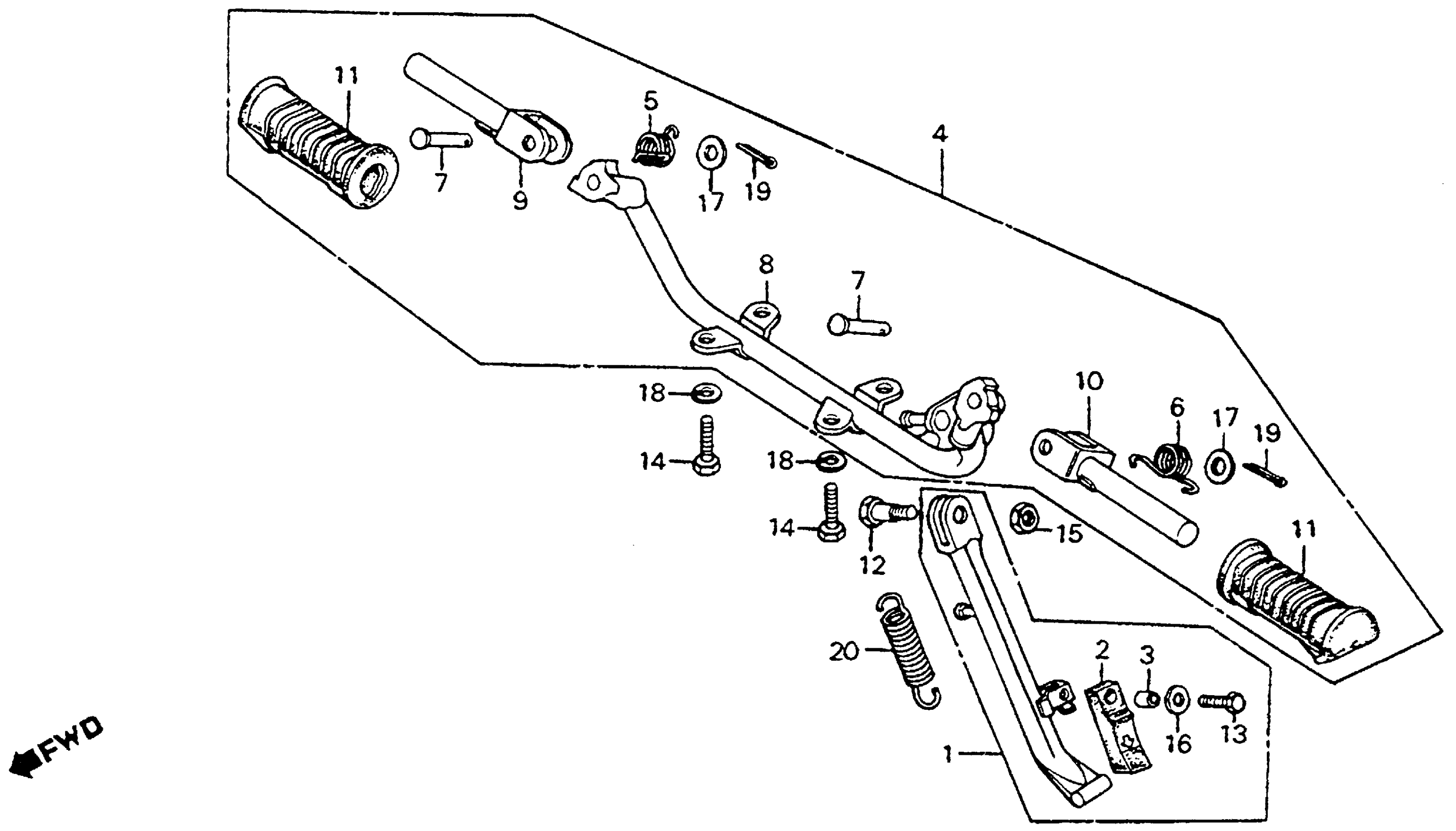

Honda CT90K6A MOTORCYCLE, JPN, VIN# CT90-1600001 STEP Diagram

#

Description
Price

1

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-102-730

Unavailable

2

RUBBER, STAND

50548-324-760

$11.45

3

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.50

4

BAR ASSY., STEP *NH1* (BLACK)

50600-102-000B

Unavailable

5

SPRING, R. STEP RETURN (NOT AVAILABLE)

50601-053-000

Unavailable

6

SPRING, L. STEP RETURN (NOT AVAILABLE)

50602-053-000

Unavailable

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.06

7

PIN, STEP BAR JOINT

50603-033-010

$3.06

8

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-077-010B.

50610-102-790ZA

Unavailable

8

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-102-790ZA

Unavailable

9

ARM, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50630-102-000B

Unavailable

10

ARM, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50640-102-000B

Unavailable

11

RUBBER, STEP

50661-110-000

$9.88

12

BOLT, SIDE STAND PIVOT

90108-223-000

$4.89

13

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

13

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

14

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

14

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

15

NUT, HEX. (10MM)

94002-10000-0S

$4.20

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM)

94101-06800

Unavailable

17

WASHER, PLAIN (8MM)

94101-08000

Unavailable

18

WASHER, SPRING (8MM)

94111-08000

Unavailable

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

19

PIN, COTTER (1.6X25)

94201-16250

$1.01

20

SPRING, SIDE STAND This part replaces 95014-72201.

95014-72204

$2.87

20

SPRING, SIDE STAND This part replaces 95014-72203.

95014-72204

$2.87

20

SPRING, SIDE STAND

95014-72204

$2.87
