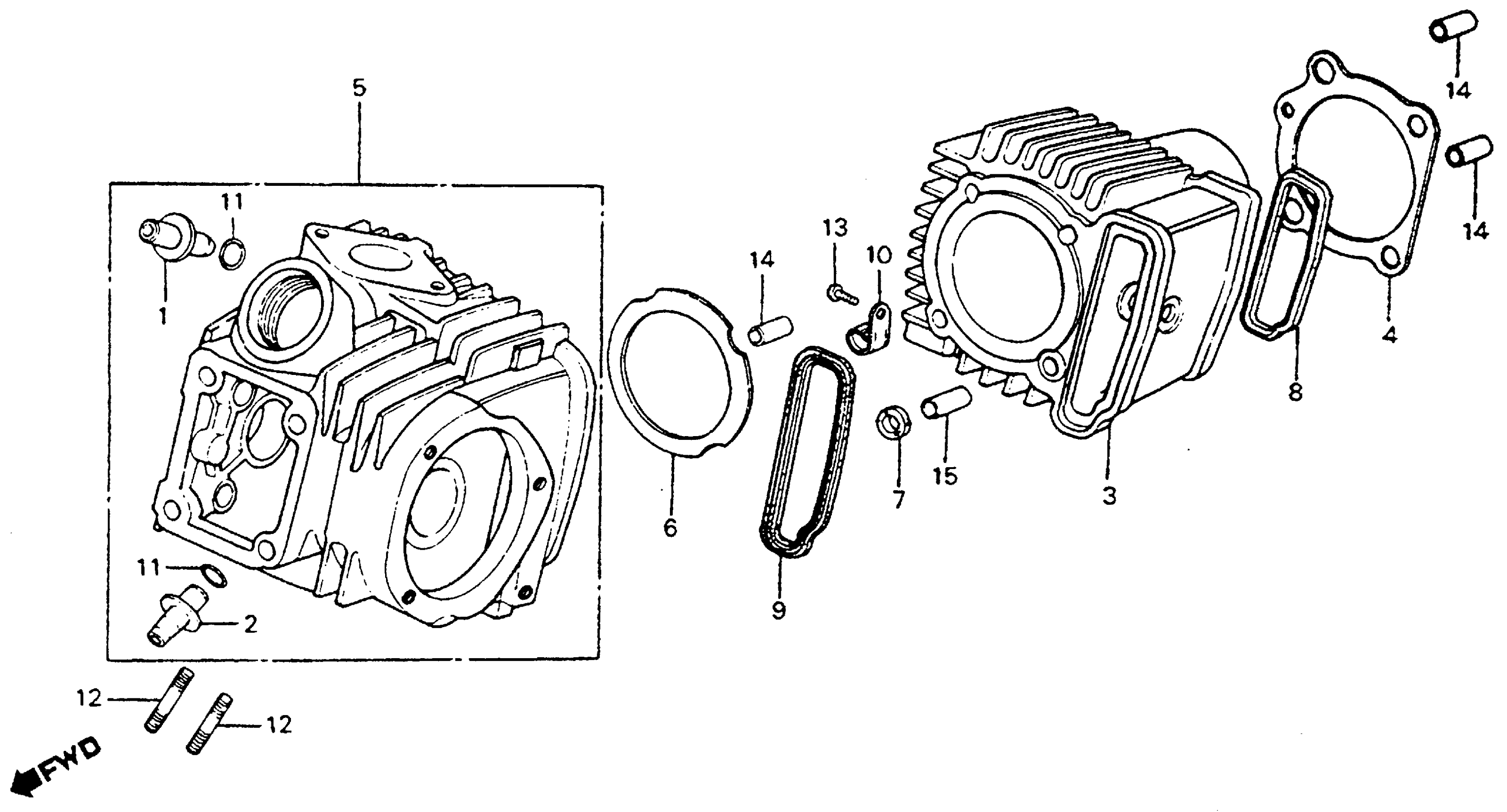

Honda CT90K6A MOTORCYCLE, JPN, VIN# CT90-1600001 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-VM6-000.

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12021-028-340.

12021-943-000

Unavailable

1

GUIDE, VALVE This part replaces 12201-028-340.

12021-943-000

Unavailable

1

GUIDE, VALVE

12021-943-000

Unavailable

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-330.

12021-128-405

Unavailable

2

GUIDE, IN./EX. VALVE This part replaces 12023-028-340.

12021-128-405

Unavailable

2

GUIDE, IN./EX. VALVE This part replaces 12232-028-790.

12021-128-405

Unavailable

2

GUIDE, IN./EX. VALVE

12021-128-405

Unavailable

2

GUIDE, IN./EX. VALVE This part replaces 12023-943-000.

12021-128-405

Unavailable

3

CYLINDER This part replaces 12100-056-790.

12100-028-791

Unavailable

3

CYLINDER This part replaces 12100-028-790.

12100-028-791

Unavailable

3

CYLINDER

12100-028-791

Unavailable

3

CYLINDER This part replaces 12100-056-791.

12100-028-791

Unavailable

4

GASKET, CYLINDER This part replaces 12191-028-020.

12191-121-630

Unavailable

4

GASKET, CYLINDER This part replaces 12191-028-306.

12191-121-630

Unavailable

4

GASKET, CYLINDER

12191-121-630

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-790.

12200-028-792

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-791.

12200-028-792

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-028-792

Unavailable

6

GASKET, CYLINDER HEAD

12251-028-790

Unavailable

7

GASKET, CYLINDER STUD

12261-105-690

$7.41

8

GASKET A, CAM CHAIN CHAMBER

12901-028-020

Unavailable

9

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-105-690.

12902-121-710

Unavailable

9

GASKET B, CAM CHAIN CHAMBER

12902-121-710

Unavailable

10

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

11

O-RING (9.5X1.6)

91306-028-000

$2.80

12

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.48

12

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.48

12

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.48

12

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.48

12

BOLT, STUD (6X18)

92900-06018-0B

$1.48

13

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.93

14

PIN A, DOWEL (10X14)

94301-10140

$2.25

15

PIN A, DOWEL (10X20)

94301-10200

$2.32
