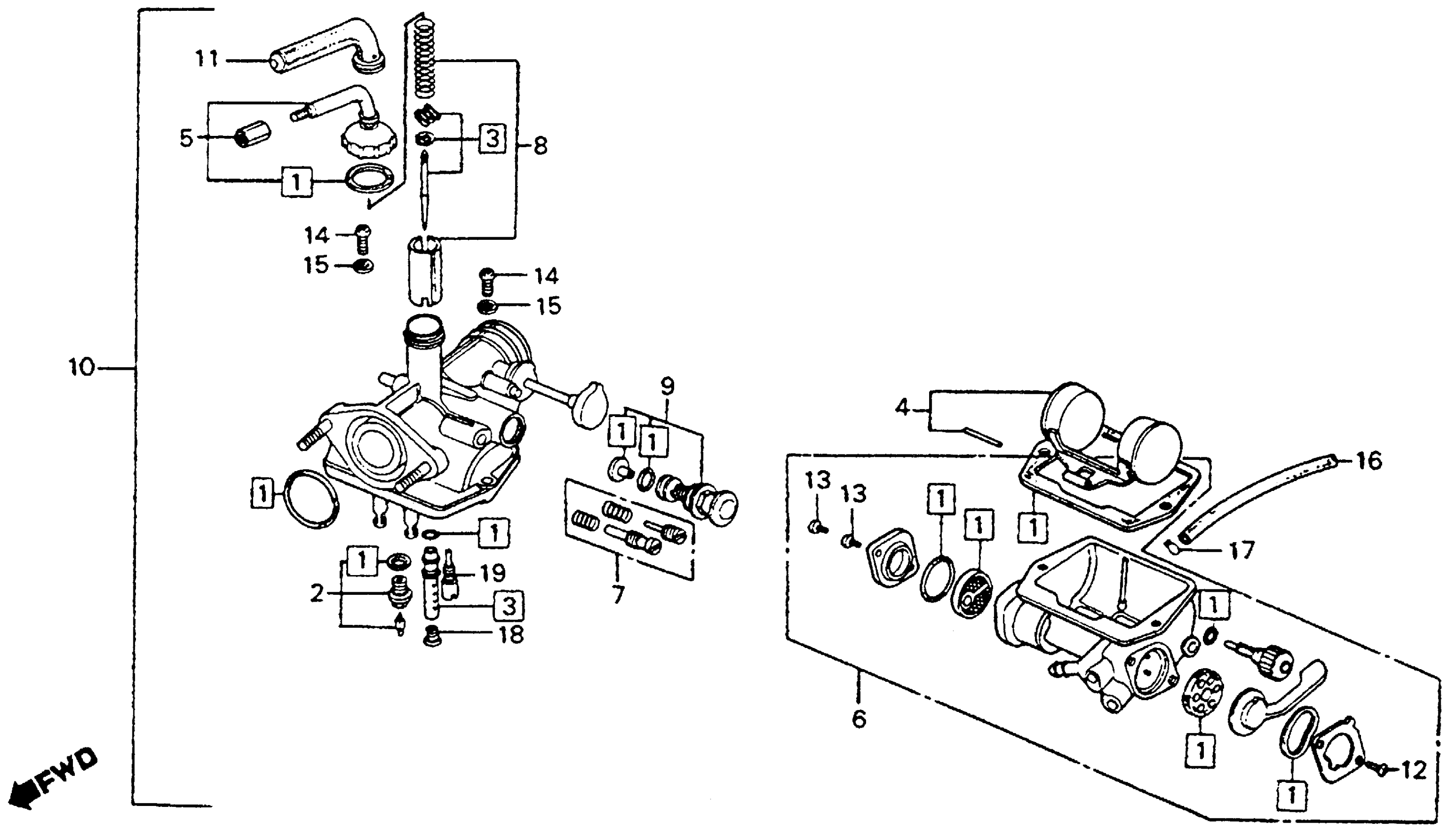

Honda CT90K6A MOTORCYCLE, JPN, VIN# CT90-1600001 CARBURETOR K6-77 Diagram

#

Description
Price

1

GASKET SET

16010-102-305

$32.41

1

GASKET SET This part replaces 16010-102-700.

16010-102-305

$32.41

2

VALVE SET, FLOAT This part replaces 16011-070-004.

16011-355-004

$20.89

2

VALVE SET, FLOAT

16011-355-004

$20.89

3

NEEDLE SET, JET

16012-102-004

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

4

FLOAT SET

16013-116-700

$28.61

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

5

TOP SET (NOT AVAILABLE)

16014-918-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-102-700

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET A, THROTTLE (NOT AVAILABLE)

16022-046-004

Unavailable

9

JOINT SET, FUEL (NOT AVAILABLE)

16037-077-004

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-102-702

Unavailable

11

CAP, CABLE SEALING This part replaces 16118-121-004.

16118-121-014

Unavailable

11

CAP, CABLE SEALING

16118-121-014

Unavailable

12

SCREW, PAN (3X5)

93500-03005-0A

$1.49

13

SCREW, PAN (3X6)

93500-03006-0A

$1.49

14

SCREW, PAN (4X12)

93500-04012-0A

$1.49

15

WASHER, SPRING (4MM)

94111-04000

$1.49

16

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

JET, MAIN (#62) (NOT AVAILABLE)

99114-077-0620

Unavailable

19

JET, SLOW (#35)

99124-303-0350

Unavailable

19

JET, SLOW (#35) This part replaces 99145-03504.

99124-303-0350

Unavailable
