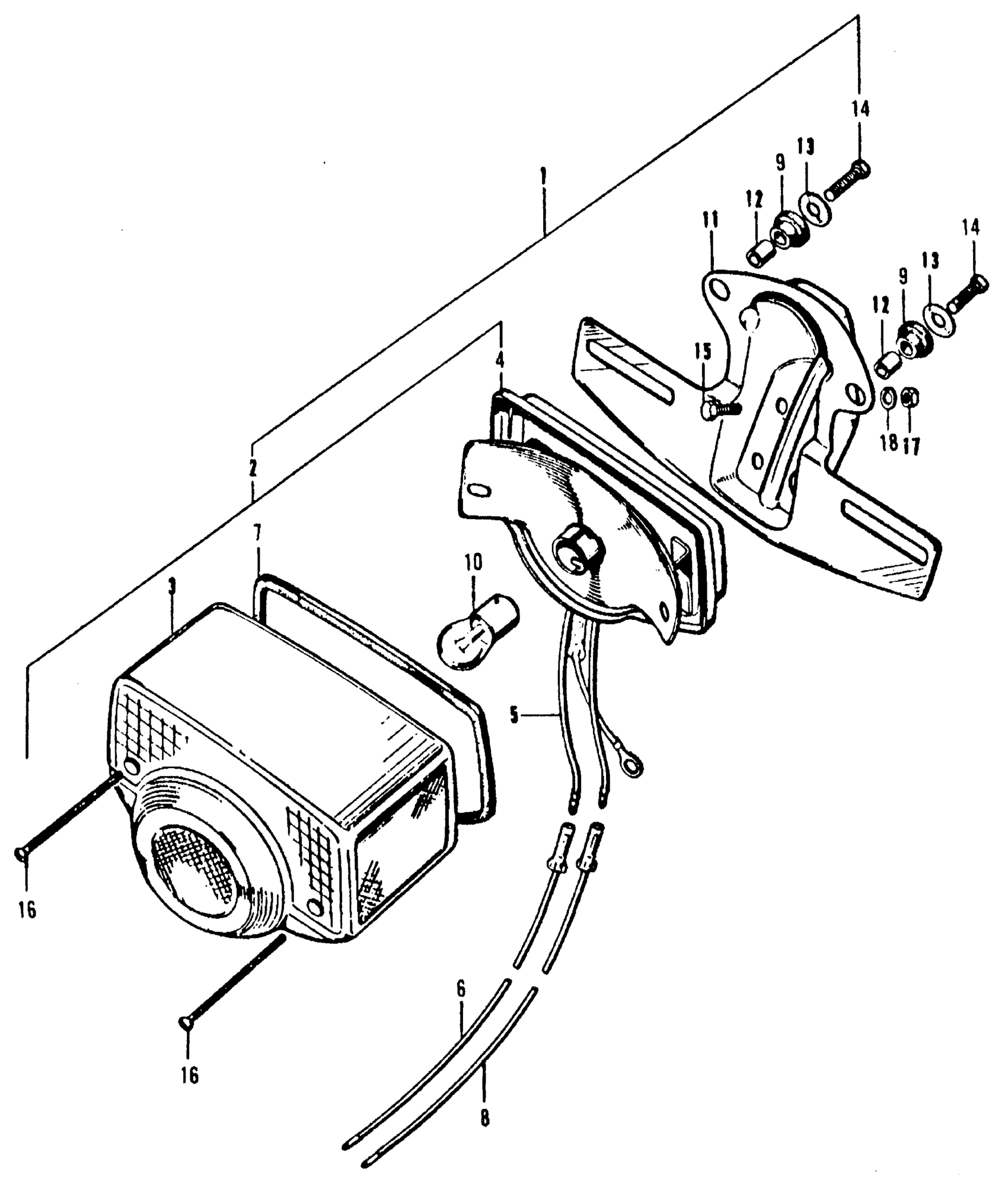

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 TAILLIGHT K1-K3 Diagram

#

Description
Price

1

TAILLIGHT ASSY. *NH1* (BLACK) (NOT AVAILABLE)

33700-077-670B

Unavailable

2

TAILLIGHT, UNIT (NOT AVAILABLE)

33701-077-671

Unavailable

3

LENS, TAILLIGHT

33702-077-671

$36.90

4

BASE, TAILLIGHT

33703-077-671

Unavailable

5

WIRE, TAILLIGHT

33708-077-671

Unavailable

6

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-028-670

Unavailable

7

GASKET, TAILLIGHT

33709-077-671

$3.41

8

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)

33713-028-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

10

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

10

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

10

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

11

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-077-670B

Unavailable

12

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

13

WASHER (18MM)

90581-831-650

$1.87

14

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

14

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

SCREW, PAN (4X50)

93500-04050-0B

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
