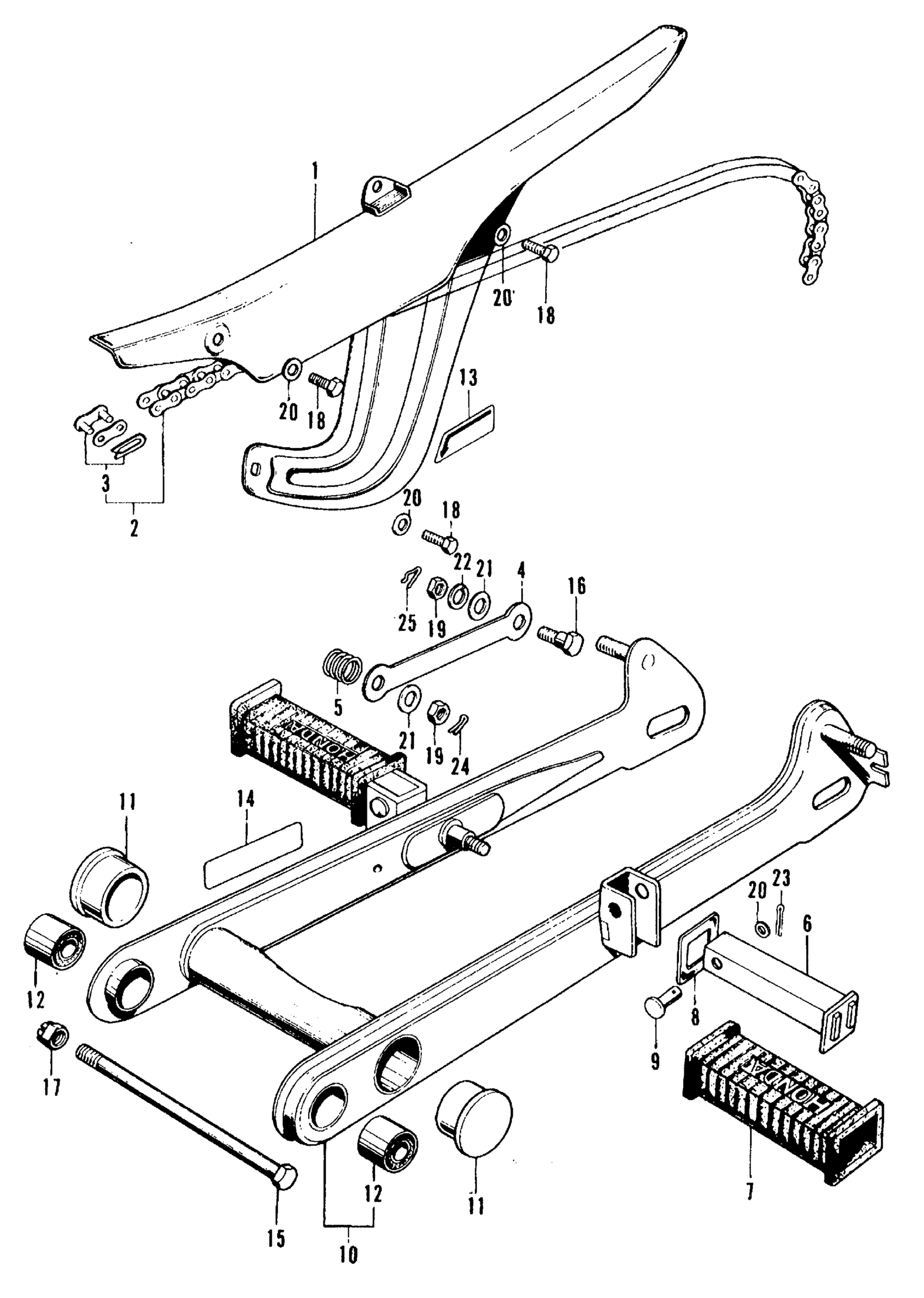

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 SWINGARM + CHAIN CASE + PILLION STEP Diagram

#

Description
Price

1

CASE, DRIVE CHAIN This part replaces 40510-077-010Z.

40510-077-405

Unavailable

1

CASE, DRIVE CHAIN *YR6* (MARS ORANGE) (NOT AVAILABLE)

40510-077-010JL

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-053-010.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-102-731.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-359-673.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-459-671.

405W3-KA8-505

Unavailable

3

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-028-005

Unavailable

3

MASTER LINK This part replaces 40531-205-003.

40531-205-013

Unavailable

3

MASTER LINK (TAKASAGO) (NOT AVAILABLE) This part replaces 40531-205-005.

40531-028-005

Unavailable

3

MASTER LINK

40531-205-013

Unavailable

3

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

4

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

5

SPRING, STOPPER ARM

43434-250-000

$2.00

6

BAR B, PILLION STEP | (Optional). This part replaces 50701-024-010.

95015-62000

$30.68

6

BAR B, PILLION STEP | (Optional). This part replaces 50715-283-000.

95015-62000

$30.68

6

BAR B, PILLION STEP | (Optional).

95015-62000

$30.68

7

RUBBER, PILLION STEP | (Optional). This part replaces 50705-024-000.

95011-31000

$7.16

7

RUBBER, PILLION STEP | (Optional). This part replaces 50731-024-000.

95011-31000

$7.16

7

RUBBER, PILLION STEP | (Optional).

95011-31000

$7.16

8

WASHER, FOOTPEG | (Optional). This part replaces 50712-024-000.

95015-91000

$1.31

8

WASHER, FOOTPEG | (Optional).

95015-91000

$1.31

9

PIN A, PILLION STEP | (Optional). This part replaces 50715-024-000.

95015-81000

$2.21

9

PIN A, PILLION STEP | (Optional).

95015-81000

$2.21

10

SWINGARM (NOT AVAILABLE)

52100-077-000Z

Unavailable

11

CAP *Y3L* This part replaces 52161-001-010XL.

52161-001-505

Unavailable

12

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

14

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

15

BOLT, SWINGARM PIVOT This part replaces 90121-025-000.

90121-033-000

Unavailable

15

BOLT, SWINGARM PIVOT

90121-033-000

Unavailable

16

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

16

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

17

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

23

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN, COTTER (2.0X15)

94201-20150

$1.49

25

PIN, LOCK (8MM)

94251-08000

$1.49
