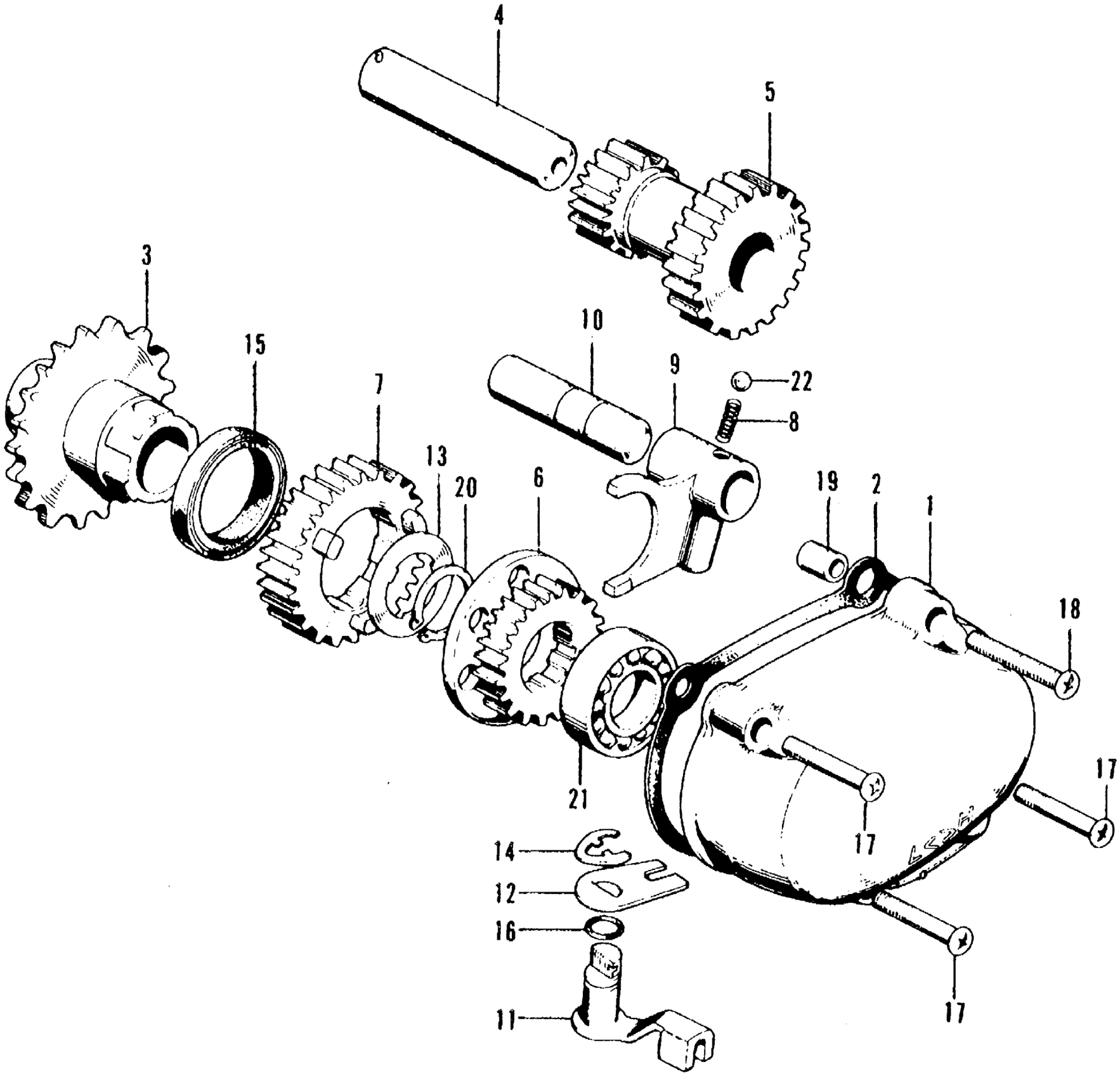

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 SUB-TRANSMISSION Diagram

COVER, SUB-TRANSMISSION (NOT AVAILABLE)

11371-053-020

Unavailable

GASKET This part replaces 11693-053-030.

11693-459-962

$6.72

GASKET This part replaces 11693-053-306.

11693-459-962

$6.72

GASKET This part replaces 11693-459-960.

11693-459-962

$6.72

SPROCKET, DRIVE (15T)

23800-053-000

Unavailable

COUNTERSHAFT, SUB-TRANSMISSION (NOT AVAILABLE)

23900-053-000

Unavailable

GEAR, SUB-TRANSMISSION COUNTERSHAFT (NOT AVAILABLE)

23910-053-010

Unavailable

GEAR, SUB-TRANSMISSION LOW (22T) (NOT AVAILABLE)

23921-053-010

$26.55

GEAR, SUB-TRANSMISSION HIGH (28T) (NOT AVAILABLE)

23931-053-010

Unavailable

SPRING, BALL SETTING (NOT AVAILABLE)

24271-053-010

Unavailable

FORK, SUB-TRANSMISSION GEARSHIFT

24801-053-000

Unavailable

SHAFT, GEARSHIFT FORK

24811-053-000

Unavailable

SHAFT, SUB-CHANGE (NOT AVAILABLE)

24821-053-030

Unavailable

ARM, SUB-CHANGE

24831-053-010

Unavailable

WASHER, SPLINE (20MM)

90456-053-000

Unavailable

CIRCLIP (8.6MM)

90601-053-010

Unavailable

OIL SEAL (31X43X8) This part replaces 91202-053-000.

91202-459-771

$9.80

OIL SEAL (31X43X8) This part replaces 91202-053-005.

91202-459-771

$9.80

OIL SEAL (31X43X8)

91202-459-771

$9.80

O-RING (7.5X15)

91301-053-000

$2.92

O-RING (7.5X1.5)

91302-HB3-004

$2.18

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

SCREW, PAN (6X30)

93500-06030-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
