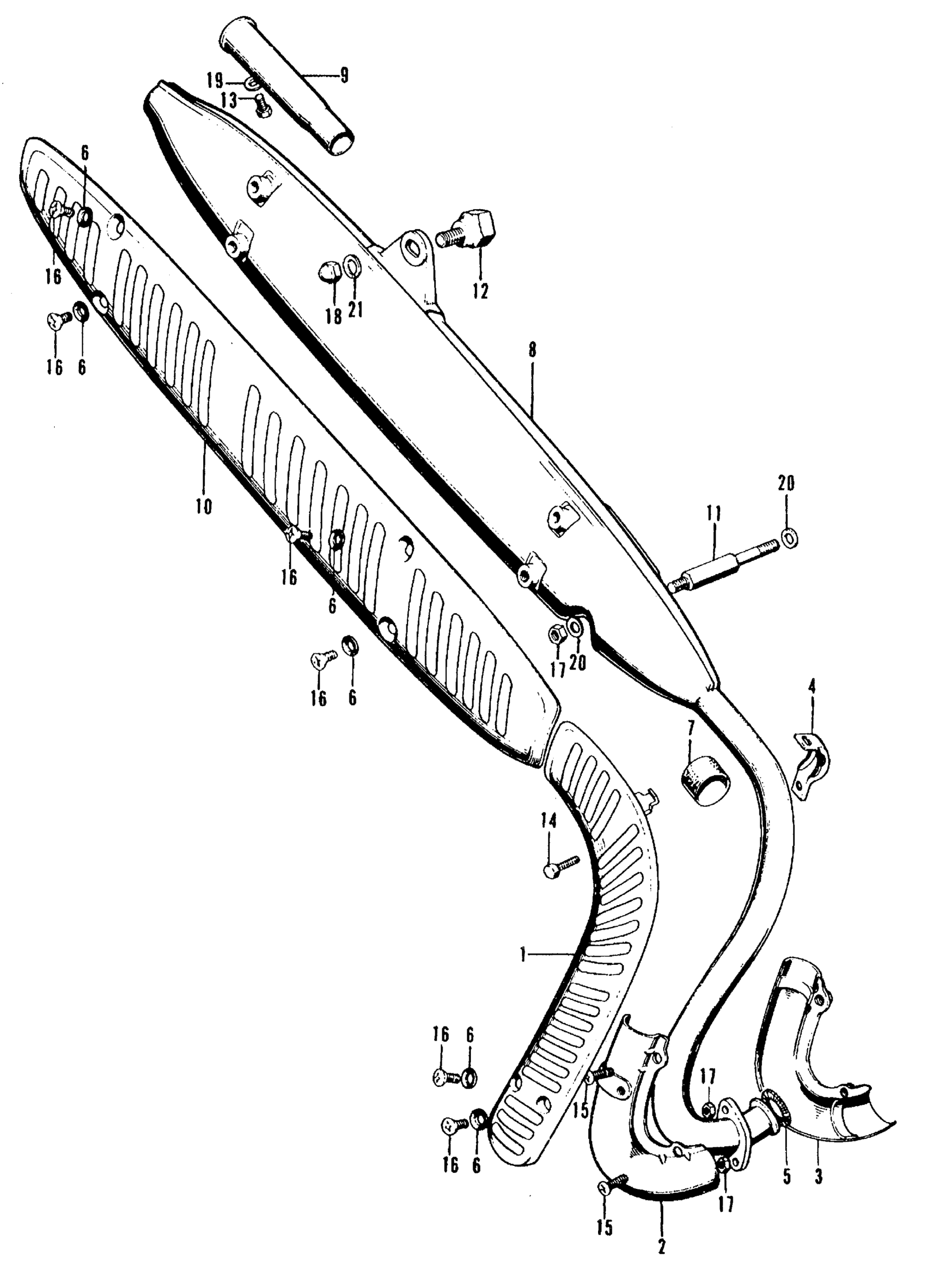

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 MUFFLER Diagram

#

Description
Price

1

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18241-033-000

Unavailable

2

COVER, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 234852

18241-102-000

Unavailable

3

COVER B, EX. PIPE (NOT AVAILABLE)

18242-102-000

Unavailable

4

BAND, PROTECTOR SETTING

18281-011-000

$6.17

5

GASKET, EX. PIPE This part replaces 18291-028-000.

18291-028-306

$7.30

5

GASKET, EX. PIPE

18291-028-306

$7.30

6

GASKET, PROTECTOR

18292-167-890

$1.88

6

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.88

7

GASKET, MUFFLER This part replaces 18293-035-000.

18391-HB7-000

$11.62

7

GASKET, MUFFLER

18391-HB7-000

$11.62

8

MUFFLER ASSY., EX. This part replaces 18300-077-010.

183A0-077-010

Unavailable

9

PIPE, EX. DIFFUSER

18311-077-020

$26.81

10

PROTECTOR, MUFFLER (NOT AVAILABLE)

18361-033-000

Unavailable

10

PROTECTOR, MUFFLER This part replaces 18361-102-010.

18361-459-600

Unavailable

10

PROTECTOR, MUFFLER This part replaces 18361-102-305.

18361-459-600

Unavailable

11

BOLT, FR. MUFFLER (NOT AVAILABLE)

90111-077-000

Unavailable

12

SCREW, MUFFLER CLAMP

90165-077-000

Unavailable

13

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

13

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

14

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

15

SCREW, PAN (5X12) | Use from Frame SN 234852

93500-05012-0A

$1.49

15

SCREW, PAN (6X5) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 234851

93500-06005

Unavailable

16

SCREW, OVAL (6X10) This part replaces 93700-06010.

93700-06010-0A

$1.49

16

SCREW, OVAL (6X10)

93700-06010-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, CAP (8MM)

94021-08020-0S

$1.82

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49
