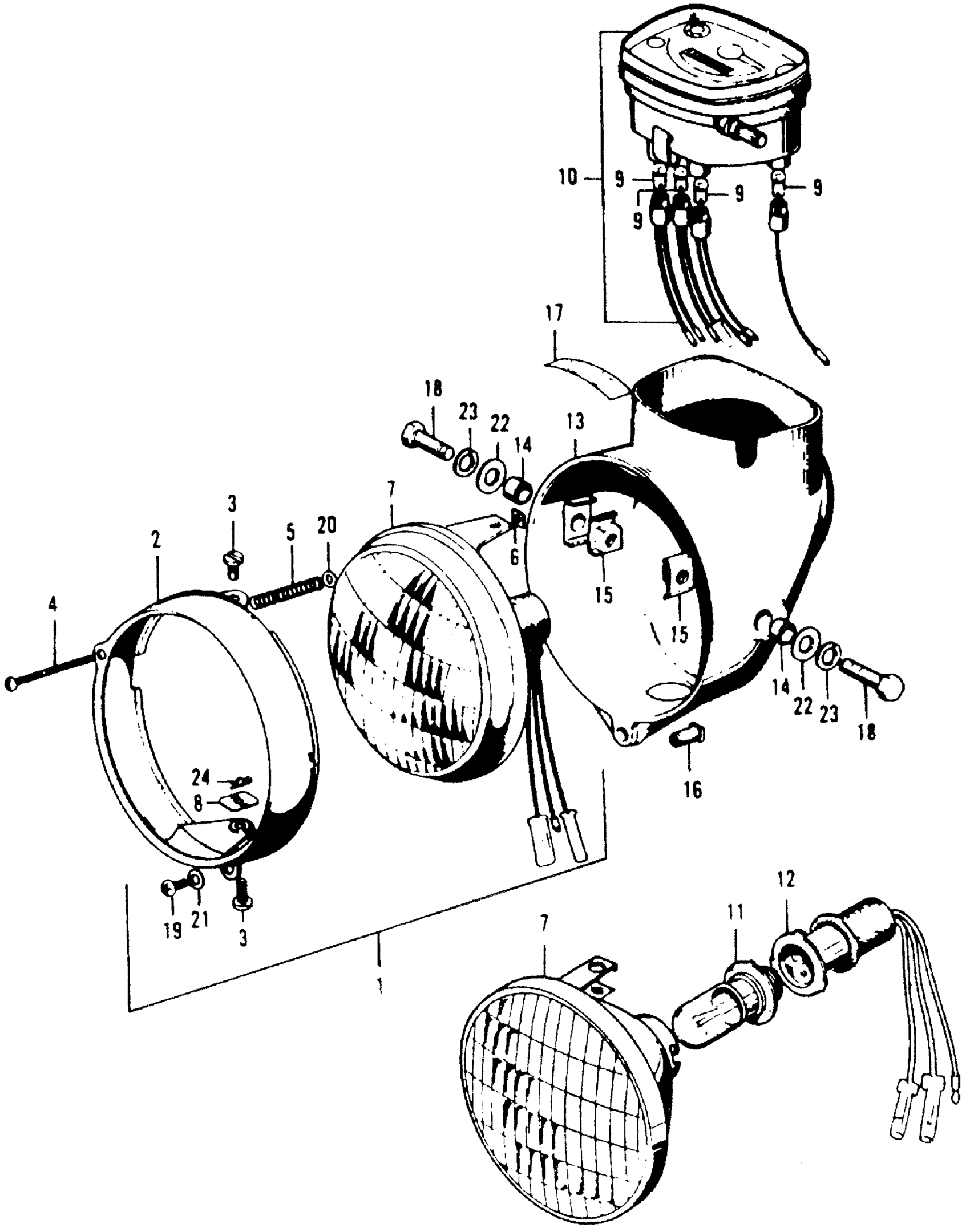

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 206500 This part replaces 33100-028-671.

33100-028-673

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 206501

33100-028-673

Unavailable

2

RIM, HEADLIGHT (N/A: SEE ASSEMBLY)

33101-028-672

Unavailable

3

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-041-600

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

4

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

5

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

6

NUT, HEADLIGHT BEAM ADJ.

33117-092-671

Unavailable

7

HEADLIGHT UNIT (6V35/25W) (N/A: SEE ASSEMBLY)

33120-028-673

Unavailable

8

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

10

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE) This part replaces 37200-077-008.

37200-028-672

Unavailable

11

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use up to Frame SN 206500

34901-030-003

$9.57

11

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use up to Frame SN 206500 This part replaces 34901-030-671.

34901-030-003

$9.57

11

BULB, HEADLIGHT (6V25/25W) (STANLEY) | Use up to Frame SN 206500

34901-087-640

$9.57

12

SOCKET, HEADLIGHT (N/A: SEE ASSEMBLY) | Use up to Frame SN 206500

33130-028-670

Unavailable

13

CASE, HEADLIGHT *R2* (SCARLET) (N/A: SEE ASSEMBLY) This part replaces 61301-028-020C.

61301-028-325C

Unavailable

13

CASE, HEADLIGHT *Y16L* (BRIGHT YELLOW) This part replaces 61301-028-020XB.

61301-056-672XB

Unavailable

13

CASE, HEADLIGHT *Y16L* (BRIGHT YELLOW)

61301-056-672XB

Unavailable

13

CASE, HEADLIGHT *YR6* (MARS ORANGE) (NOT AVAILABLE) | Use up to Frame SN 206500

61301-102-701JL

Unavailable

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.79

18

BOLT, HEX. (8X25)

92101-08025-0B

$1.79

19

SCREW, PAN (5X12)

93500-05012-0B

$1.49

20

WASHER, PLAIN (4MM)

94101-04000

$1.49

21

WASHER, PLAIN (5MM)

94101-05000

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, LOCK (5MM)

94251-05000

$1.49
