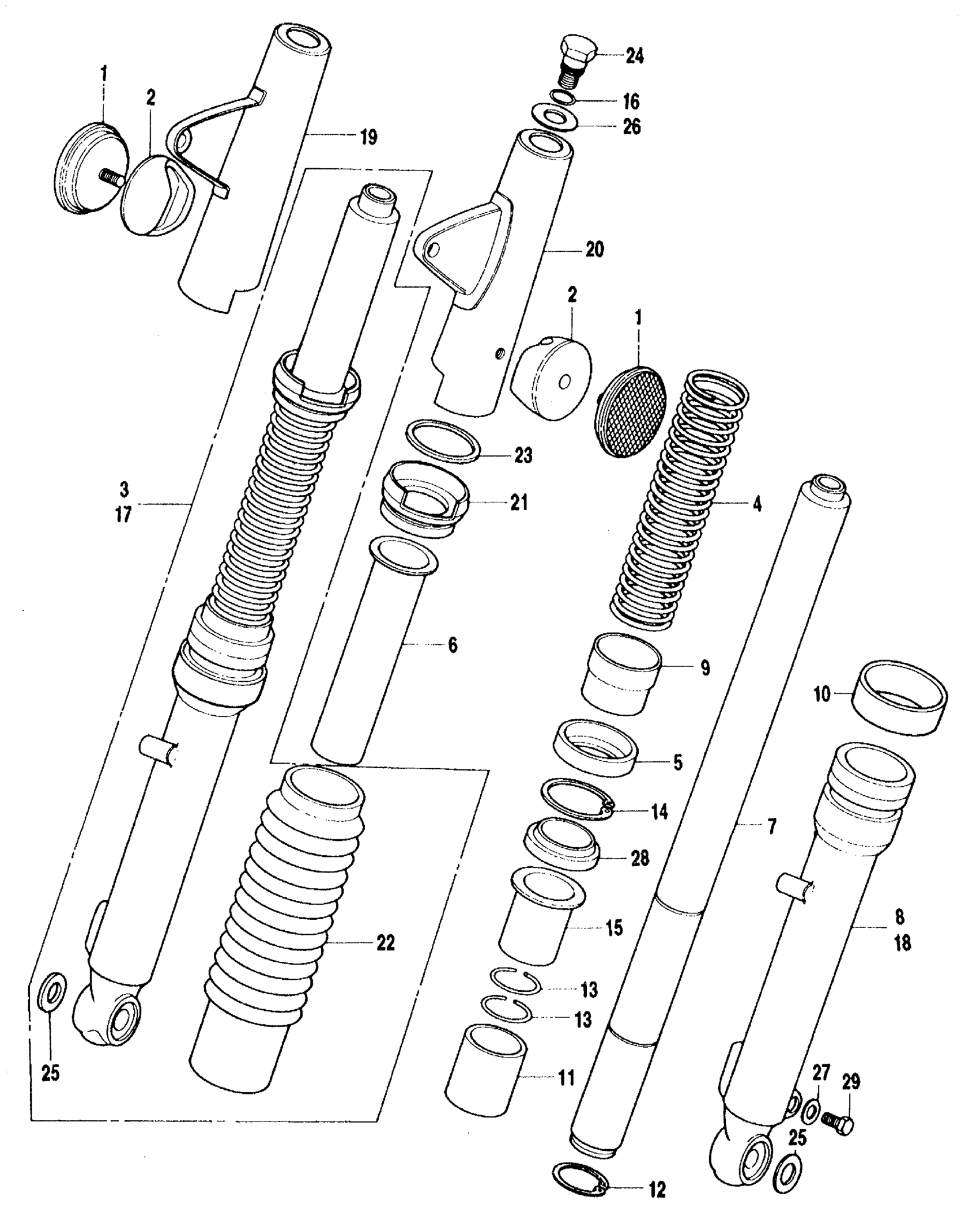

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX | Use from Frame SN 219641 This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLECTOR | Use from Frame SN 219641

33744-098-970

Unavailable

3

FORK ASSY., R. FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51400-077-000S

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-077-000

Unavailable

5

SEAT, FR. FORK SPRING (NOT AVAILABLE)

51407-229-000

Unavailable

6

GUIDE, FR. FORK SPRING

51409-028-000

$2.13

7

PIPE, FR. FORK

51410-229-000

Unavailable

8

PIPE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51420-102-000S

Unavailable

9

GUIDE, FR. FORK SPRING (LOWER)

51430-229-000

Unavailable

10

RING, CASE (LOWER) (NOT AVAILABLE)

51435-028-000

Unavailable

11

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

11

PISTON, FORK (27MM)

94603-27002

Unavailable

12

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

13

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

13

RING A, SNAP (27MM)

94570-27000

Unavailable

14

CIRCLIP (INNER) (37MM)

51447-028-000

Unavailable

15

GUIDE, FORK PIPE (27MM) This part replaces 51451-028-010.

94602-27201

Unavailable

15

GUIDE, FORK PIPE (27MM)

94602-27201

Unavailable

16

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

16

O-RING (8.4X2.4)

94608-10000

$1.49

17

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51500-077-000S

Unavailable

17

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 51500-102-000S.

51550-106-000S

Unavailable

17

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51550-106-000S

Unavailable

18

PIPE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51520-102-000S

Unavailable

19

COVER, R. FR. FORK | Use up to Frame SN 219640

51602-028-010Z

Unavailable

19

COVER, R. FR. FORK (NOT AVAILABLE) | Use from Frame SN 219641

51602-028-670Z

Unavailable

20

COVER, L. FR. FORK (NOT AVAILABLE) | Use up to Frame SN 219640

51606-028-010Z

Unavailable

20

COVER, L. FR. FORK (NOT AVAILABLE) | Use from Frame SN 219641

51606-028-670Z

Unavailable

21

SEAT, FR. COVER (LOWER)

51608-028-000

Unavailable

22

BOOT, FR. FORK This part replaces 51611-106-000.

51611-459-880

$25.33

22

BOOT, FR. FORK

51611-459-880

$25.33

23

GASKET, FORK COVER SEAT (LOWER) (NOT AVAILABLE)

51624-028-000

Unavailable

24

BOLT, FORK A

94605-10101

$5.21

25

WASHER (12.5MM)

90528-229-000

$2.02

26

WASHER, FORK BOLT (13MM) This part replaces 90537-051-000.

94606-13001

$1.49

26

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

26

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

27

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

28

OIL SEAL, FR. FORK

90756-028-000

$12.47

29

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

29

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

29

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
