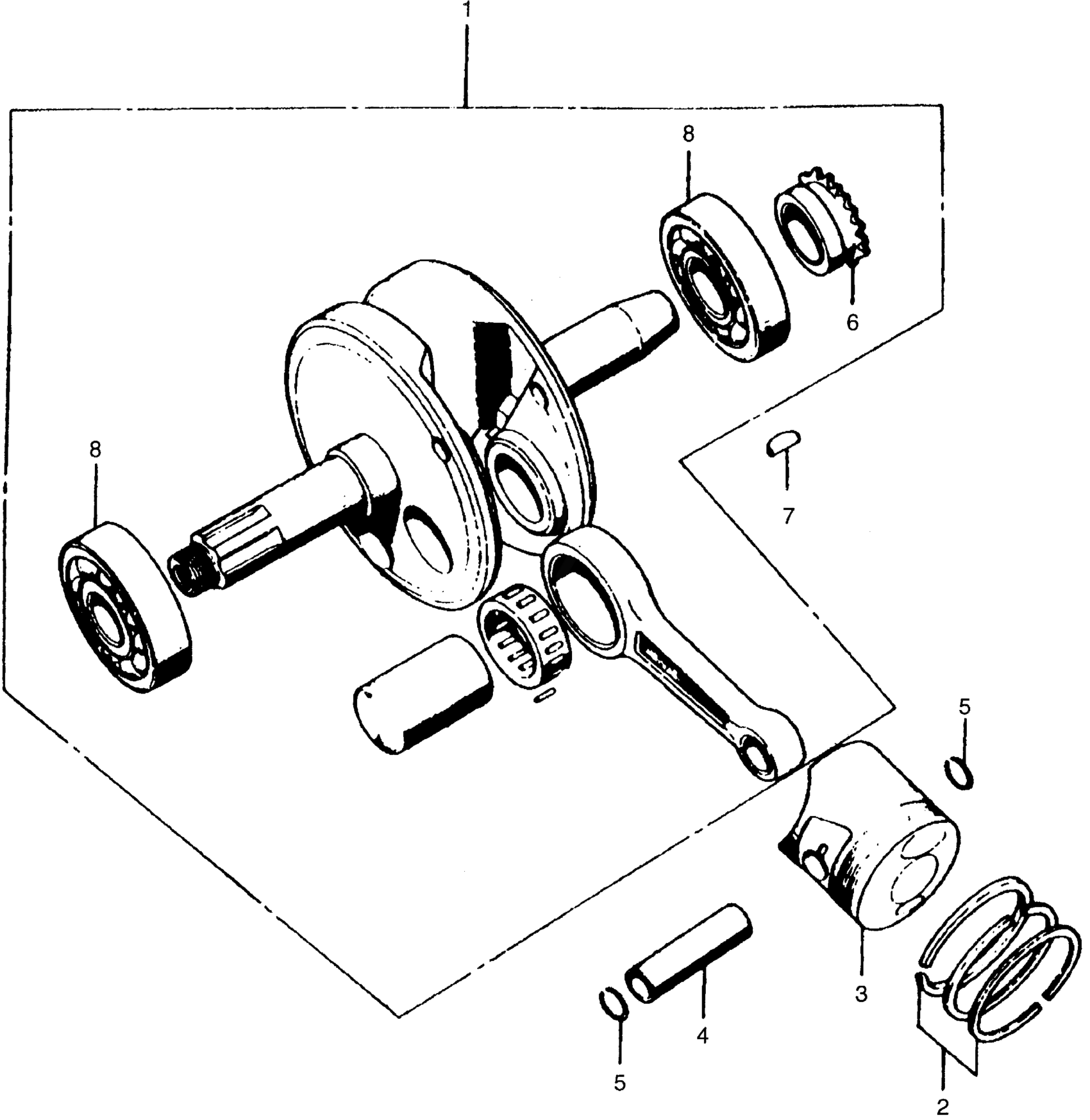

Honda CT90K1A MOTORCYCLE, JPN, VIN# CT90-200000 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE)

13000-028-040

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

130D1-121-762

Unavailable

2

RING SET, PISTON This part replaces 13010-028-020.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-025.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-028-035.

13011-121-762

$23.12

2

RING SET, PISTON This part replaces 13010-121-732.

13011-121-762

$23.12

2

RING SET, PISTON

13011-121-762

$23.12

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-028-020.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-028-025.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13020-028-035.

130A1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-028-020.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-028-025.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-028-035.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13030-121-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-028-005.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-102-732.

130B1-121-762

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-102-733.

130B1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-028-020.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-028-025.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-028-035.

130C1-121-762

Unavailable

2

RING SET, PISTON (0.75) | (Optional). This part replaces 13040-121-732.

130C1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-028-020.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-028-025.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-028-035.

130D1-121-762

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13050-121-732.

130D1-121-762

Unavailable

3

PISTON (STD)

13101-028-070

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-028-070

$37.74

3

PISTON (OS 0.50) | (Optional).

13103-028-070

Unavailable

3

PISTON (0.75) | (Optional).

13104-028-070

Unavailable

3

PISTON (1.00) | (Optional).

13105-028-070

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

6

SPROCKET, TIMING (15T)

14311-028-010

Unavailable

7

KEY, WOODRUFF

90741-253-000

Unavailable

8

BEARING, RADIAL BALL (6305) This part replaces 96100-63050.

96100-63050-00

$15.27

8

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
