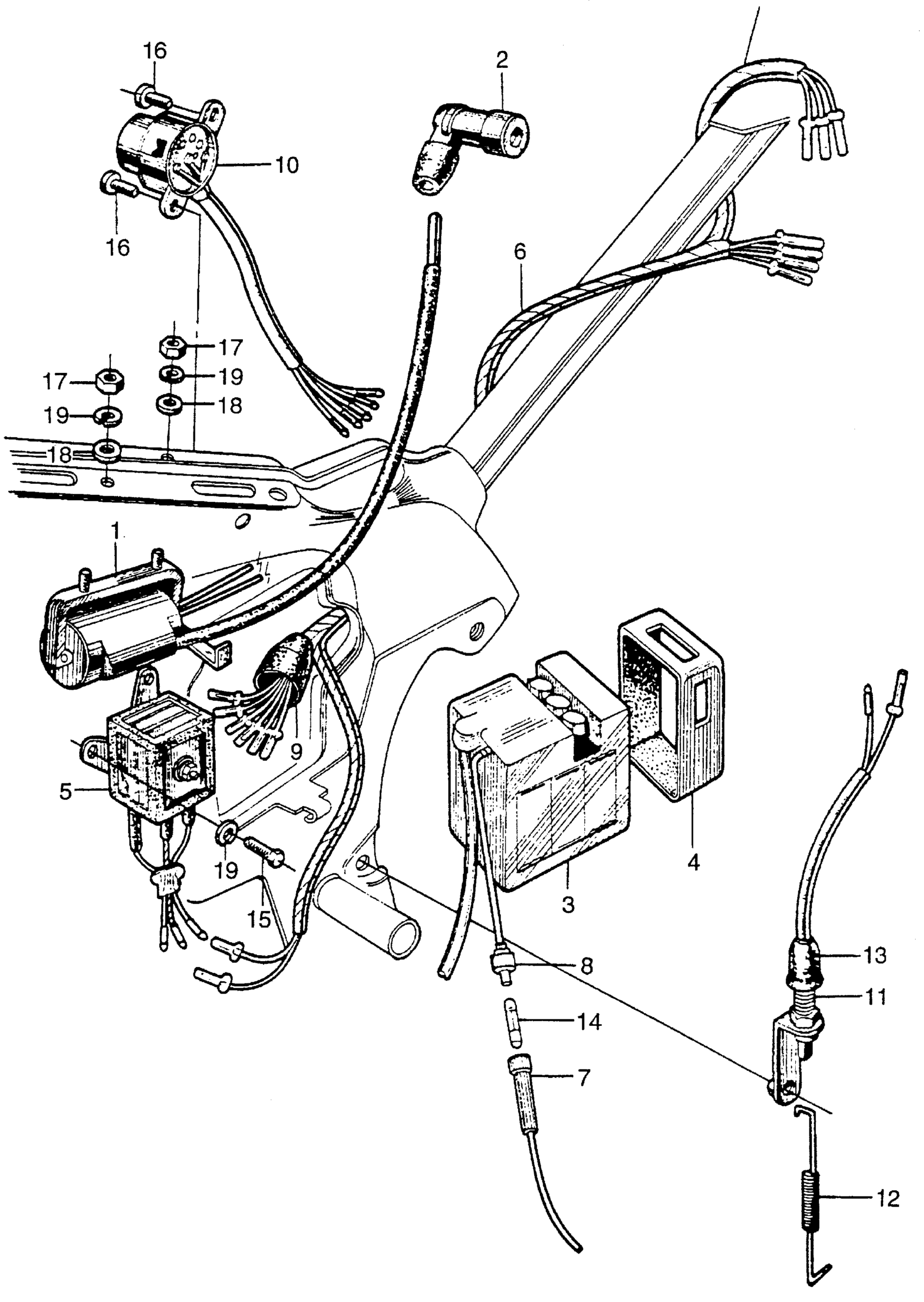

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 WIRE HARNESS Diagram

COIL, IGNITION This part replaces 30400-046-000.

30530-102-780

Unavailable

COIL, IGNITION This part replaces 30400-046-156.

30530-102-780

Unavailable

COIL, IGNITION

30530-102-780

Unavailable

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

BATTERY (6V-5.5A) This part replaces 31500-046-671.

31500-102-772AH

Unavailable

BATTERY (6V-5.5A) This part replaces 31500-053-000.

31500-102-772AH

Unavailable

BATTERY (6V-5.5A) This part replaces 31500-102-701.

31500-102-772AH

Unavailable

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

BATTERY (6V-5.5A) This part replaces 31500-128-671.

31500-102-772AH

Unavailable

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31510-046-000

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) This part replaces 31700-033-000.

31700-033-008

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE)

31700-033-008

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 122550

32100-053-000

Unavailable

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 122551

32100-053-010

Unavailable

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

GROMMET, WIRE HARNESS

32983-011-000

$3.31

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

SWITCH KIT, COMBINATION (NOT AVAILABLE) | Use up to Frame SN 122550

35010-033-000

Unavailable

SWITCH KIT, COMBINATION (NOT AVAILABLE) | Use from Frame SN 122551

35010-046-000

Unavailable

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 122550 This part replaces 35350-001-000.

35350-033-000

Unavailable

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 122550 This part replaces 35350-005-000.

35350-033-000

Unavailable

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 122550 This part replaces 35350-005-020.

35350-033-000

Unavailable

SWITCH ASSY., STOP (NOT AVAILABLE) | Use up to Frame SN 122550

35350-033-000

Unavailable

SWITCH ASSY. | Use from Frame SN 122551 This part replaces 35350-046-020.

35350-046-025

Unavailable

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-005-000

Unavailable

COVER, STOP SWITCH TERMINAL (NOT AVAILABLE)

35361-011-000

Unavailable

FUSE A (10A) | Use up to Frame SN 122550 This part replaces 38201-030-000.

98200-11000

$1.80

FUSE A (15A) | Use from Frame SN 122551 This part replaces 38201-250-000.

98200-11500

$1.49

FUSE A (10A) | Use up to Frame SN 122550

98200-11000

$1.80

FUSE A (15A) | Use from Frame SN 122551

98200-11500

$1.49

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

SCREW, PAN (6X8)

93500-06008

$1.49

SCREW, PAN (6X8)

93500-06008-0A

$1.49

SCREW, PAN (6X8)

93500-06008-0H

$1.49

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
