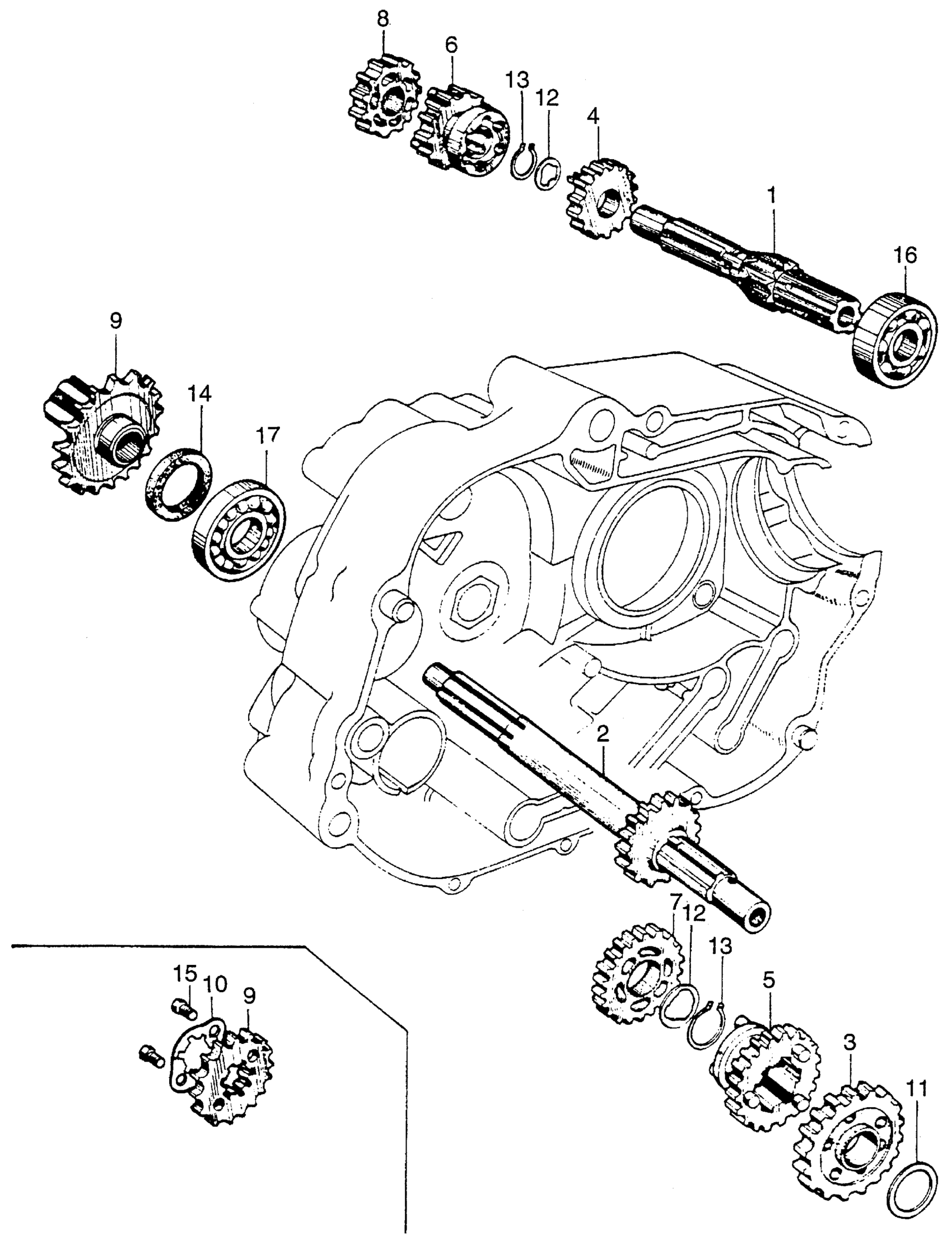

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 147265

23211-028-030

Unavailable

1

MAINSHAFT, TRANSMISSION (13T) | Use from Engine SN 147266

23211-028-070

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T) | Use from Engine SN 122551 This part replaces 23220-053-020.

23220-053-030

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T) | Use from Engine SN 122551

23220-053-030

Unavailable

2

COUNTERSHAFT, TRANSMISSION | Use from Engine SN 122551

23221-052-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) This part replaces 23421-028-000.

23421-096-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-096-000

Unavailable

4

GEAR, MAINSHAFT SECOND (NOT AVAILABLE) | Use up to Engine SN 119670 This part replaces 23431-052-000.

23431-052-010

Unavailable

4

GEAR, MAINSHAFT SECOND (NOT AVAILABLE) | Use up to Engine SN 121780

23431-052-010

Unavailable

4

GEAR, MAINSHAFT SECOND (NOT AVAILABLE) | Use from Engine SN 121781 to 147265

23431-052-020

Unavailable

4

GEAR, MAINSHAFT SECOND (NOT AVAILABLE) | Use from Engine SN 147266 to 174471

23431-052-030

Unavailable

4

GEAR, MAINSHAFT SECOND (18T) | Use from Engine SN 174472

23431-052-040

Unavailable

5

GEAR, SECOND COUNTERSHAFT (NOT AVAILABLE) This part replaces 23441-052-000.

23441-052-010

Unavailable

5

GEAR, SECOND COUNTERSHAFT (NOT AVAILABLE)

23441-052-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE) | Use from Engine SN 174472

23441-052-020

$66.88

6

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE) | Use from Engine SN 174472

23441-052-020

$66.88

6

GEAR, THIRD MAINSHAFT | Use up to Engine SN 121780

23451-052-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T) | Use from Engine SN 121781 to 124471

23451-052-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T)

23461-052-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-052-000

Unavailable

9

SPROCKET, DRIVE (15T) | Use from Engine SN 122551

23800-053-000

Unavailable

9

SPROCKET, DRIVE (14T) | Use up to Engine SN 122550 This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

9

SPROCKET, DRIVE | Use up to Engine SN 122550 This part replaces 23801-028-000.

23801-121-000

Unavailable

9

SPROCKET, DRIVE | Use up to Engine SN 122550 This part replaces 23801-046-000.

23801-121-000

Unavailable

9

SPROCKET, DRIVE | Use up to Engine SN 122550 This part replaces 23801-052-010.

23801-121-000

Unavailable

9

SPROCKET, DRIVE (14T) | Use up to Engine SN 122550 This part replaces 23801-107-760.

23801-KF9-505

$38.11

9

SPROCKET, DRIVE | Use up to Engine SN 122550

23801-121-000

Unavailable

10

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE) | Use up to Engine SN 122550

23811-206-000

Unavailable

11

WASHER, THRUST (14MM)

90451-001-000

$3.67

12

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

13

CIRCLIP (18MM)

90601-030-000

$1.77

14

OIL SEAL (27X37X7) | Use from Engine SN 122551 This part replaces 91201-053-000.

91205-943-003

$11.58

14

OIL SEAL (27X37X7) | Use from Engine SN 122551 This part replaces 91201-053-005.

91205-943-003

$11.58

14

OIL SEAL (27X37X7) | Use from Engine SN 122551

91205-943-003

$11.58

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

16

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

16

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

17

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

17

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
