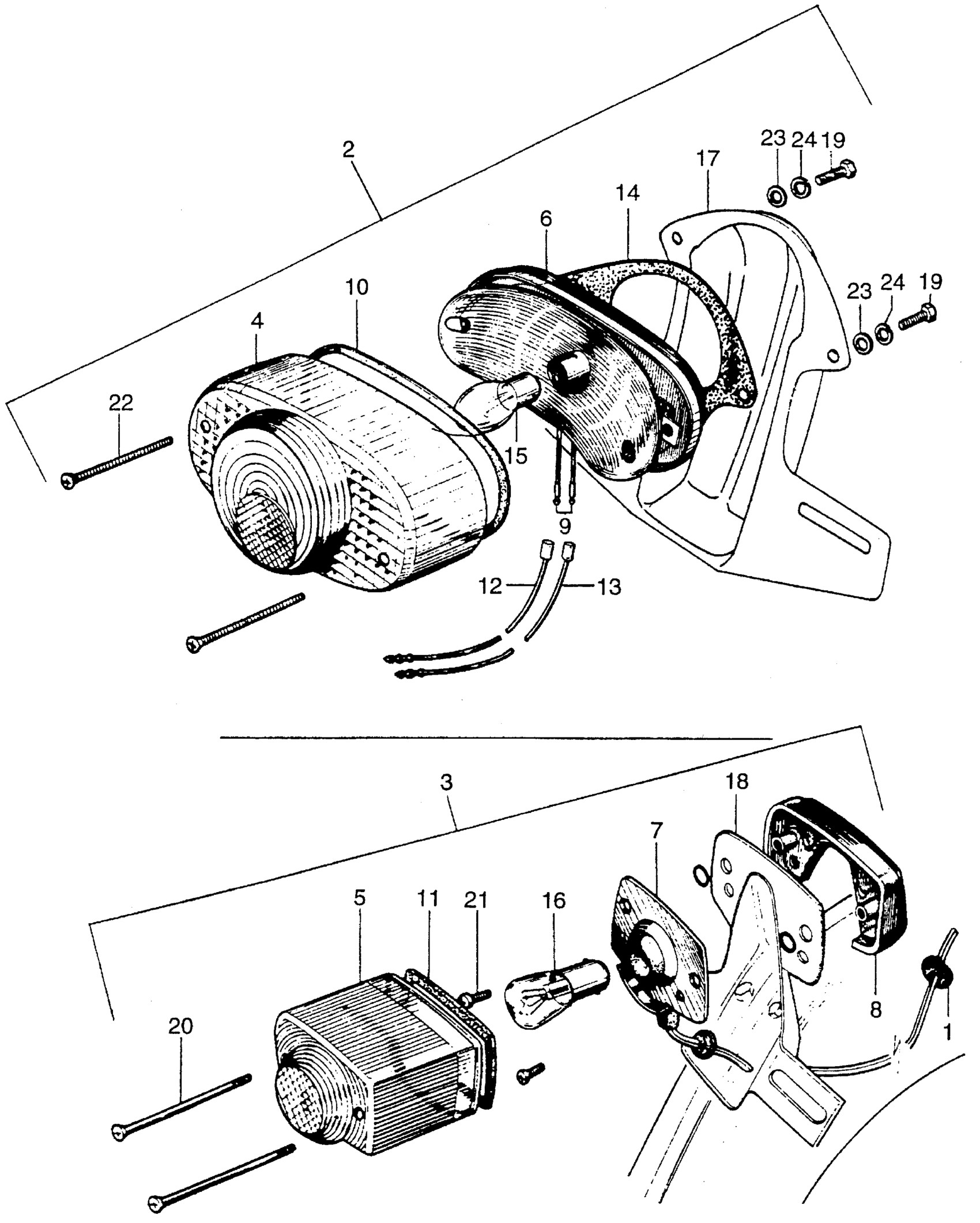

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 TAILLIGHT Diagram

#

Description
Price

1

GROMMET, TAILLIGHT WIRE (NOT AVAILABLE)

32982-011-000

Unavailable

2

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 122551 This part replaces 33700-041-671.

33700-237-670

Unavailable

2

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 122551

33700-237-670

Unavailable

3

TAILLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 122550

33700-033-000

Unavailable

4

LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 122551

33701-041-671

Unavailable

5

LENS, TAILLIGHT | Use up to Frame SN 122550

33701-268-680

Unavailable

6

BASE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 122551 to 184411 This part replaces 33702-041-671.

33702-041-672

Unavailable

6

BASE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 122551

33702-041-672

Unavailable

7

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 122550

33703-030-600

Unavailable

8

PLATE, TAILLIGHT LENS HOLDER | Use up to Frame SN 122550

33705-268-670

Unavailable

9

WIRE, TAILLIGHT | Use from Frame SN 122551 This part replaces 33707-041-672.

33708-077-671

Unavailable

9

WIRE, TAILLIGHT | Use from Frame SN 122551 This part replaces 33707-237-670.

33708-077-671

Unavailable

9

WIRE, TAILLIGHT | Use from Frame SN 122551 This part replaces 33707-243-670.

33708-077-671

Unavailable

9

WIRE, TAILLIGHT | Use from Frame SN 122551 This part replaces 33708-041-670.

33708-077-671

Unavailable

9

WIRE, TAILLIGHT | Use from Frame SN 122551

33708-077-671

Unavailable

10

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use from Frame SN 122551

33709-041-000

Unavailable

11

GASKET, TAILLIGHT LENS | Use up to Frame SN 122550

33709-268-810

Unavailable

12

SUB-WIRE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 122551

33711-028-670

Unavailable

13

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT) | Use from Frame SN 122551

33713-028-670

Unavailable

14

GASKET, TAILLIGHT BASE (NOT AVAILABLE) | Use from Frame SN 122551

33719-041-300

Unavailable

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 122551 This part replaces 34906-041-671.

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 122551

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 122551 This part replaces 34906-205-222.

34906-202-670

$11.50

15

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN 122551 This part replaces 34911-001-810.

34906-202-670

$11.50

16

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use up to Frame SN 122550

34906-202-670

$11.50

17

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 122551

50213-053-000B

Unavailable

18

BRACKET, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 122550

50215-001-821Z

Unavailable

19

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

19

BOLT, HEX. (5X12) This part replaces 92000-05012-0B.

92101-05012-0B

$1.49

19

BOLT, HEX. (5X12) This part replaces 92000-05012-02.

92101-05012-0B

$1.49

19

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

19

BOLT, HEX. (5X12)

92101-05012-0B

$1.49

19

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

20

SCREW, PAN (3X60) (NOT AVAILABLE)

93500-03060-0B

Unavailable

20

SCREW, PAN (3X60) (NOT AVAILABLE) This part replaces 93500-03060-02.

93500-03060-0B

Unavailable

21

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

21

SCREW, PAN (4X10)

93500-04010-0A

$1.49

21

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

22

SCREW, PAN (4X45)

93500-04045-0A

Unavailable

22

SCREW, PAN (4X45) (SOURCE: VINTAGE PARTS INC.)

93500-06045-0B

Unavailable

22

SCREW, PAN (4X45) (SOURCE: VINTAGE PARTS INC.) This part replaces 93500-06045-02.

93500-06045-0B

Unavailable

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

WASHER, SPRING (5MM)

94111-05000

$1.49
