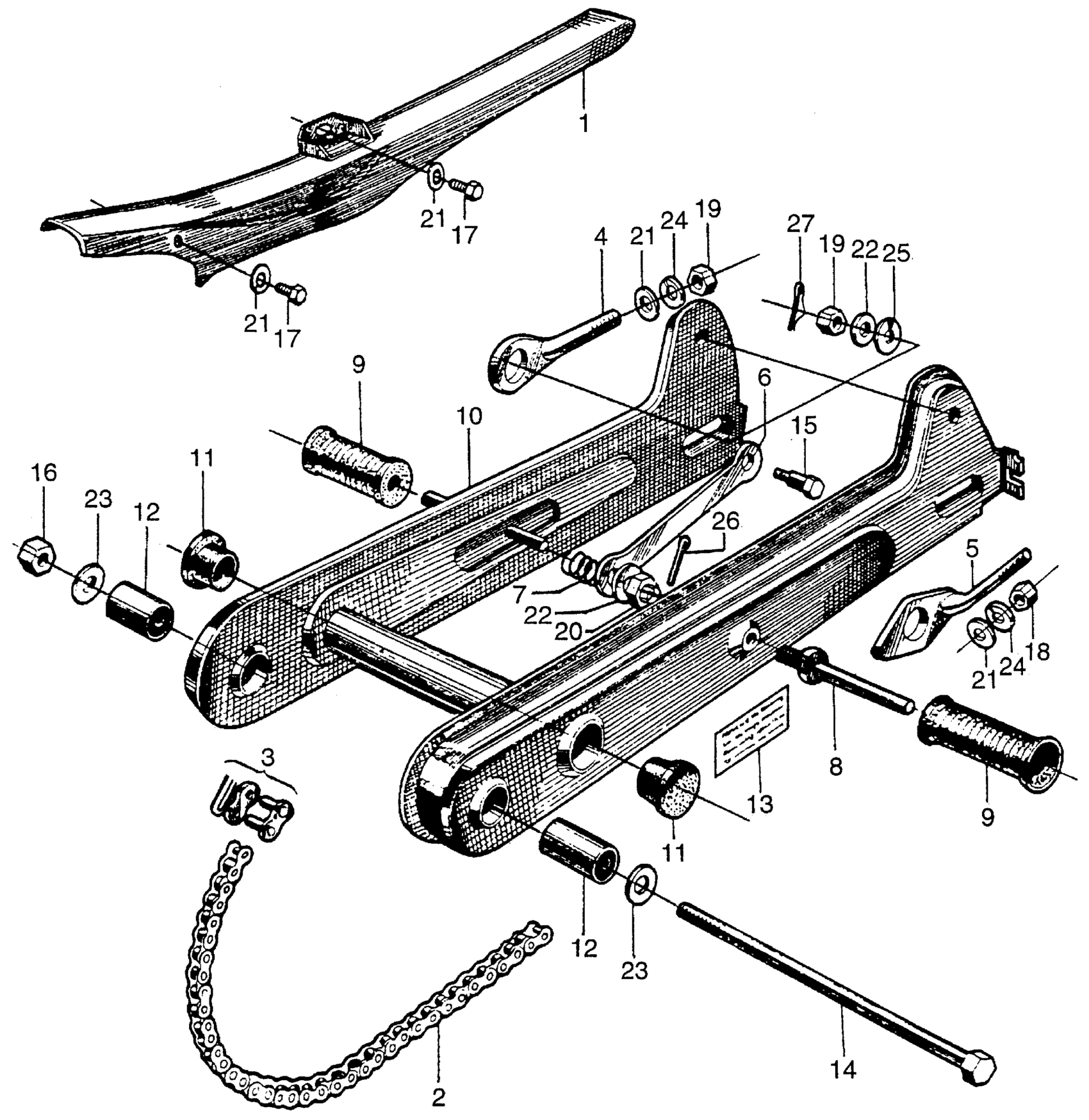

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE) | Use from Frame SN 122551

40510-053-000Z

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use up to Frame SN 122550 This part replaces 40530-028-013.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use up to Frame SN 122550 This part replaces 40530-030-810.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use up to Frame SN 122550 This part replaces 40530-030-812.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (NOT AVAILABLE) | Use up to Frame SN 122550

40530-033-000

Unavailable

2

CHAIN, SUB-DRIVE (6L) (NOT AVAILABLE) | Use up to Frame SN 122550

40530-033-810

Unavailable

2

CHAIN, SUB-DRIVE (8L) | Use up to Frame SN 122550

40530-033-820

Unavailable

2

CHAIN, SUB-DRIVE (10L) (NOT AVAILABLE) | Use up to Frame SN 122550

40530-033-830

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 122551 This part replaces 40530-053-010.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 122551 This part replaces 40530-102-731.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 122551 This part replaces 40530-359-673.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use up to Frame SN 122550 This part replaces 40530-459-000.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 122551 This part replaces 40530-459-671.

405W3-KA8-505

Unavailable

3

MASTER LINK This part replaces 40531-205-003.

40531-205-013

Unavailable

3

MASTER LINK

40531-205-013

Unavailable

3

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

4

ADJUSTER A, R. CHAIN | Use up to Frame SN 122550 This part replaces 40543-001-000.

95014-10100

$5.15

4

ADJUSTER A, R. CHAIN | Use up to Frame SN 122550 This part replaces 40543-030-000.

95014-10100

$5.15

4

ADJUSTER A, R. CHAIN This part replaces 40543-032-000.

95014-10100

$5.15

4

ADJUSTER A, R. CHAIN This part replaces 40543-051-000.

95014-10100

$5.15

4

ADJUSTER A, R. CHAIN

95014-10100

$5.15

5

ADJUSTER, L. CHAIN This part replaces 40544-001-000.

95014-10020

$5.15

5

ADJUSTER, L. CHAIN

95014-10020

$5.15

6

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

7

SPRING, STOPPER ARM

43434-250-000

$1.83

8

BAR, L. PILLION STEP

50700-001-810

Unavailable

9

RUBBER, PILLION STEP This part replaces 50731-001-810.

95011-32000

$6.87

9

RUBBER, PILLION STEP This part replaces 50731-051-000.

95011-32000

$6.87

9

RUBBER, PILLION STEP

95011-32000

$6.87

10

SWINGARM (NOT AVAILABLE) | Use up to Frame SN 122550

52100-033-000Z

Unavailable

10

SWINGARM (NOT AVAILABLE) | Use from Frame SN 122551

52100-053-000Z

Unavailable

11

CAP *Y3L* This part replaces 52161-001-010XL.

52161-001-505

Unavailable

11

CAP, CROSSMEMBER SIDE

52161-051-000

$2.12

11

CAP, CROSSMEMBER SIDE This part replaces 52161-051-000B.

52161-051-000

$2.12

11

CAP, CROSSMEMBER SIDE This part replaces 52161-051-000XL.

52161-051-000

$2.12

12

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$10.43

13

PLATE, CAUTION (NOT AVAILABLE)

87130-053-000

Unavailable

13

LABEL, MUFFLER CAUTION

87504-028-670

$2.80

14

BOLT, SWINGARM PIVOT This part replaces 90121-025-000.

90121-033-000

Unavailable

14

BOLT, SWINGARM PIVOT

90121-033-000

Unavailable

15

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$7.99

15

BOLT, RR. BRAKE STOPPER

90127-400-000

$7.99

16

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM)

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

19

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$0.97

19

NUT, HEX. (8MM)

94001-08000-0S

$1.19

19

NUT, HEX. (8MM)

94030-08000

$0.97

19

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$0.97

20

NUT, SELF-LOCK (8MM) This part replaces 94011-08000.

94011-08000-0S

$9.59

20

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.59

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM)

94101-06800

Unavailable

22

WASHER, PLAIN (8MM)

94101-08000

$0.75

23

WASHER, PLAIN (10MM)

94101-10000

Unavailable

24

WASHER, SPRING (6MM)

94111-06000

$0.86

25

WASHER, SPRING (8MM)

94111-10000

$1.22

26

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.94

26

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

26

PIN, COTTER (2.0X22)

94201-20220

$0.94

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

26

PIN, COTTER (2.0X35)

94201-20350

$0.94

26

PIN, COTTER (2.0X22)

94201-29220

$0.94

27

PIN, LOCK (8MM)

94251-08000

$1.12
