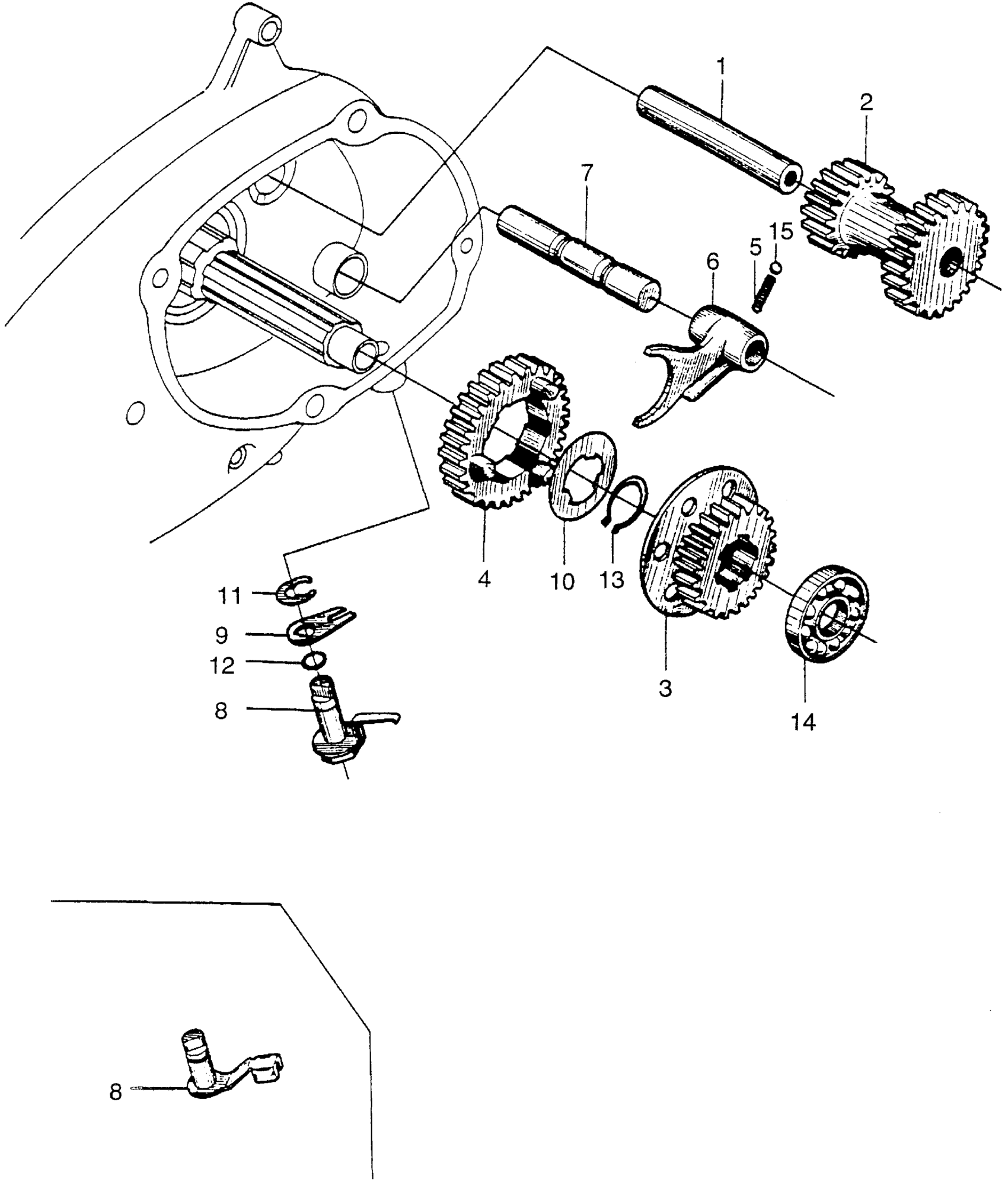

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 SUB-TRANSMISSION + SHIFT FORK Diagram

COUNTERSHAFT, SUB-TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 122551

23900-053-000

Unavailable

GEAR, SUB-TRANSMISSION COUNTERSHAFT (16X22T) (NOT AVAILABLE) | Use from Engine SN 122551 to 135886

23910-053-000

$190.15

GEAR, SUB-TRANSMISSION COUNTERSHAFT (NOT AVAILABLE) | Use from Engine SN 135887

23910-053-010

Unavailable

GEAR, SUB-TRANSMISSION LOW (22T) (NOT AVAILABLE)

23921-053-010

$26.55

GEAR, SUB-TRANSMISSION HIGH | Use from Engine SN 122551 to 135886

23931-053-000

Unavailable

GEAR, SUB-TRANSMISSION HIGH (28T) (NOT AVAILABLE) | Use from Engine SN 135887

23931-053-010

Unavailable

SPRING, BALL SET (NOT AVAILABLE) | Use from Engine SN 122551 to 146310

24271-053-000

Unavailable

SPRING, BALL SETTING (NOT AVAILABLE) | Use from Engine SN 146311

24271-053-010

Unavailable

FORK, SUB-TRANSMISSION GEARSHIFT | Use from Engine SN 122551

24801-053-000

Unavailable

SHAFT, GEARSHIFT FORK | Use from Engine SN 122551

24811-053-000

Unavailable

SHAFT, SUB-CHANGE (NOT AVAILABLE) | Use from Engine SN 122551 to 146310 This part replaces 24821-053-020.

24821-053-030

Unavailable

SHAFT, SUB-CHANGE (NOT AVAILABLE) | Use from Engine SN 122551

24821-053-030

Unavailable

ARM, SUB-CHANGE | Use from Engine SN 122551

24831-053-010

Unavailable

WASHER, SPLINE (20MM) | Use from Engine SN 122551

90456-053-000

Unavailable

CIRCLIP (8.6MM) | Use from Engine SN 122551

90601-053-010

Unavailable

O-RING (7.5X15) | Use from Engine SN 122551

91301-053-000

$2.92

O-RING (7.5X1.5) | Use from Engine SN 122551

91302-HB3-004

$2.18

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
