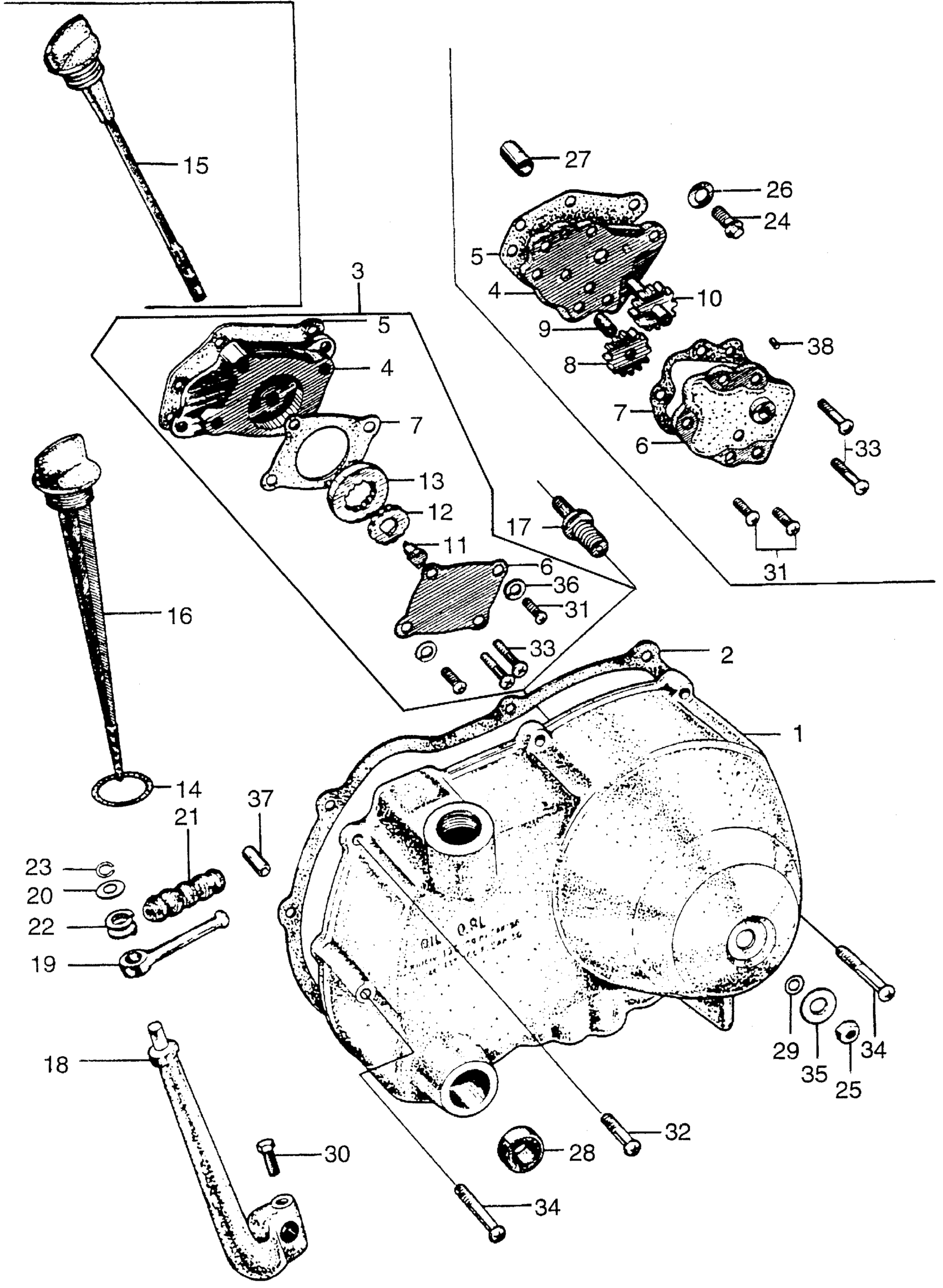

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 RIGHT CRANKCASE COVER + OILPUMP Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 121981 This part replaces 11330-046-000.

11330-046-020

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 122550 This part replaces 11330-046-010.

11330-046-020

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-046-020

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11393-028-020.

11393-028-306

$12.58

2

GASKET, R. CRANKCASE COVER

11393-028-306

$12.58

3

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 122551

15100-053-000

Unavailable

4

BODY, OIL PUMP This part replaces 15111-053-000.

15111-053-020

Unavailable

4

BODY, OIL PUMP

15111-053-020

Unavailable

4

BODY, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 116235

15210-028-020

Unavailable

4

BODY, OIL PUMP | Use from Engine SN 116236 to 122550

15210-028-030

Unavailable

5

GASKET, OIL PUMP BODY (NOT AVAILABLE) | Use up to Engine SN 116235

15119-028-000

Unavailable

5

GASKET, OIL PUMP BODY (NOT AVAILABLE) | Use from Engine SN 116236 to 122550

15119-028-010

Unavailable

5

GASKET, OIL PUMP BODY | Use from Engine SN 122551 This part replaces 15119-028-020.

15119-028-306

Unavailable

5

GASKET, OIL PUMP BODY | Use from Engine SN 122551 This part replaces 15119-028-030.

15119-028-306

Unavailable

5

GASKET, OIL PUMP BODY | Use from Engine SN 122551

15119-028-306

Unavailable

6

COVER, OIL PUMP | Use up to Engine SN 122550

15121-028-040

Unavailable

6

COVER, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 122551

15121-028-060

Unavailable

7

GASKET, OIL PUMP COVER (NOT AVAILABLE) | Use up to Engine SN 122550

15128-028-010

Unavailable

7

GASKET, OIL PUMP COVER | Use from Engine SN 122551

15128-028-030

Unavailable

8

GEAR B, OIL PUMP (NOT AVAILABLE) | Use up to Engine SN 122550

15141-028-030

Unavailable

9

SHAFT, OIL PUMP DRIVEN GEAR (NOT AVAILABLE) | Use up to Engine SN 122550

15161-028-030

Unavailable

10

GEAR, OIL PUMP DRIVE (NOT AVAILABLE) | Use up to Engine SN 122550

15180-028-040

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 122551

15181-028-050

Unavailable

11

O-RING (18X3) (ARAI) | Use from Engine SN 121982

91307-KF0-003

$2.92

11

O-RING (18X3) | Use from Engine SN 121982

91307-035-000

$2.92

11

O-RING (18X3) | Use from Engine SN 121982 This part replaces 91311-044-000.

91307-035-000

$2.92

12

ROTOR, OIL PUMP (INNER) | Use from Engine SN 122551 This part replaces 15331-053-010.

15331-053-014

Unavailable

12

ROTOR, OIL PUMP (INNER) | Use from Engine SN 122551

15331-053-014

Unavailable

13

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 122551 This part replaces 15332-053-010.

15332-053-014

Unavailable

13

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 122551

15332-053-014

Unavailable

14

GASKET, OIL CAP (NOT AVAILABLE) | Use up to Engine SN 121981

15619-001-000

Unavailable

15

DIPSTICK, OIL | Use from Engine SN 121981 This part replaces 15650-028-010.

15650-102-701

Unavailable

15

DIPSTICK, OIL | Use from Engine SN 121981 This part replaces 15650-102-700.

15650-102-701

Unavailable

15

DIPSTICK, OIL | Use from Engine SN 121981

15650-102-701

Unavailable

16

DIPSTICK, OIL | Use up to Engine SN 121981

15650-028-305

Unavailable

17

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE) | Use up to Engine SN 122230

22846-046-000

Unavailable

17

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231 This part replaces 22846-053-010.

22846-053-030

Unavailable

17

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231 This part replaces 22846-053-020.

22846-053-030

Unavailable

17

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231

22846-053-030

Unavailable

18

ARM, KICK STARTER This part replaces 28301-053-000.

28301-216-000

Unavailable

18

ARM, KICK STARTER

28301-216-000

Unavailable

19

PEDAL, KICK STARTER

28302-033-000

Unavailable

20

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

21

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

21

RUBBER A, KICK STARTER

95011-51000

$3.69

22

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

23

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

24

BOLT, OIL JOINT (NOT AVAILABLE) | Use from Engine SN 116236

90015-028-000

Unavailable

25

NUT (8MM) (NOT AVAILABLE) | Use up to Engine SN 122230

90281-001-000

Unavailable

25

NUT, HEX. (8MM) | Use from Engine SN 122231 This part replaces 94001-08000.

94030-08000

$1.49

25

NUT, HEX. (8MM) | Use from Engine SN 122231

94030-08000

$1.49

25

NUT, HEX. (8MM)

94030-08000

$1.49

25

NUT, HEX. (8MM) | Use from Engine SN 122231 This part replaces 94030-08200.

94030-08000

$1.49

26

GASKET, OIL PIPE JOINT | Use from Engine SN 116236

90405-001-000

$1.89

27

PIN, KNOCK (13X11) (NOT AVAILABLE)

90701-028-000

Unavailable

28

OIL SEAL (14X26X6) This part replaces 91203-023-020.

91251-ZW5-003

$3.81

28

OIL SEAL (14X26X6)

91251-ZW5-003

$3.81

29

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

29

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

30

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

30

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

30

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

31

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

31

SCREW, PAN (5X12)

93500-05012-0A

$1.49

32

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

32

SCREW, PAN (6X20)

93500-06020-0A

$1.49

33

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

34

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

34

SCREW, PAN (6X40)

93500-06040-0A

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (5MM)

94111-05000

$1.49

37

PIN A, DOWEL (10X14)

94301-10140

$2.28

38

PIN, DOWEL (4X65) (NOT AVAILABLE)

94302-04065

$2.14
