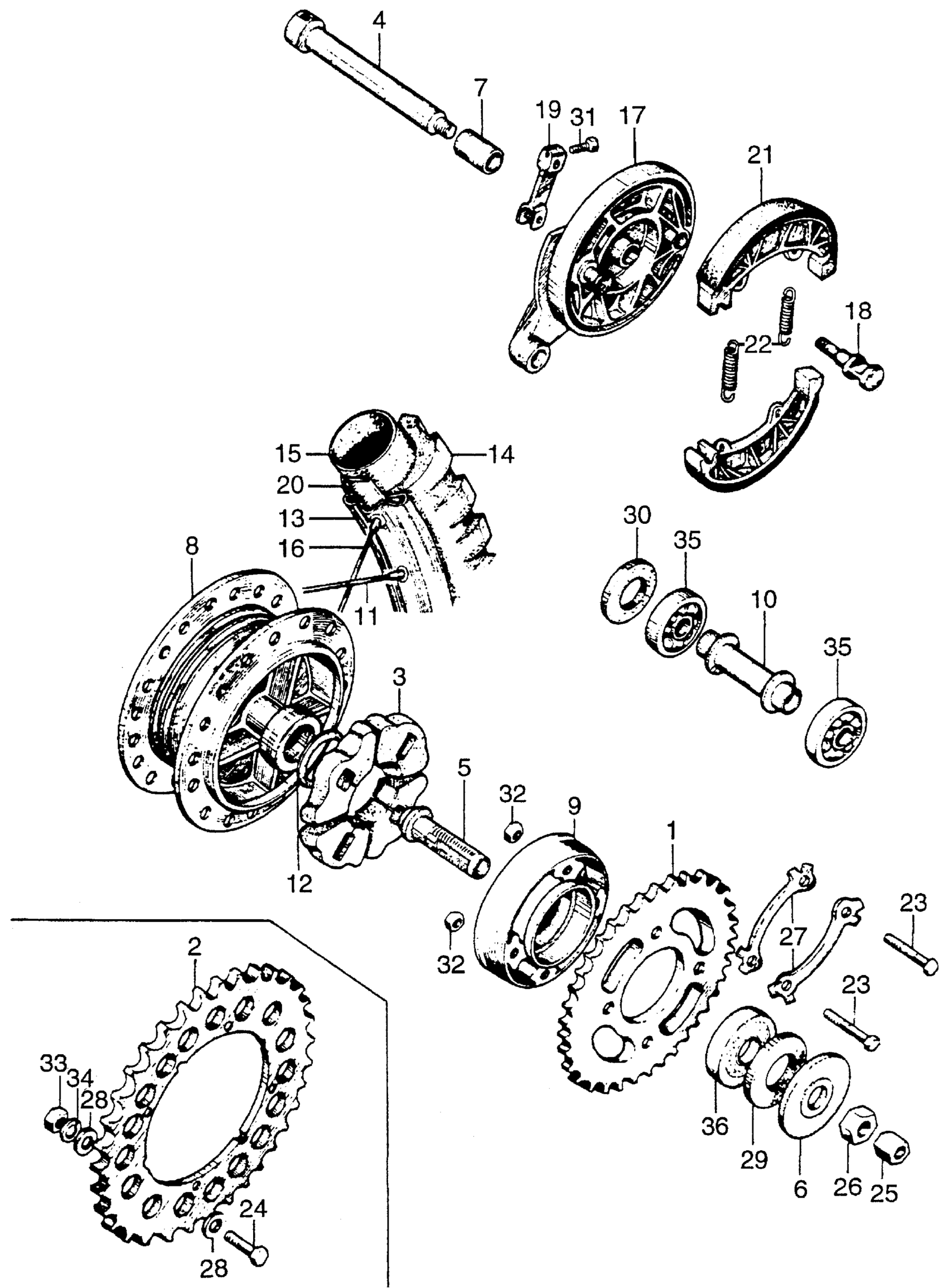

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 REAR WHEEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 431A2-430-000.

06430-430-405

Unavailable

1

SPROCKET A, FINAL DRIVEN (40T) (NOT AVAILABLE) | Use up to Frame SN 122550

41201-033-000

Unavailable

1

SPROCKET A, FINAL DRIVEN (51T) (NOT AVAILABLE) | Use up to Frame SN 122550

41201-033-810

Unavailable

1

SPROCKET A, FINAL DRIVEN (52T) (NOT AVAILABLE) | Use up to Frame SN 122550

41201-033-820

Unavailable

1

SPROCKET A, FINAL DRIVEN (NOT AVAILABLE) | Use from Frame SN 122551 to 138200

41201-053-010

Unavailable

1

SPROCKET A (45T) | Use from Frame SN 138201 This part replaces 41201-053-020.

41201-053-505

Unavailable

2

SPROCKET B, FINAL DRIVEN (68T) | Use up to Frame SN 122550

41202-033-000

Unavailable

2

SPROCKET B, FINAL DRIVEN (54T) (NOT AVAILABLE) | Use up to Frame SN 122550

41202-033-810

Unavailable

2

SPROCKET B, FINAL DRIVEN (55T) (NOT AVAILABLE) | Use up to Frame SN 122550

41202-033-820

Unavailable

2

SPROCKET B, FINAL DRIVEN (58T) (NOT AVAILABLE) | Use up to Frame SN 122550

41202-033-830

Unavailable

3

DAMPER, RR. WHEEL | Use up to Frame SN 122550 This part replaces 41241-033-000.

41241-033-010

$11.64

3

DAMPER, RR. WHEEL

41241-033-010

$11.64

4

AXLE, RR. WHEEL | Use up to Frame SN 184411 This part replaces 42301-033-000.

42301-046-000

Unavailable

4

AXLE, RR. WHEEL

42301-046-000

Unavailable

5

SLEEVE, RR. WHEEL AXLE

42303-033-000

Unavailable

6

COLLAR, RR. WHEEL AXLE SLEEVE (NOT AVAILABLE)

42304-033-000

Unavailable

7

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-001-000

Unavailable

8

HUB, RR. WHEEL | Use up to Frame SN 122550 This part replaces 42601-001-060.

42601-001-070

Unavailable

8

HUB, RR. WHEEL

42601-001-070

Unavailable

9

FLANGE, FINAL DRIVEN (NOT AVAILABLE) | Use up to Frame SN 138200

42610-053-000

Unavailable

9

FLANGE, FINAL DRIVEN (NOT AVAILABLE) | Use from Frame SN 138201

42610-053-010

Unavailable

10

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

11

SPOKE B, RR.

42638-001-020

$4.66

12

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

13

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 42701-030-006.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 44701-030-000.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 44701-030-003.

42701-102-794

$77.20

13

RIM, RR. WHEEL This part replaces 44701-102-791.

42701-102-794

$77.20

14

TIRE, RR. (2.75-17) (NITTO) (NOT AVAILABLE)

42711-033-000

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 0Y400-03310.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 08400-03310.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-033-000.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-102-009.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-671.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-169-701.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-244-000.

42712-102-761

Unavailable

15

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-303-003.

42712-102-761

Unavailable

16

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

16

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

17

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-001-050

Unavailable

18

CAM, RR. BRAKE (NOT AVAILABLE)

43141-001-000

Unavailable

19

ARM, RR. BRAKE (NOT AVAILABLE)

43411-011-000

Unavailable

20

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

20

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

21

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

22

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

22

SPRING, BRAKE SHOE

45133-028-000

$2.03

23

BOLT, SPROCKET

90128-001-030

Unavailable

24

BOLT, SPROCKET (NOT AVAILABLE) | Use up to Frame SN 184411

90128-033-000

Unavailable

25

NUT, AXLE (NOT AVAILABLE) | Use from Frame SN 184412

90305-001-000

Unavailable

25

NUT, AXLE (NOT AVAILABLE)

90305-046-000

Unavailable

26

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

27

WASHER, TONGUED (8MM) (NOT AVAILABLE)

90522-033-000

Unavailable

28

WASHER, SPROCKET SETTING

90551-033-000

$1.74

29

OIL SEAL (25X47X6.5) This part replaces 91253-033-000.

91253-033-003

$5.94

29

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

30

OIL SEAL (18X37X7) (NOT AVAILABLE)

91254-001-000

Unavailable

31

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

32

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

32

NUT, HEX. (8MM)

94031-08000

$1.49

33

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

33

NUT, HEX. (10MM)

94002-10000-0S

$4.06

33

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

34

WASHER, SPRING (8MM)

94111-10000

$1.49

35

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

35

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

35

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

36

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

36

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

36

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
