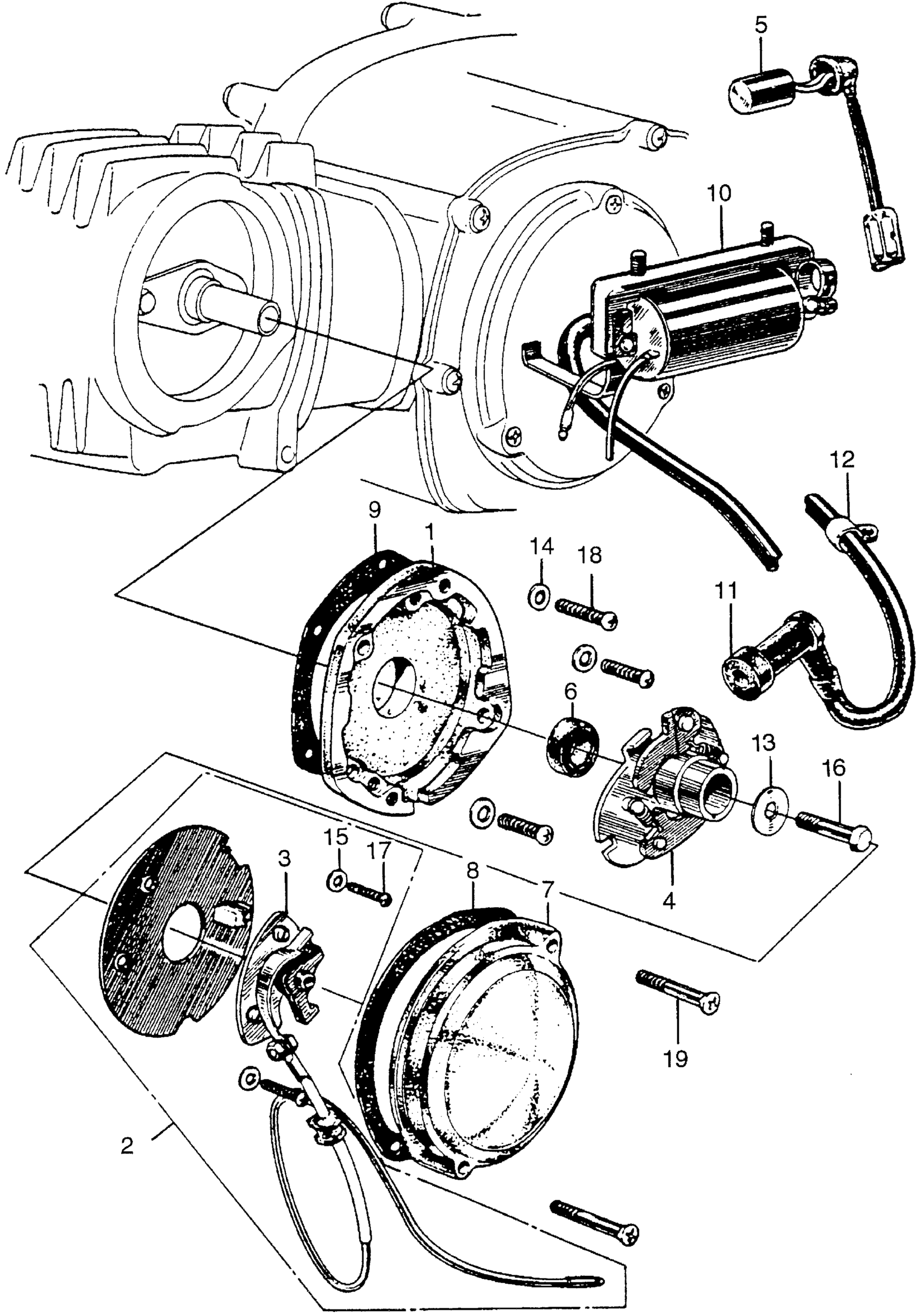

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 POINTS + ADVANCER Diagram

BASE ASSY., POINTS (NOT AVAILABLE) | Use up to Engine SN 121320 This part replaces 12332-028-000.

12332-028-010

Unavailable

BASE ASSY., POINTS (NOT AVAILABLE) | Use up to Engine SN 121320

12332-028-010

Unavailable

BASE, POINTS (NOT AVAILABLE) | Use from Engine SN 121321 to 184411 This part replaces 12332-028-020.

12332-028-040

Unavailable

BASE, POINTS (NOT AVAILABLE) | Use from Engine SN 121321 This part replaces 12332-028-030.

12332-028-040

Unavailable

BASE ASSY., POINTS (NOT AVAILABLE) | Use up to Engine SN 121320 This part replaces 30360-028-000.

12332-028-010

Unavailable

BASE ASSY., POINTS | Use from Engine SN 184412 This part replaces 30360-028-020.

30360-028-030

Unavailable

BASE ASSY., POINTS | Use from Engine SN 184412

30360-028-030

Unavailable

POINTS ASSY. (DENSO) This part replaces 30200-028-003.

30200-107-014

$58.62

POINTS ASSY. (DENSO) This part replaces 30200-028-004.

30200-107-014

$58.62

POINTS ASSY. (DENSO) This part replaces 30200-028-005.

30200-107-014

$58.62

POINTS ASSY. (DENSO) This part replaces 30200-028-013.

30200-107-014

$58.62

POINTS ASSY. (DENSO)

30200-107-014

$58.62

POINTS (KOKUSAN)

30202-028-003

Unavailable

POINTS (DENSO)

30202-107-004

$43.04

POINTS (TOYO)

30202-107-154

$27.89

POINTS (DENSO) This part replaces 30202-216-004.

30202-107-004

$43.04

POINTS This part replaces 30220-028-003.

30220-028-004

Unavailable

POINTS

30220-028-004

Unavailable

POINTS This part replaces 30220-028-005.

30220-028-004

Unavailable

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) This part replaces 30220-053-003.

30220-053-154

Unavailable

ADVANCER ASSY., SPARK (DENSO) | Use from Engine SN 122551

30220-053-004

Unavailable

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-053-154

Unavailable

CONDENSER

30250-052-000

$23.28

OIL SEAL (13X22X5) This part replaces 30362-028-000.

91201-028-005

$8.11

OIL SEAL (13X22X5) This part replaces 91201-028-000.

91201-028-005

$8.11

OIL SEAL (13X22X5)

91201-028-005

$8.11

COVER, POINTS

30370-028-000

Unavailable

GASKET, POINT COVER This part replaces 30391-028-000.

30391-459-952

$4.21

GASKET, POINT COVER This part replaces 30391-459-950.

30391-459-952

$4.21

GASKET, POINTS BASE (NOT AVAILABLE) | Use up to Engine SN 121320

30392-028-010

Unavailable

GASKET, POINTS BASE | Use from Engine SN 121321 This part replaces 30392-028-020.

30392-028-306

Unavailable

GASKET, POINTS BASE | Use from Engine SN 121321

30392-028-306

Unavailable

COIL, IGNITION This part replaces 30400-046-000.

30530-102-780

Unavailable

COIL, IGNITION This part replaces 30400-046-156.

30530-102-780

Unavailable

COIL, IGNITION

30530-102-780

Unavailable

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

CLIP, COIL CABLE

32906-028-000

Unavailable

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

WASHER, SEALING (6MM)

90441-028-010

$2.92

WASHER (5MM)

90482-028-000

$2.09

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

SCREW, PAN (5X10)

93500-05010-0A

$1.49

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, OVAL (5X25) (NOT AVAILABLE) This part replaces 93700-05025.

93700-05025-02

Unavailable

SCREW, OVAL (5X25)

93700-05025-0A

$1.49

SCREW, OVAL (5X25) (NOT AVAILABLE)

93700-05025-02

Unavailable
