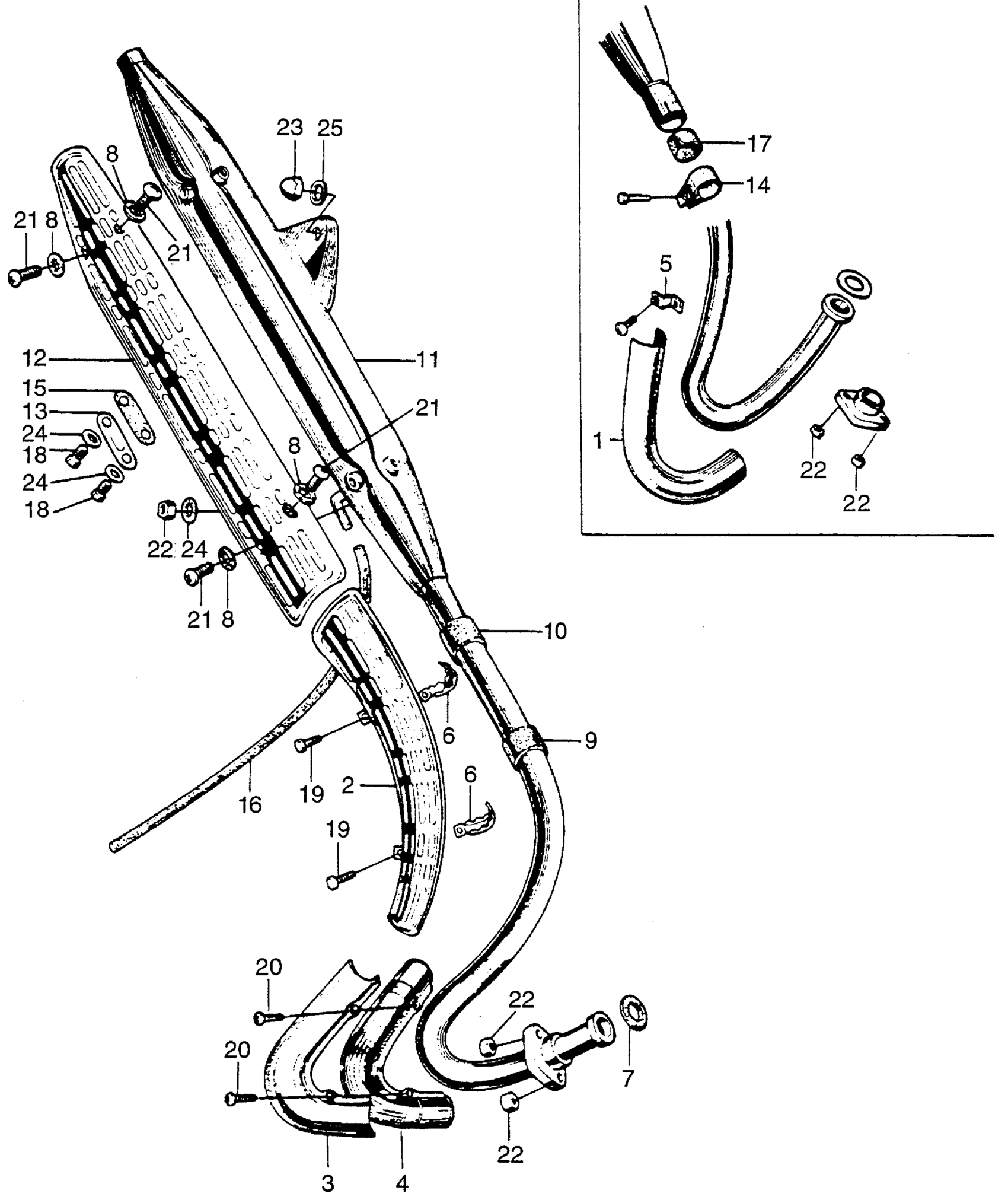

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 MUFFLER Diagram

#

Description
Price

1

COVER, EX. (NOT AVAILABLE) | Use up to Frame SN 122550

18240-053-000

Unavailable

2

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18241-033-000

Unavailable

3

COVER A, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 122551

18241-053-000

Unavailable

4

COVER B, EX. PIPE (NOT AVAILABLE) This part replaces 18242-053-000.

18242-053-010

Unavailable

4

COVER B, EX. PIPE (NOT AVAILABLE)

18242-053-010

Unavailable

5

BAND B, EX. COVER MOUNT | Use up to Frame SN 122550

18272-220-000

Unavailable

6

BAND, PROTECTOR SETTING | Use up to Frame SN 122550

18281-011-000

$6.17

7

GASKET, EX. PIPE | Use up to Frame SN 122550 This part replaces 18291-028-000.

18291-028-306

$7.30

7

GASKET, EX. PIPE | Use up to Frame SN 122550

18291-028-306

$7.30

8

GASKET, PROTECTOR | Use up to Frame SN 122550

18292-167-890

$1.88

8

GASKET, PROTECTOR | Use up to Frame SN 122550 This part replaces 18292-254-000.

18292-167-890

$1.88

9

GASKET, MUFFLER | Use up to Frame SN 122550 This part replaces 18293-011-000.

18391-HB7-000

$11.62

9

GASKET, MUFFLER | Use up to Frame SN 122550 This part replaces 18293-033-000.

18391-HB7-000

$11.62

9

GASKET, MUFFLER | Use up to Frame SN 122550

18391-HB7-000

$11.62

10

GASKET, MUFFLER | Use up to Frame SN 122550 This part replaces 18293-035-000.

18391-HB7-000

$11.62

10

GASKET, MUFFLER | Use up to Frame SN 122550

18391-HB7-000

$11.62

11

MUFFLER (NOT AVAILABLE)

18300-053-017

Unavailable

12

PROTECTOR, MUFFLER (NOT AVAILABLE)

18361-033-000

Unavailable

13

LID, MUFFLER (NOT AVAILABLE)

18371-001-810

Unavailable

14

BAND, EX. DIFFUSER (NOT AVAILABLE) | Use up to Frame SN 112382

18371-030-000

Unavailable

15

GASKET, MUFFLER LID (NOT AVAILABLE)

18372-001-810

Unavailable

16

PIPE, MUFFLER DRAIN

18381-011-010

Unavailable

17

GASKET, MUFFLER (NOT AVAILABLE) | Use up to Frame SN 112382

18391-034-000

Unavailable

18

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

18

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

19

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

19

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

19

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

19

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

20

SCREW, PAN (5X14)

93500-05014-0A

$1.49

21

SCREW, OVAL (6X10) This part replaces 93700-06010.

93700-06010-0A

$1.49

21

SCREW, OVAL (6X10)

93700-06010-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, CAP (8MM)

94021-08020-0S

$1.82

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49
