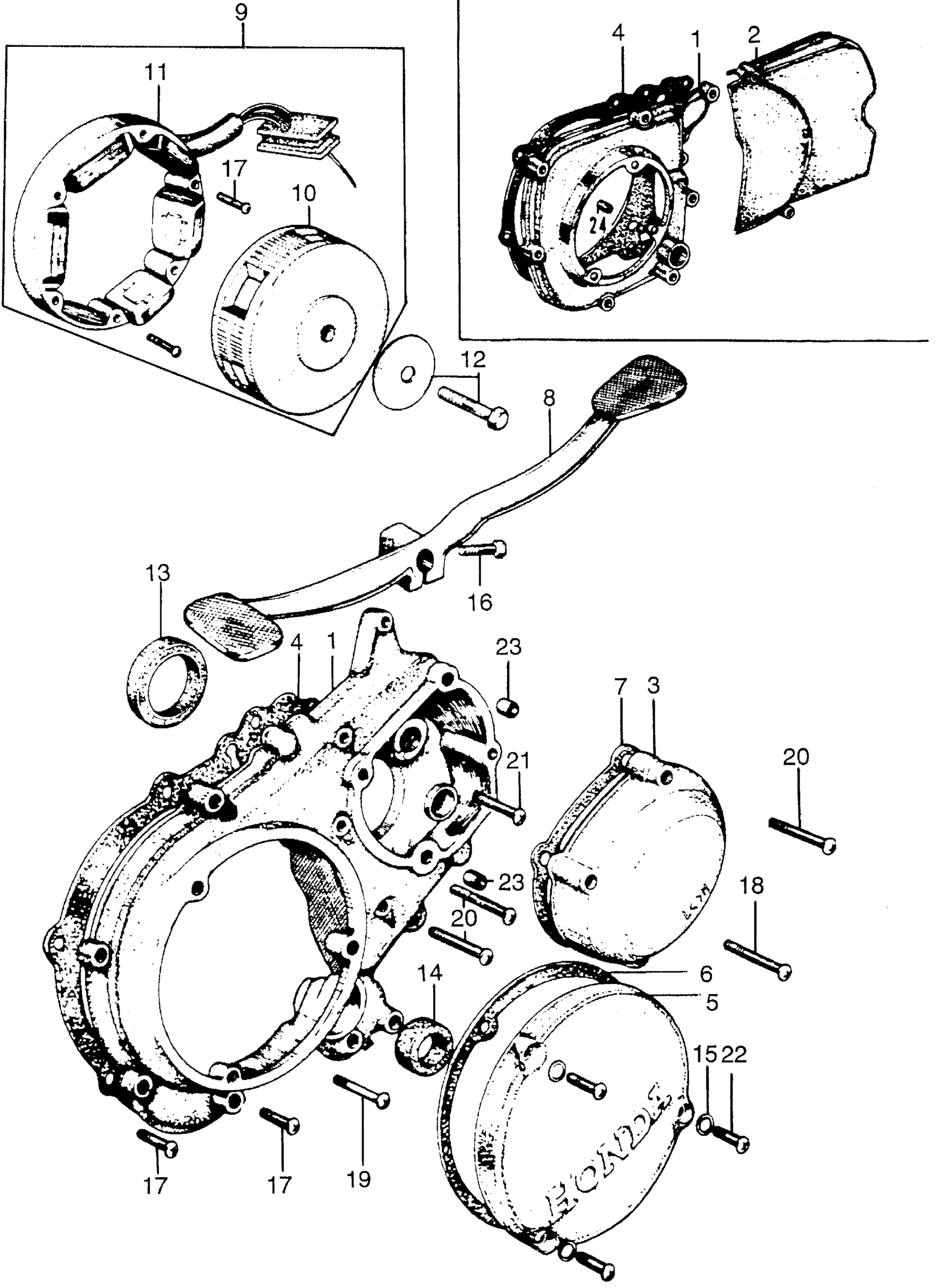

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 122550

11341-052-000

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 122551 to 142700 This part replaces 11341-053-040.

11341-053-050

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 122551

11341-053-050

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 122550

11361-046-000

Unavailable

3

COVER, SUB-TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 122551

11371-053-020

Unavailable

4

GASKET, L. | Use up to Engine SN 122550 This part replaces 11394-028-020.

11394-028-307

Unavailable

4

GASKET, L. CRANKCASE COVER | Use from Engine SN 122551 This part replaces 11395-053-010.

11395-053-306

Unavailable

4

GASKET, L. CRANKCASE COVER | Use from Engine SN 122551

11395-053-306

Unavailable

5

COVER, ALTERNATOR (NOT AVAILABLE)

11431-028-000

Unavailable

6

GASKET, ALTERNATOR COVER This part replaces 11691-028-000.

11691-028-306

Unavailable

6

GASKET, ALTERNATOR COVER

11691-028-306

Unavailable

7

GASKET | Use from Engine SN 122551 to 142700 This part replaces 11693-053-020.

11693-053-405

Unavailable

7

GASKET | Use from Engine SN 142701 This part replaces 11693-053-030.

11693-459-962

$6.72

7

GASKET | Use from Engine SN 142701 This part replaces 11693-053-306.

11693-459-962

$6.72

7

GASKET | Use from Engine SN 142701 This part replaces 11693-459-960.

11693-459-962

$6.72

8

PEDAL, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 122550

24701-053-000

Unavailable

8

PEDAL, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 122551 This part replaces 24701-053-010.

24701-102-700

Unavailable

8

PEDAL, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 122551

24701-102-700

Unavailable

9

ALTERNATOR | Use up to Engine SN 122550

31100-046-004

Unavailable

9

ALTERNATOR | Use from Engine SN 122551 This part replaces 31100-053-003.

31100-053-013

Unavailable

9

ALTERNATOR | Use from Engine SN 122551

31100-053-013

Unavailable

10

ROTOR (NOT AVAILABLE) | Use up to Engine SN 122550

31101-028-004

Unavailable

10

ROTOR | Use up to Engine SN 122550

31101-052-003

Unavailable

10

ROTOR (KOKUSAN) (NOT AVAILABLE) | Use from Engine SN 122551

31101-053-003

Unavailable

10

ROTOR (DENSO) (NOT AVAILABLE) | Use from Engine SN 122551

31101-053-004

Unavailable

11

STATOR ASSY. (NOT AVAILABLE)

31102-046-003

Unavailable

11

STATOR ASSY. (NOT AVAILABLE) This part replaces 31102-046-004.

31102-046-014

Unavailable

11

STATOR ASSY. (NOT AVAILABLE)

31102-046-014

Unavailable

12

BOLT A1, ROTOR This part replaces 31104-028-000.

95015-11100

Unavailable

12

BOLT A1, ROTOR

95015-11100

Unavailable

13

OIL SEAL (31X43X8) | Use from Engine SN 122551 This part replaces 91202-053-000.

91202-459-771

$9.80

13

OIL SEAL (31X43X8) | Use from Engine SN 122551 This part replaces 91202-053-005.

91202-459-771

$9.80

13

OIL SEAL (31X43X8) | Use from Engine SN 122551

91202-459-771

$9.80

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

14

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

15

O-RING (5.5X1.5)

91301-216-000

$2.38

16

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

16

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

16

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

17

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

18

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

18

SCREW, PAN (6X30)

93500-06030-0A

$1.49

19

SCREW, PAN (6X35)

93500-06035-0A

$1.49

19

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40)

93500-06040-0A

$1.49

21

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

21

SCREW, PAN (6X45)

93500-06045-0A

$1.49

22

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 90141-028-000.

93700-06018-02

Unavailable

22

SCREW, OVAL (6X18) (NOT AVAILABLE) This part replaces 93700-06018-0B.

93700-06018-02

Unavailable

22

SCREW, OVAL (6X18) (NOT AVAILABLE)

93700-06018-02

Unavailable

23

PIN A, DOWEL (8X12)

94301-08120

$2.19

24

PIN A, DOWEL (10X14)

94301-10140

$2.28
