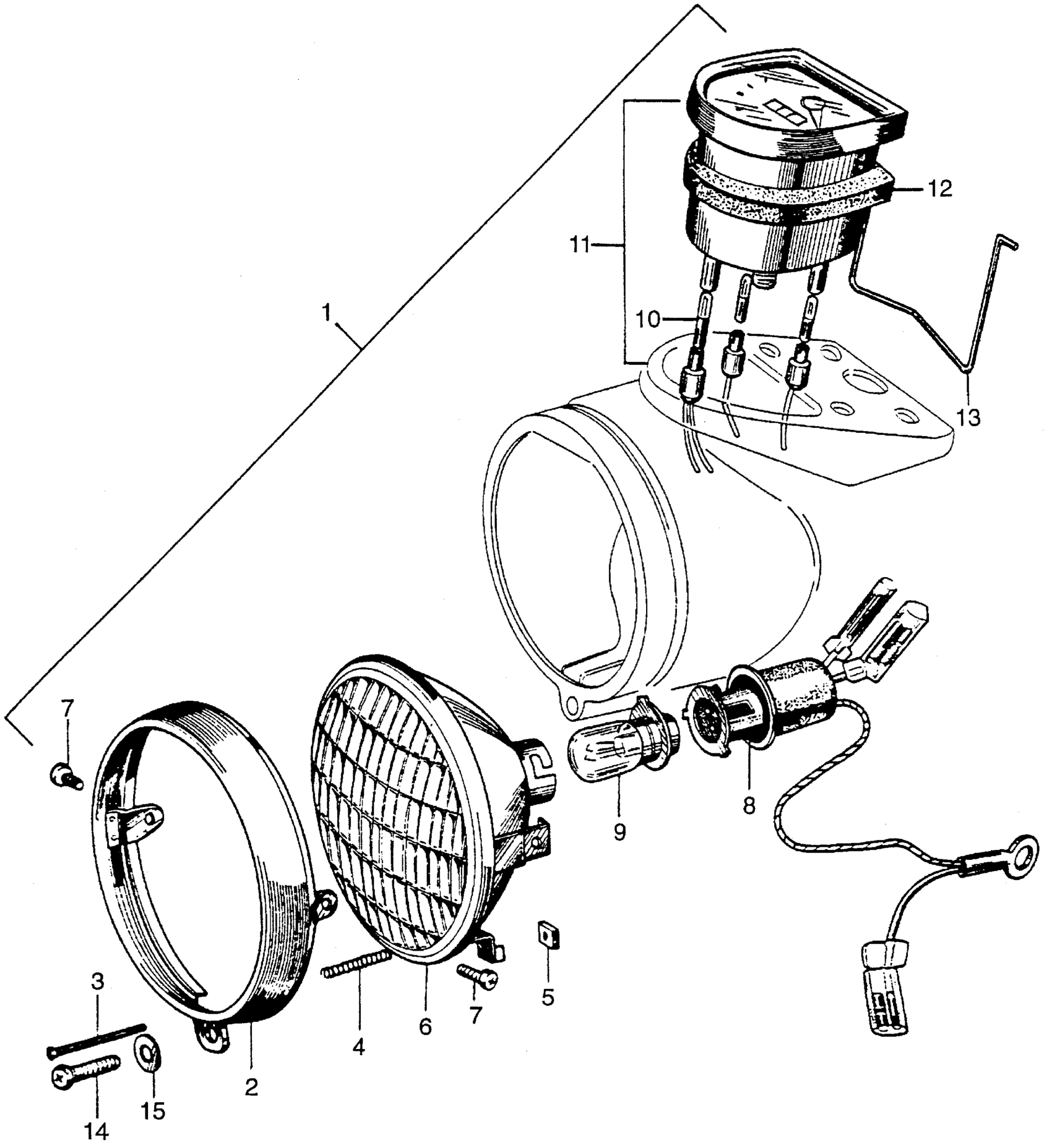

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-030-810

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-030-810

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) | Use from Frame SN 184412

33102-041-003

$2.04

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) | Use from Frame SN 184412 This part replaces 33102-041-670.

33102-041-003

$2.04

3

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) | Use up to Frame SN 184411 This part replaces 33107-001-003.

33107-001-020

Unavailable

3

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) | Use up to Frame SN 184411

33107-001-020

Unavailable

4

SPRING, HEADLIGHT SETTING This part replaces 33107-030-000.

33107-030-003

$2.32

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.32

5

NUT, HEADLIGHT BEAM ADJ. | Use up to Frame SN 184411

33117-001-003

Unavailable

5

NUT, BEAM ADJ. | Use from Frame SN 184412

33117-041-003

$1.78

6

HEADLIGHT UNIT (NOT AVAILABLE)

33120-030-810

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 184411 This part replaces 33124-259-000.

33125-200-030

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 184411 This part replaces 33125-200-020.

33125-200-030

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 184412

33125-200-030

Unavailable

8

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-030-810

Unavailable

9

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$8.60

9

BULB, HEADLIGHT (6V25/25W) (STANLEY) This part replaces 34901-030-671.

34901-030-003

$8.60

9

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$8.60

10

BULB, SPEEDOMETER (6V1.5W) (STANLEY)

34908-001-000

$5.19

11

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 185981

37200-033-000

Unavailable

12

GASKET, SPEEDOMETER (NOT AVAILABLE)

37242-030-000

Unavailable

13

SPRING, SPEEDOMETER SETTING (NOT AVAILABLE)

61321-030-000

Unavailable

14

SCREW, PAN (5X12)

93500-05012-0A

$0.83

14

SCREW, PAN (5X12)

93500-05012-0B

Unavailable

15

WASHER, PLAIN (5MM)

94101-05000

$0.90
