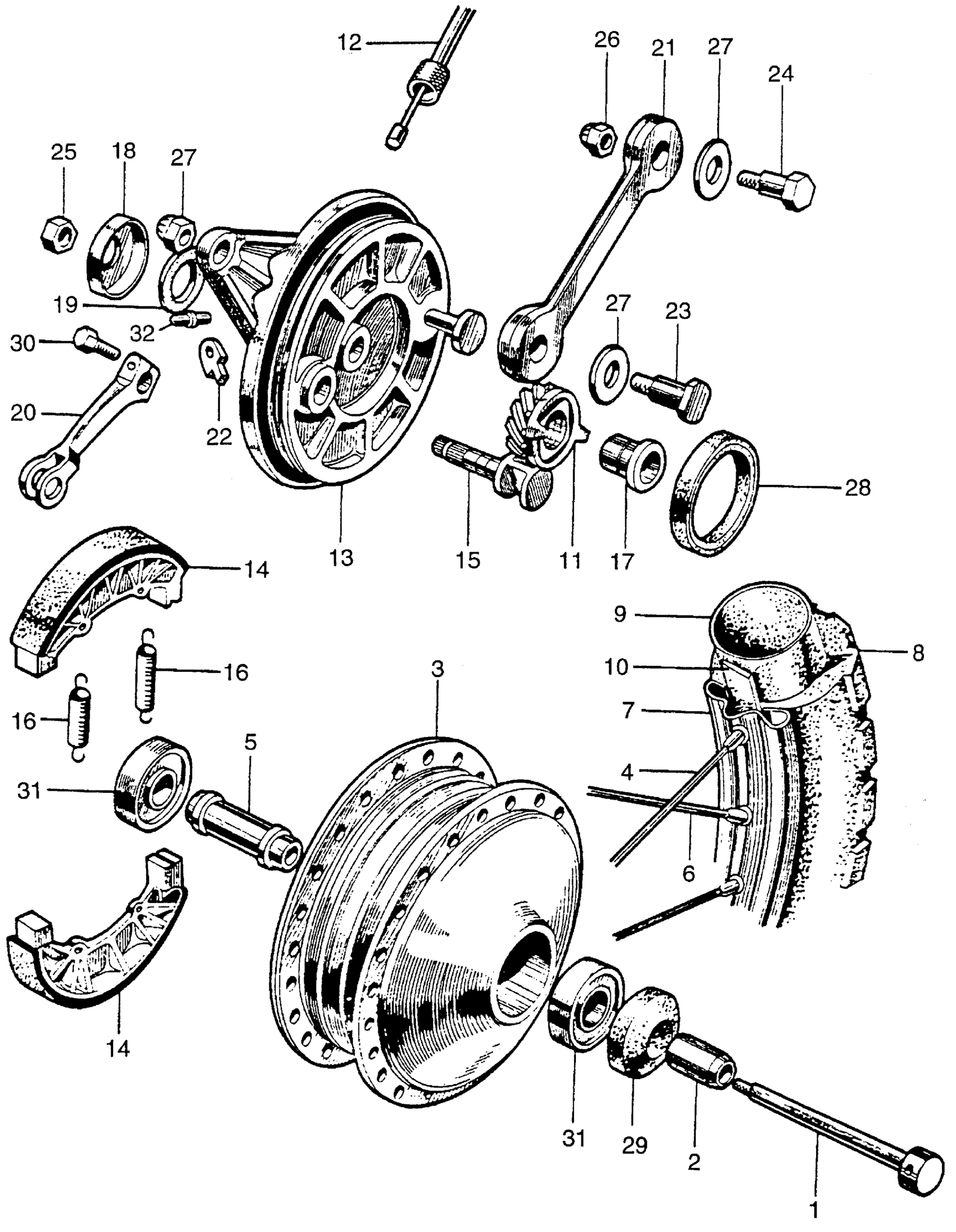

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 431A2-430-000.

06430-430-405

Unavailable

1

AXLE, FR. WHEEL This part replaces 44301-030-000.

44301-096-650

Unavailable

1

AXLE, FR. WHEEL This part replaces 44301-046-010.

44301-096-650

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 184412

44301-076-000

Unavailable

1

AXLE, FR. WHEEL

44301-096-650

Unavailable

2

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-030-000

Unavailable

3

HUB, FR. WHEEL (NOT AVAILABLE)

44601-030-000

Unavailable

4

SPOKE A, FR.

44618-001-020

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-030-000

Unavailable

6

SPOKE A (12X162) This part replaces 44660-001-020.

97351-21164-10

$3.21

6

SPOKE A (12X162)

97351-21164-10

$3.21

6

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21

7

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$77.20

7

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

7

RIM, RR. WHEEL This part replaces 44701-030-000.

42701-102-794

$77.20

7

RIM, RR. WHEEL This part replaces 44701-030-003.

42701-102-794

$77.20

7

RIM, RR. WHEEL This part replaces 44701-102-791.

42701-102-794

$77.20

8

TIRE, FR. (2.75-17) (NITTO) (NOT AVAILABLE)

44711-030-810

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

9

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

10

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

10

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

11

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-030-000

Unavailable

12

CABLE, SPEEDOMETER This part replaces 44830-030-000.

44830-159-000

Unavailable

12

CABLE, SPEEDOMETER This part replaces 44830-061-810.

44830-159-000

Unavailable

12

CABLE, SPEEDOMETER

44830-159-000

Unavailable

13

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-030-000

Unavailable

14

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE)

45131-030-000

Unavailable

16

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

16

SPRING, BRAKE SHOE

45133-028-000

$2.03

17

SPACER, FR. BRAKE PANEL (NOT AVAILABLE)

45141-030-000

Unavailable

18

CAP, FR. BRAKE PANEL DUST SEAL (NOT AVAILABLE)

45142-030-000

Unavailable

19

RING, FR. BRAKE PANEL FELT (NOT AVAILABLE)

45143-011-000

Unavailable

20

ARM, FR. BRAKE This part replaces 45410-030-000.

45410-030-315

Unavailable

20

ARM, FR. BRAKE This part replaces 45410-030-010.

45410-030-315

Unavailable

21

LINK, FR. BRAKE (NOT AVAILABLE)

45431-001-000

Unavailable

22

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

23

BOLT, FR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90104-011-000

Unavailable

24

BOLT, FR. BRAKE TORQUE (NOT AVAILABLE)

90126-030-010

Unavailable

25

NUT, AXLE (NOT AVAILABLE) | Use up to Frame SN 184411

90305-001-000

Unavailable

25

NUT, AXLE (NOT AVAILABLE) | Use from Frame SN 184412

90305-046-000

Unavailable

26

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

27

WASHER (8.3MM)

90534-011-000

$1.49

28

OIL SEAL (47X58X7) This part replaces 91251-030-000.

91251-030-003

Unavailable

28

OIL SEAL (47X58X7)

91251-030-003

Unavailable

29

OIL SEAL (23X37X7) This part replaces 91252-030-000.

91252-030-003

Unavailable

29

OIL SEAL (23X37X7)

91252-030-003

Unavailable

29

OIL SEAL (23X37X7) This part replaces 91252-030-005.

91252-030-003

Unavailable

30

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

30

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

30

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

31

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

31

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

32

FITTING, GREASE (A.45)

96201-30001

$1.49
