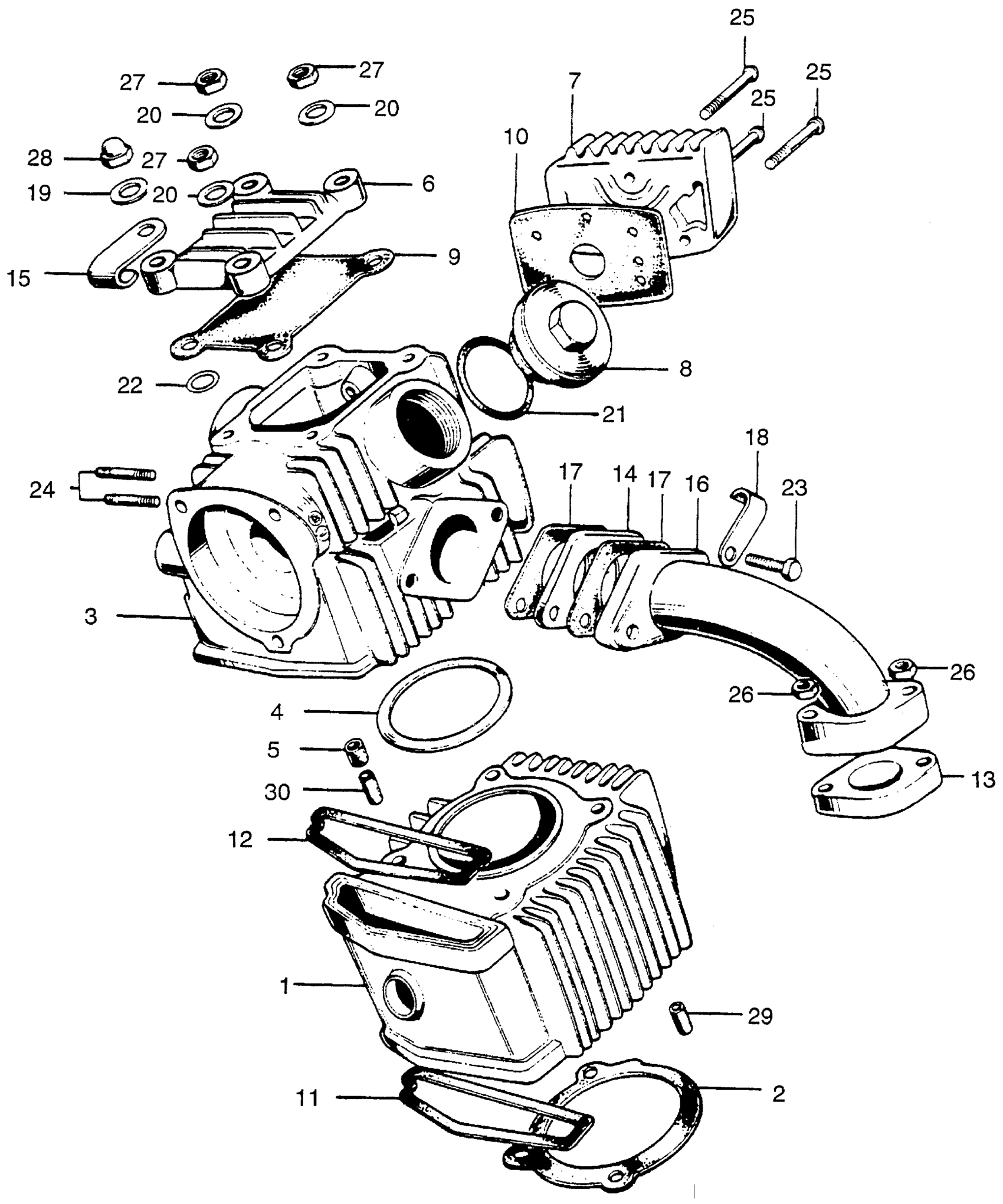

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) | Use up to Engine SN 194221 This part replaces 12100-028-120.

12100-028-150

Unavailable

1

CYLINDER (NOT AVAILABLE)

12100-028-150

Unavailable

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-056-670.

12100-028-150

Unavailable

2

GASKET, CYLINDER This part replaces 12191-028-020.

12191-121-630

Unavailable

2

GASKET, CYLINDER This part replaces 12191-028-306.

12191-121-630

Unavailable

2

GASKET, CYLINDER

12191-121-630

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-080.

12200-028-100

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-028-090.

12200-028-100

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-028-100

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 188272

12200-028-120

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 122551 to 188271

12200-053-010

Unavailable

4

GASKET, CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 120000

12251-028-010

Unavailable

4

GASKET, CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 120000 This part replaces 12251-028-020.

12251-028-010

Unavailable

4

GASKET, CYLINDER HEAD | Use from Engine SN 120001

12251-028-030

Unavailable

5

GASKET, CYLINDER STUD This part replaces 12261-028-000.

12261-105-690

$7.41

5

GASKET, CYLINDER STUD

12261-105-690

$7.41

6

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12301-028-000.

12301-028-010

Unavailable

6

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-028-010

Unavailable

7

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

7

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

8

CAP, VALVE ADJ.

12361-028-000

$7.89

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

Unavailable

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

Unavailable

9

GASKET, CYLINDER HEAD COVER

12391-121-630

Unavailable

10

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

Unavailable

10

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

Unavailable

10

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

Unavailable

11

GASKET A, CAM CHAIN CHAMBER

12901-028-020

Unavailable

12

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-028-020.

12902-121-710

Unavailable

12

GASKET B, CAM CHAIN CHAMBER This part replaces 12902-105-690.

12902-121-710

Unavailable

12

GASKET B, CAM CHAIN CHAMBER

12902-121-710

Unavailable

12

GASKET, CARBURETOR | Use up to Engine SN 122550 This part replaces 16201-046-000.

16201-046-306

Unavailable

13

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 122550 This part replaces 16211-046-000.

16211-046-306

Unavailable

13

INSULATOR, CARB | Use from Engine SN 188272 This part replaces 16211-077-010.

16211-077-306

Unavailable

14

INSULATOR, INLET PIPE (NOT AVAILABLE) | Use from Engine SN 122551 to 188271

16212-053-000

Unavailable

15

CLIP, OVERFLOW TUBE (NOT AVAILABLE) | Use up to Engine SN 122550

16245-046-000

Unavailable

16

PIPE, INLET (NOT AVAILABLE) | Use up to Engine SN 122550

17111-046-000

Unavailable

16

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 122551 to 188271

17111-053-010

Unavailable

16

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 188272

17111-053-020

Unavailable

17

GASKET, IN. PIPE | Use up to Engine SN 122550 This part replaces 17119-046-000.

17119-046-306

$4.69

17

GASKET, IN. PIPE | Use up to Engine SN 122550

17119-046-306

$4.69

17

GASKET, IN. PIPE | Use from Engine SN 188272

17119-046-306

$4.69

17

GASKET, IN. PIPE (NOT AVAILABLE) | Use from Engine SN 122551 to 188271

17119-053-000

Unavailable

18

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

19

WASHER, SEAL (8MM) | Use from Engine SN 121321 This part replaces 90441-216-000.

90441-286-000

$1.72

19

WASHER, SEAL (8MM) | Use from Engine SN 121321 This part replaces 90441-259-000.

90441-286-000

$1.72

19

WASHER, SEAL (8MM) | Use from Engine SN 121321

90441-286-000

$1.72

20

WASHER (8MM)

90483-028-000

$1.38

21

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.18

21

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.18

21

O-RING (33.5X3.0)

91304-HB3-003

$7.18

22

O-RING (7.3X2.2) (NOK) | Use up to Engine SN 121320 This part replaces 91301-PD6-003.

91301-P2F-A01

$2.80

22

O-RING (7.3X2.2) (NOK) | Use up to Engine SN 121320 This part replaces 91301-PM7-003.

91301-P2F-A01

$2.80

22

O-RING (7.3X2.2) (NOK) | Use up to Engine SN 121320 This part replaces 91305-028-000.

91301-P2F-A01

$2.80

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.41

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.41

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

24

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.48

24

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.48

24

BOLT, STUD (6X18)

92900-06018-0B

$1.48

25

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

25

SCREW, PAN (6X20)

93500-06020-0A

$0.93

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM)

94001-06200-0S

$1.19

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

27

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$0.97

27

NUT, HEX. (8MM)

94030-08000

$0.97

27

NUT, HEX. (8MM)

94030-08000

$0.97

27

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$0.97

28

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.48

28

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.48

28

NUT, CAP (8MM)

94021-08000-0S

$1.48

28

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.48

29

PIN A, DOWEL (10X14)

94301-10140

$2.25

30

PIN A, DOWEL (10X20)

94301-10200

$2.32
