- CT90A MOTORCYCLE, JPN, VIN# CT90-100001
CRANKSHAFT + PISTON

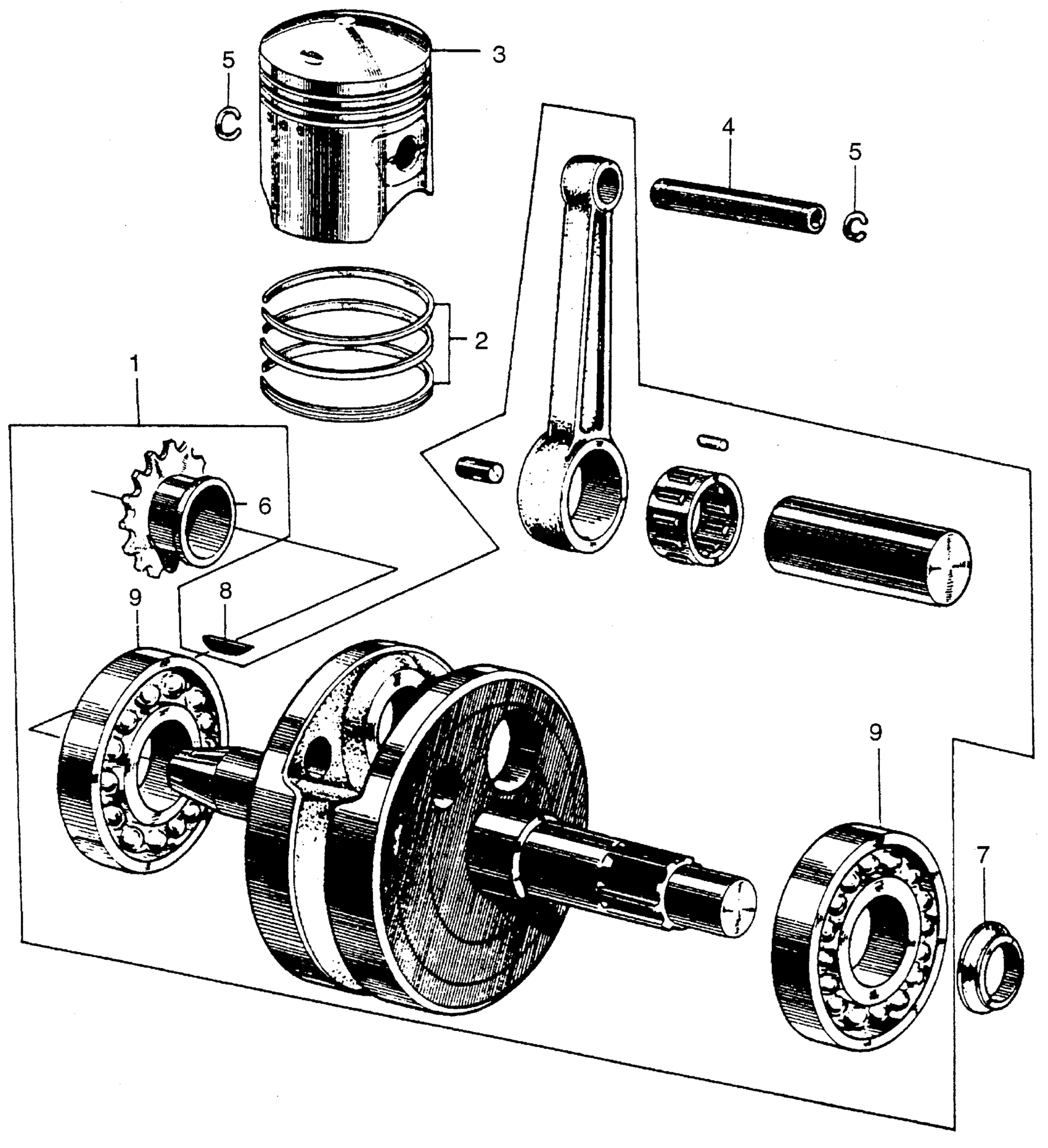

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 CRANKSHAFT + PISTON Diagram
#
1
CRANKSHAFT ASSY. | Use up to Engine SN 121180
13000-028-030
Unavailable
1
CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 121181
13000-028-040
Unavailable
2
RING SET, PISTON (OS 0.25)
130A1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50)
130B1-121-762
Unavailable
2
RING SET, PISTON (0.75)
130C1-121-762
Unavailable
2
RING SET, PISTON (1.00)
130D1-121-762
Unavailable
2
RING SET, PISTON (OS 0.25) This part replaces 13020-028-000.
130A1-121-762
Unavailable
2
RING SET, PISTON (OS 0.25) This part replaces 13020-028-020.
130A1-121-762
Unavailable
2
RING SET, PISTON (OS 0.25) This part replaces 13020-028-025.
130A1-121-762
Unavailable
2
RING SET, PISTON (OS 0.25) This part replaces 13020-028-035.
130A1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13030-028-000.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13030-028-020.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13030-028-025.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13030-028-035.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13030-121-732.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13031-028-005.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13031-102-732.
130B1-121-762
Unavailable
2
RING SET, PISTON (OS 0.50) This part replaces 13031-102-733.
130B1-121-762
Unavailable
2
RING SET, PISTON (0.75) This part replaces 13040-028-000.
130C1-121-762
Unavailable
2
RING SET, PISTON (0.75) This part replaces 13040-028-020.
130C1-121-762
Unavailable
2
RING SET, PISTON (0.75) This part replaces 13040-028-025.
130C1-121-762
Unavailable
2
RING SET, PISTON (0.75) This part replaces 13040-028-035.
130C1-121-762
Unavailable
2
RING SET, PISTON (0.75) This part replaces 13040-121-732.
130C1-121-762
Unavailable
2
RING SET, PISTON (1.00) This part replaces 13050-028-000.
130D1-121-762
Unavailable
2
RING SET, PISTON (1.00) This part replaces 13050-028-020.
130D1-121-762
Unavailable
2
RING SET, PISTON (1.00) This part replaces 13050-028-025.
130D1-121-762
Unavailable
2
RING SET, PISTON (1.00) This part replaces 13050-028-035.
130D1-121-762
Unavailable
2
RING SET, PISTON (1.00) This part replaces 13050-121-732.
130D1-121-762
Unavailable
3
PISTON (STD) This part replaces 13101-028-040.
13101-028-070
Unavailable
3
PISTON (STD) This part replaces 13101-028-050.
13101-028-070
Unavailable
3
PISTON (STD)
13101-028-070
Unavailable
3
PISTON (STD) This part replaces 13101-028-323.
13101-028-070
Unavailable
3
PISTON (OS 0.50) This part replaces 13103-028-040.
13103-028-070
Unavailable
3
PISTON (OS 0.50) This part replaces 13103-028-050.
13103-028-070
Unavailable
3
PISTON (OS 0.50)
13103-028-070
Unavailable
3
PISTON (OS 0.50) This part replaces 13103-028-323.
13103-028-070
Unavailable
3
PISTON (0.75) This part replaces 13104-028-040.
13104-028-070
Unavailable
3
PISTON (0.75) This part replaces 13104-028-050.
13104-028-070
Unavailable
3
PISTON (0.75)
13104-028-070
Unavailable
3
PISTON (0.75) This part replaces 13104-028-323.
13104-028-070
Unavailable
3
PISTON (1.00) This part replaces 13105-028-040.
13105-028-070
Unavailable
3
PISTON (1.00) This part replaces 13105-028-050.
13105-028-070
Unavailable
3
PISTON (1.00)
13105-028-070
Unavailable
3
PISTON (1.00) This part replaces 13105-028-323.
13105-028-070
Unavailable
6
SPROCKET, TIMING (15T)
14311-028-010
Unavailable
7
COLLAR (20MM) (NOT AVAILABLE)
22911-046-000
Unavailable
8
KEY, WOODRUFF
90741-253-000
Unavailable
