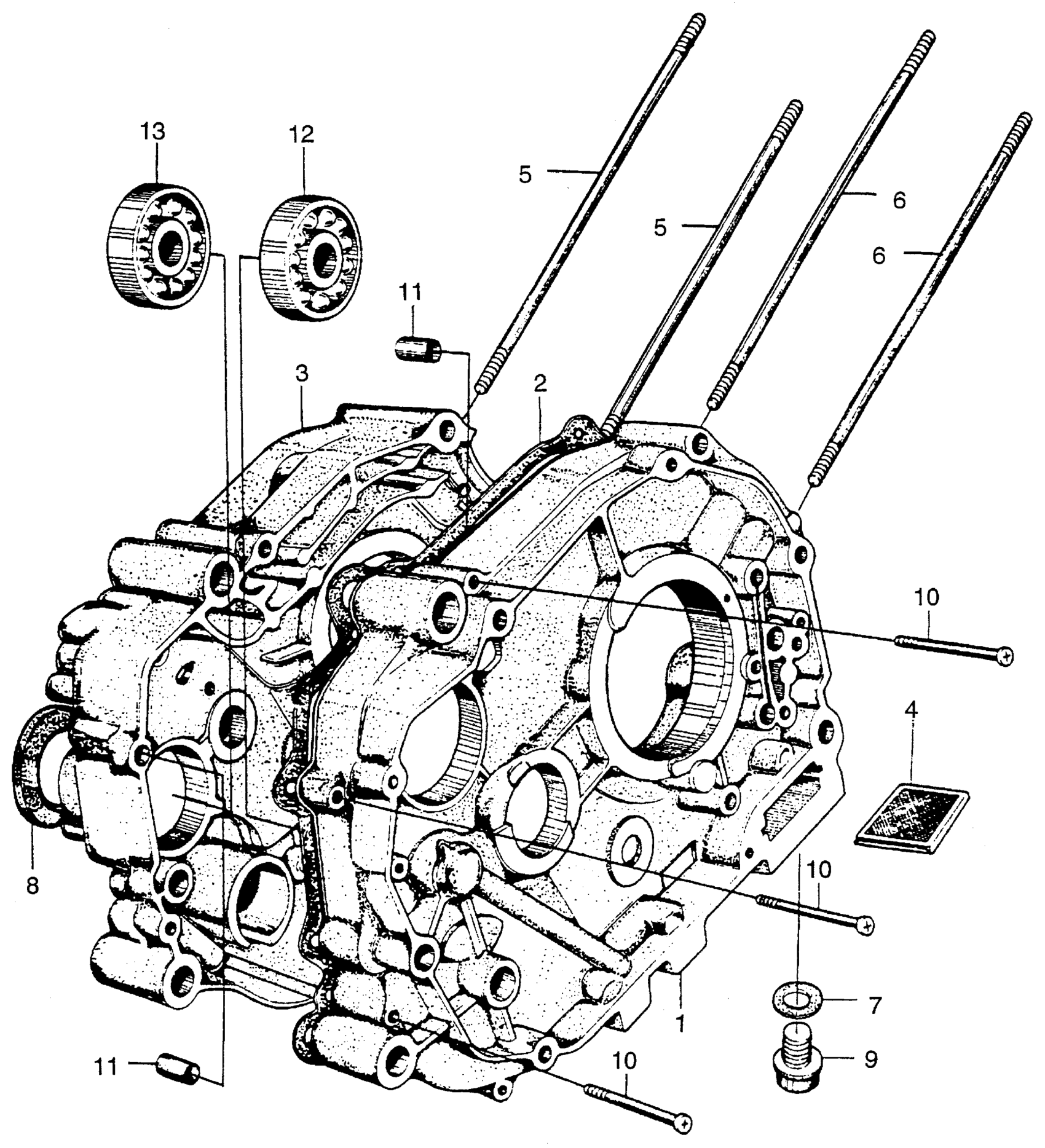

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 CRANKCASE + CYLINDER STUD Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 116235

11100-052-010

Unavailable

1

CRANKCASE, R. | Use from Engine SN 166236 to 185781

11100-052-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 185782

11100-052-040

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-052-000.

11191-052-306

Unavailable

3

CRANKCASE, L. | Use up to Engine SN 122550

11200-052-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-053-010

Unavailable

3

CRANKCASE, L. | Use from Engine SN 185782

11200-053-060

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

BOLT A, CYLINDER STUD

90031-028-010

Unavailable

6

BOLT B, CYLINDER STUD

90032-028-020

Unavailable

7

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

7

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

7

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

8

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

8

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

8

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

8

OIL SEAL (20X34X7)

91201-030-015

Unavailable

8

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

8

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

8

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

9

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

10

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

10

SCREW, PAN (6X40)

93500-06040-0A

$1.49

11

PIN A, DOWEL (10X14)

94301-10140

$2.28

12

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

12

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

13

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

13

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
