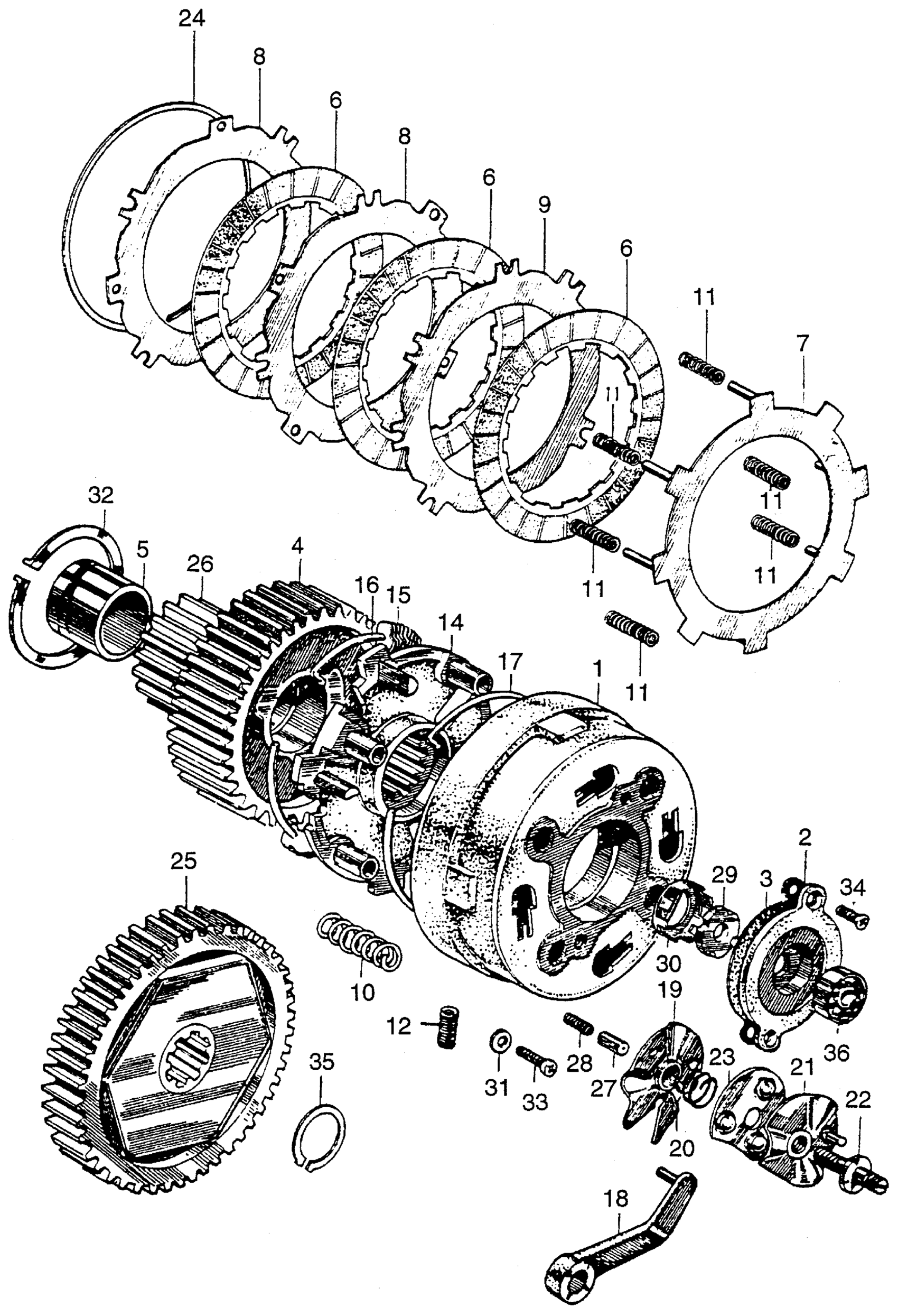

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22101-046-000.

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE)

22101-046-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 119671 to 184411 This part replaces 22101-046-020.

22101-046-040

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 119671 This part replaces 22101-046-030.

22101-046-040

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 119671

22101-046-040

Unavailable

2

COVER, CLUTCH (OUTER) | Use up to Engine SN 106800 This part replaces 22111-028-000.

22111-028-010

Unavailable

2

COVER, CLUTCH (OUTER)

22111-028-010

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22112-028-000.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-028-306.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-121-630.

22112-121-632

$3.60

4

CENTER, CLUTCH (NOT AVAILABLE)

22012-046-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-033-000.

22012-046-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22121-046-000.

22012-046-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 184412

22121-046-020

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-028-000.

22131-121-690

Unavailable

5

GUIDE, CLUTCH CENTER This part replaces 22131-030-000.

22131-121-690

Unavailable

5

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

6

DISK, CLUTCH FRICTION | Use up to Engine SN 146310 This part replaces 22201-033-010.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-046-000.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-096-000.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-306.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-690.

22201-121-631

$17.82

7

PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22310-033-000.

22311-046-000

Unavailable

7

PLATE A, CLUTCH (NOT AVAILABLE)

22311-046-000

Unavailable

8

PLATE B, CLUTCH | Use up to Engine SN 146310 This part replaces 22321-033-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use up to Engine SN 146310 This part replaces 22321-046-010.

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use from Engine SN 146311 to 188271 This part replaces 22321-046-010.

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use from Engine SN 188272 This part replaces 22321-046-010.

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use up to Engine SN 146310

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use from Engine SN 146311 to 188271

22321-046-020

$9.83

8

PLATE B, CLUTCH | Use from Engine SN 188272

22321-046-020

$9.83

9

PLATE C, CLUTCH | Use up to Engine SN 146310 This part replaces 22331-033-000.

22331-046-000

$9.37

9

PLATE C, CLUTCH | Use up to Engine SN 146310

22331-046-000

$9.37

9

PLATE C, CLUTCH | Use from Engine SN 146311

22331-046-000

$9.37

9

PLATE D, CLUTCH | Use from Engine SN 188272 This part replaces 22341-046-000.

22341-943-000

$11.82

9

PLATE D, CLUTCH | Use from Engine SN 188272

22341-943-000

$11.82

10

SPRING, CLUTCH | Use up to Engine SN 146310 This part replaces 22401-033-020.

22401-046-000

Unavailable

10

SPRING, CLUTCH

22401-046-000

Unavailable

11

SPRING, CLUTCH FREE (NOT AVAILABLE) | Use up to Engine SN 184411

22411-053-000

Unavailable

11

SPRING, CLUTCH FREE | Use from Engine SN 184412 This part replaces 22411-053-010.

22411-053-030

$4.44

11

SPRING, CLUTCH FREE | Use from Engine SN 184412

22411-053-030

$4.44

12

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

12

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

13

SPRING, CLUTCH SUB-FREE | Use from Engine SN 146311 to 184411

22431-046-000

Unavailable

13

SPRING, CLUTCH SUB-FREE | Use from Engine SN 184412

22431-046-010

Unavailable

14

PLATE, DRIVE (NOT AVAILABLE) | Use up to Engine SN 121180

22511-033-010

Unavailable

14

PLATE, DRIVE | Use from Engine SN 121181 to 184411 This part replaces 22511-046-000.

22511-046-010

Unavailable

14

PLATE, DRIVE | Use from Engine SN 121181

22511-046-010

Unavailable

15

WEIGHT, CLUTCH This part replaces 22531-033-010.

22531-033-020

Unavailable

15

WEIGHT, CLUTCH

22531-033-020

Unavailable

16

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

17

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

18

LEVER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 122550

22811-046-000

$22.26

18

LEVER, CLUTCH | Use from Engine SN 122551

22811-046-010

Unavailable

19

PLATE, CLUTCH CAM | Use up to Engine SN 194221 This part replaces 22820-046-000.

22820-046-010

Unavailable

19

PLATE, CLUTCH CAM | Use up to Engine SN 194221

22820-046-010

Unavailable

19

PLATE, CLUTCH CAM | Use from Engine SN 194422 This part replaces 22820-918-000.

22820-918-020

$20.42

19

PLATE, CLUTCH CAM | Use from Engine SN 194422 This part replaces 22820-918-010.

22820-918-020

$20.42

19

PLATE, CLUTCH CAM | Use from Engine SN 194422

22820-918-020

$20.42

20

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

21

PLATE, CLUTCH LIFTER

22830-046-000

$10.64

22

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE) | Use up to Engine SN 122230

22846-046-000

Unavailable

23

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231 This part replaces 22846-053-010.

22846-053-030

Unavailable

23

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231 This part replaces 22846-053-020.

22846-053-030

Unavailable

23

BOLT, CLUTCH ADJUSTING | Use from Engine SN 122231

22846-053-030

Unavailable

23

RETAINER, CLUTCH BALL

22860-046-000

$7.04

24

SET-RING (101.5MM) | Use up to Engine SN 119670

22901-001-000

$4.02

24

SET-RING (102.5MM) | Use from Engine SN 119671 This part replaces 22901-028-000.

22901-102-700

Unavailable

24

SET-RING (101.5MM) | Use up to Engine SN 119670 This part replaces 22901-035-000.

22901-001-000

$4.02

24

SET-RING (102.5MM) | Use from Engine SN 119671

22901-102-700

Unavailable

25

GEAR, PRIMARY DRIVEN (67T)

23110-028-000

Unavailable

26

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 184411

22012-046-305

Unavailable

26

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 184411 This part replaces 22121-033-000.

22012-046-305

Unavailable

26

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 184411 This part replaces 22121-046-000.

22012-046-305

Unavailable

26

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 122030 This part replaces 23111-033-000.

22012-046-305

Unavailable

26

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 184411 This part replaces 23111-046-000.

22012-046-305

Unavailable

26

GEAR, DRIVE (18T) (NOT AVAILABLE) | Use from Engine SN 184412 This part replaces 23111-046-020.

23111-096-305

Unavailable

26

GEAR, DRIVE (18T) (NOT AVAILABLE) | Use from Engine SN 184412 This part replaces 23111-096-000.

23111-096-305

Unavailable

26

GEAR, DRIVE (18T) (NOT AVAILABLE) | Use from Engine SN 184412

23111-096-305

Unavailable

27

THROUGH, OIL This part replaces 25551-040-007.

25551-GEL-A80

$6.02

27

THROUGH, OIL This part replaces 25551-046-000.

25551-GEL-A80

$6.02

27

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

27

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

28

SPRING, OIL GUIDE This part replaces 25555-033-000.

25555-046-000

Unavailable

28

SPRING, OIL GUIDE

25555-046-000

Unavailable

29

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

30

WASHER, LOCK (16MM) | Use from Engine SN 121181

90431-028-010

$2.75

30

WASHER, LOCKING (16MM) (NOT AVAILABLE) | Use up to Engine SN 121180

90431-030-000

Unavailable

31

WASHER, STOPPER This part replaces 90483-001-000.

90483-041-000

$1.92

31

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

32

CIRCLIP (38MM) (NOT AVAILABLE) | Use from Engine SN 122031

90603-046-000

Unavailable

32

CIRCLIP (39MM) (NOT AVAILABLE) | Use up to Engine SN 122030

90603-703-010

Unavailable

33

BOLT, HEX. (5X8) | Use up to Engine SN 184411 This part replaces 92000-05008.

92101-05008-0A

$1.49

33

BOLT, HEX. (5X8) | Use up to Engine SN 184411 This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

33

BOLT, HEX. (5X8) | Use up to Engine SN 184411

92101-05008-0A

$1.49

33

SCREW, PAN (5X8) | Use from Engine SN 184412

93500-05008-0A

$1.49

34

SCREW, FLAT (5X12) (NOT AVAILABLE) | Use up to Engine SN 184411

93600-05012

Unavailable

34

SCREW, FLAT (5X12) | Use from Engine SN 184412

93600-05012-0A

$1.49

35

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

36

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

36

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
