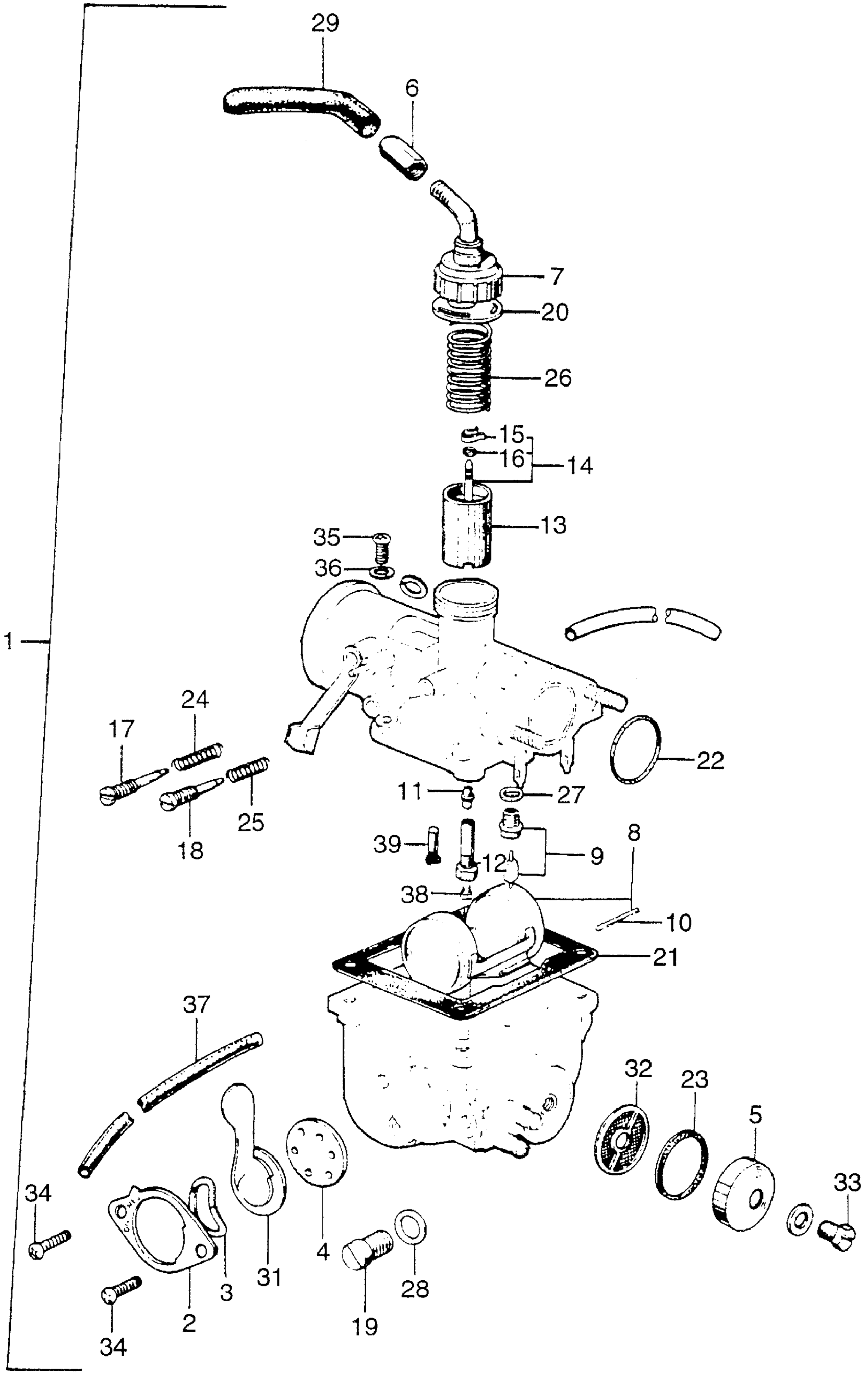

Honda CT90A MOTORCYCLE, JPN, VIN# CT90-100001 CARBURETOR Diagram

#

Description
Price

NI

SCREW, DRAIN (NOT AVAILABLE) | Use from Engine SN 188272

16164-202-004

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 122550 This part replaces 16100-053-004.

16100-053-305

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-053-014.

16100-053-305

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-053-024.

16100-053-305

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-053-305

Unavailable

2

COVER, VALVE (NOT AVAILABLE) | Use from Engine SN 188272

16111-098-004

Unavailable

3

WASHER, LEVER (NOT AVAILABLE) | Use from Engine SN 188272

16113-001-004

Unavailable

4

GASKET, VALVE | Use from Engine SN 188272

16115-001-004

$10.30

5

CAP, FUEL (NOT AVAILABLE) | Use from Engine SN 188272

16116-098-004

Unavailable

6

ADJUSTER, CABLE (NOT AVAILABLE) | Use from Engine SN 188272

16118-045-004

Unavailable

7

TOP (NOT AVAILABLE) | Use from Engine SN 188272 This part replaces 16119-076-004.

16119-076-305

Unavailable

7

TOP (NOT AVAILABLE) | Use from Engine SN 188272

16119-076-305

Unavailable

8

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

8

FLOAT SET

16013-116-700

$28.61

8

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

8

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

8

FLOAT SET This part replaces 16122-202-004.

16013-116-700

$28.61

9

VALVE SET, FLOAT | Use up to Engine SN 122550

16011-051-004

$16.40

9

VALVE SET, FLOAT | Use from Engine SN 122551 This part replaces 16011-070-004.

16011-355-004

$20.89

9

VALVE SET, FLOAT | Use up to Engine SN 122550 This part replaces 16011-098-004.

16011-051-004

$16.40

9

VALVE SET, FLOAT | Use up to Engine SN 122550 This part replaces 16011-134-004.

16011-051-004

$16.40

9

VALVE SET, FLOAT | Use from Engine SN 122551

16011-355-004

$20.89

9

VALVE SET, FLOAT | Use from Engine SN 122551 This part replaces 16011-823-650.

16011-355-004

$20.89

9

VALVE SET, FLOAT | Use up to Engine SN 122550 This part replaces 16123-011-004.

16011-051-004

$16.40

9

VALVE SET, FLOAT | Use up to Engine SN 122550 This part replaces 16123-011-014.

16011-051-004

$16.40

9

VALVE SET, FLOAT | Use from Engine SN 122551 This part replaces 16123-053-004.

16011-355-004

$20.89

10

PIN, FLOAT ARM (NOT AVAILABLE) | Use from Engine SN 188272

16126-011-004

Unavailable

11

NEEDLE, JET (NOT AVAILABLE) | Use from Engine SN 122551 to 188271

16133-053-004

Unavailable

11

NEEDLE, JET (NOT AVAILABLE) | Use from Engine SN 188272

16133-053-014

Unavailable

11

NEEDLE, JET (NOT AVAILABLE) | Use up to Engine SN 122550

16133-202-004

Unavailable

12

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use up to Engine SN 122550

16139-053-004

Unavailable

12

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 122551 to 184411

16139-053-014

Unavailable

12

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 184412

16139-080-024

Unavailable

13

VALVE SET, THROTTLE | Use up to Engine SN 188271 This part replaces 16141-053-004.

16022-053-014

Unavailable

13

VALVE SET A, THROTTLE (NOT AVAILABLE) | Use from Engine SN 188272 This part replaces 16141-077-004.

16022-046-004

Unavailable

14

NEEDLE SET, JET | Use up to Engine SN 122550 This part replaces 16151-053-004.

16012-053-024

Unavailable

14

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN 122551 to 188272

16151-053-014

Unavailable

15

PLATE, NEEDLE CLIP (NOT AVAILABLE) | Use from Engine SN 188272

16156-044-004

Unavailable

16

CLIP, NEEDLE (NOT AVAILABLE) | Use from Engine SN 188272

16157-044-004

Unavailable

17

SCREW, AIR (NOT AVAILABLE)

16162-107-004

Unavailable

17

SCREW, AIR (NOT AVAILABLE)

16162-202-004

Unavailable

18

SCREW, THROTTLE STOP (NOT AVAILABLE) | Use up to Engine SN 188271 This part replaces 16163-011-004.

16163-217-004

Unavailable

18

SCREW, THROTTLE STOP

16163-217-004

Unavailable

20

WASHER, TOP (NOT AVAILABLE)

16171-046-004

Unavailable

21

WASHER, FLOAT CHAMBER | Use up to Engine SN 188271

16172-046-004

Unavailable

21

WASHER, FLOAT CHAMBER (NOT AVAILABLE) | Use from Engine SN 188272

16172-098-004

Unavailable

22

O-RING (24X2.4) | Use from Engine SN 188272

16173-250-004

Unavailable

22

O-RING (23X2.4) | Use up to Engine SN 188271

16176-001-004

Unavailable

23

O-RING (18.6) (NOT AVAILABLE) | Use from Engine SN 188272

16176-046-004

Unavailable

24

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

25

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

26

SPRING, THROTTLE (NOT AVAILABLE) | Use from Engine SN 188272

16185-045-004

Unavailable

27

WASHER, FIBER (NOT AVAILABLE) | Use from Engine SN 188272

16188-040-004

Unavailable

28

WASHER, FIBER | Use from Engine SN 188272

16189-056-004

Unavailable

29

CAP, RUBBER | Use from Engine SN 188272

16118-045-770

Unavailable

29

CAP, RUBBER | Use from Engine SN 188272 This part replaces 16194-045-004.

16118-045-770

Unavailable

31

LEVER, PETCOCK (NOT AVAILABLE) | Use from Engine SN 188272

16953-098-004

Unavailable

32

SCREEN, FUEL STRAINER | Use from Engine SN 188272

16957-028-000

$16.22

33

BOLT, RECESSED (4X6) | Use from Engine SN 188272 This part replaces 92300-04006-0A.

92301-04006-0A

$1.42

33

BOLT, RECESSED (4X6) | Use from Engine SN 188272

92301-04006-0A

$1.42

34

SCREW, PAN (3X5) | Use from Engine SN 188272

93500-03005-0A

$1.49

35

SCREW, PAN (4X12) | Use from Engine SN 188272

93500-04012-0A

$1.49

36

WASHER, SPRING (4MM) | Use from Engine SN 188272

94111-04000

$1.49

37

TUBE, FUEL (NOT AVAILABLE) This part replaces 95001-35000.

95001-35000-90

Unavailable

37

TUBE, FUEL (NOT AVAILABLE)

95001-35000-90

Unavailable

38

JET, MAIN (#65) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-06504

Unavailable

38

JET, MAIN (#68) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-06804

Unavailable

38

JET, MAIN (#70) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-07004

Unavailable

38

JET, MAIN (#72) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-07204

Unavailable

38

JET, MAIN (#75) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-07504

Unavailable

38

JET, MAIN (#78) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-07804

Unavailable

38

JET, MAIN (#80) (NOT AVAILABLE) | (Optional). Use up to Engine SN 184411

99101-08004

Unavailable

38

JET, MAIN (#68) (NOT AVAILABLE) | (Optional). Use from Engine SN 184412

99114-076-0680

Unavailable

38

JET, MAIN (#70) (NOT AVAILABLE) | (Optional). Use from Engine SN 184412

99114-076-0700

Unavailable

38

JET, MAIN (#72) (NOT AVAILABLE) | Use from Engine SN 184412

99114-076-0720

Unavailable

38

JET, MAIN (#75) (NOT AVAILABLE) | (Optional). Use from Engine SN 184412

99114-076-0750

Unavailable

38

JET, MAIN (#78) (NOT AVAILABLE) | (Optional). Use from Engine SN 184412

99114-076-0780

Unavailable

39

JET, SLOW (#38) (NOT AVAILABLE) | (Optional). Use from Engine SN 122551 to 188271

99124-053-0380

Unavailable

39

JET, SLOW (#40) (NOT AVAILABLE) | (Optional). Use from Engine SN 122551 to 188271

99124-053-0400

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use from Engine SN 188272

99124-089-0381

Unavailable

39

JET, SLOW (#35) | Use from Engine SN 188272

99124-303-0350

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550 This part replaces 99124-303-0380.

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use from Engine SN 188272 This part replaces 99124-303-0380.

99124-089-0381

Unavailable

39

JET, SLOW (#40) (NOT AVAILABLE) | (Optional). Use up to Engine SN 122550

99124-303-0400

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550 This part replaces 99124-304-0380.

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use from Engine SN 188272 This part replaces 99124-304-0380.

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550 This part replaces 99130-03804.

99124-089-0381

Unavailable

39

JET, SLOW (#40) (NOT AVAILABLE) | (Optional). Use up to Engine SN 122550 This part replaces 99130-04004.

99124-303-0400

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550 This part replaces 99145-03804.

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use from Engine SN 188272 This part replaces 99145-03804.

99124-089-0381

Unavailable

39

JET, SLOW (#40) (NOT AVAILABLE) | (Optional). Use up to Engine SN 122550 This part replaces 99145-04004.

99124-303-0400

Unavailable

39

JET, SLOW (#38) | (Optional). Use up to Engine SN 122550 This part replaces 99154-03804.

99124-089-0381

Unavailable

39

JET, SLOW (#38) | (Optional). Use from Engine SN 188272 This part replaces 99154-03804.

99124-089-0381

Unavailable
