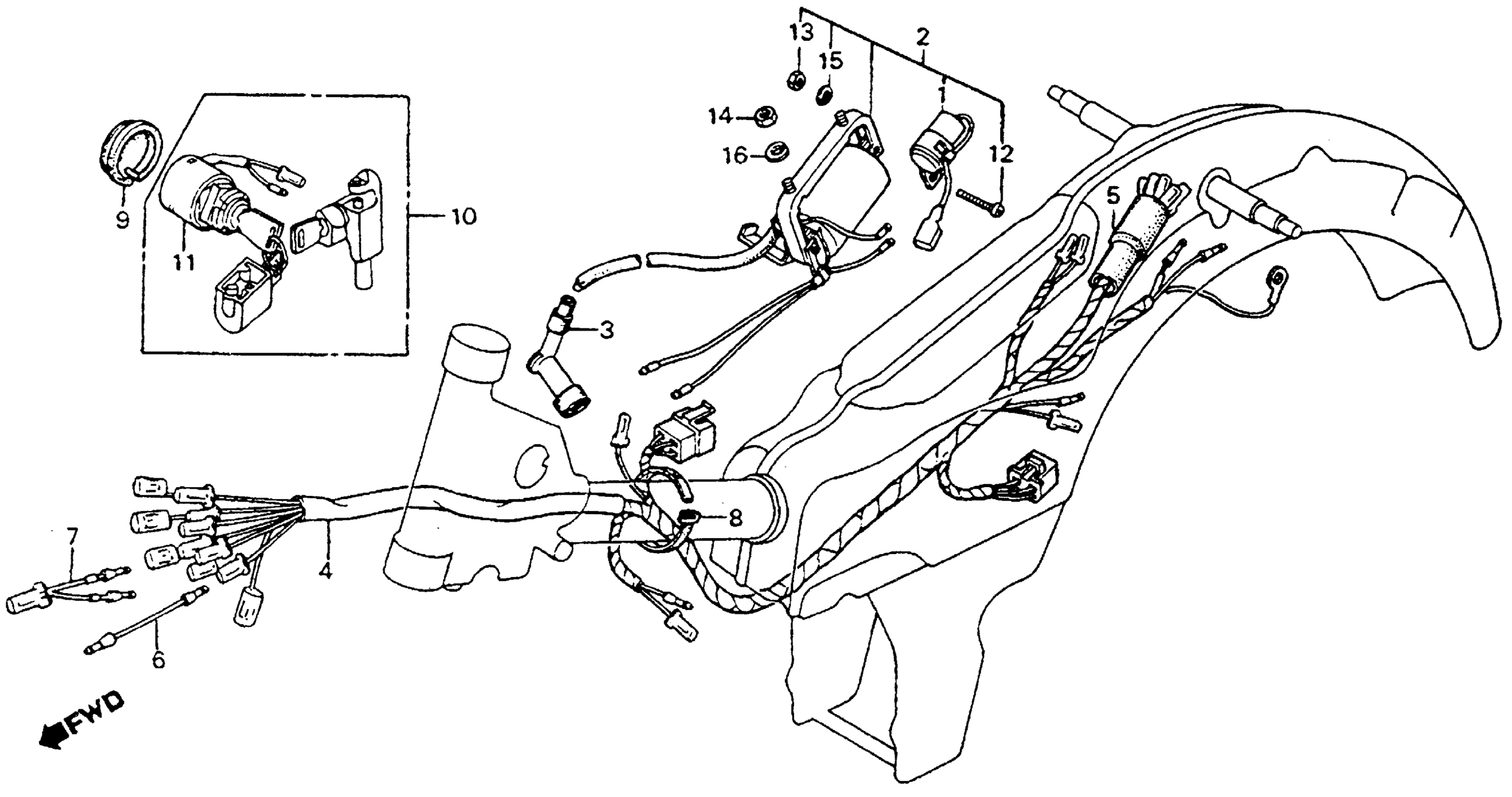

Honda CT90A (79) TRAIL 90, JPN, VIN# CT90-5000001 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

CONDENSER

30250-052-000

$23.28

2

COIL, IGNITION

30530-102-780

Unavailable

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

4

WIRE HARNESS (NOT AVAILABLE)

32100-102-780

Unavailable

5

COVER, WIRE HARNESS CONNECTOR

32108-003-000

$4.95

6

SUB-WIRE A (NOT AVAILABLE)

32111-102-750

Unavailable

7

SUB-WIRE B (NOT AVAILABLE)

32112-102-750

Unavailable

8

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

8

BAND A3, CABLE

95014-61300

$1.97

9

GROMMET, MAIN SWITCH (NOT AVAILABLE)

32983-076-000

Unavailable

10

LOCK SET (NOT AVAILABLE)

35010-102-780

Unavailable

11

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-102-780

Unavailable

12

SCREW, PAN (5X20)

93500-05020-0A

$1.49

13

NUT, HEX. (5MM)

94001-05000-0S

$2.74

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, SPRING (5MM)

94111-05000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
