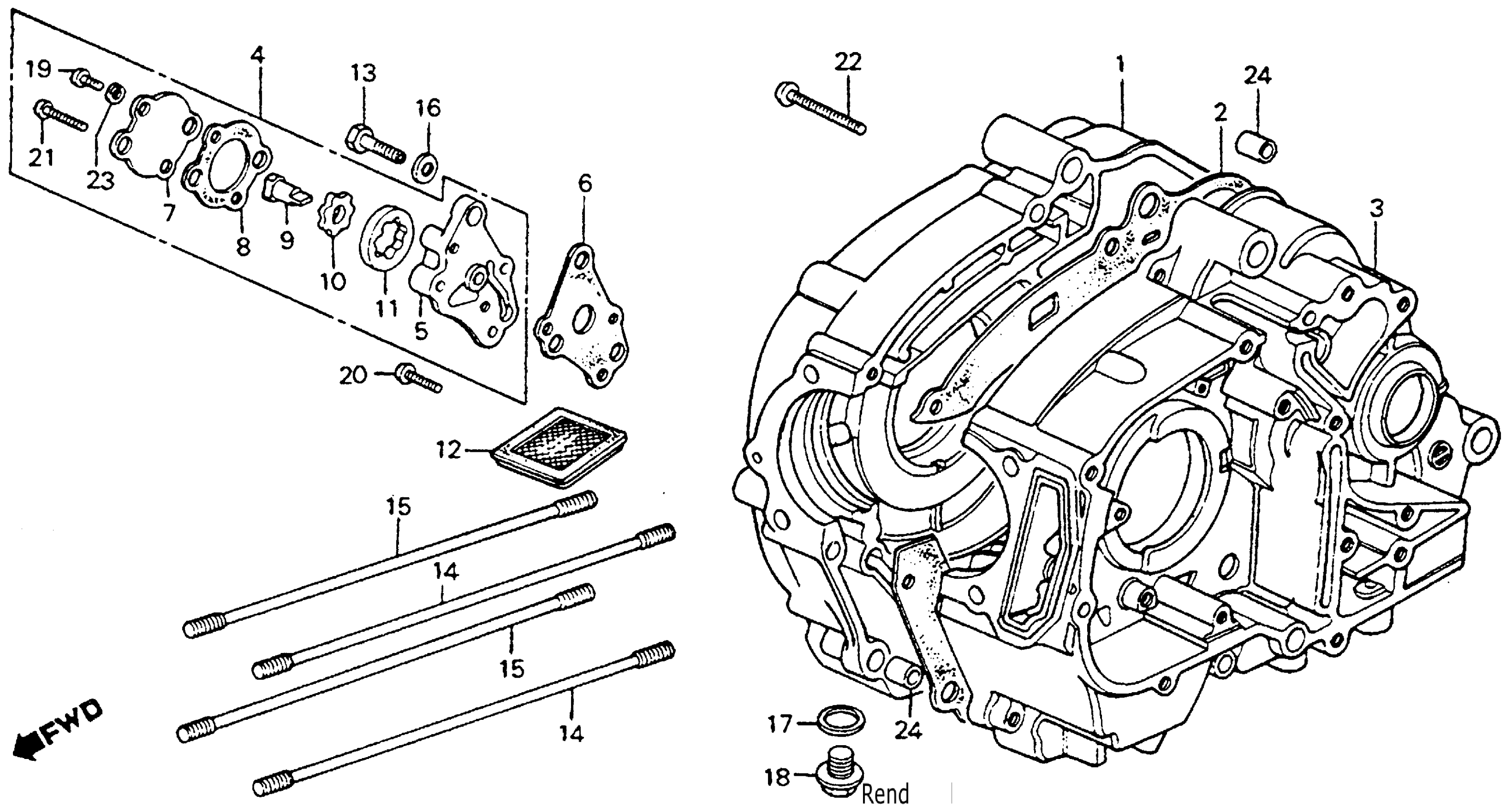

Honda CT90A (79) TRAIL 90, JPN, VIN# CT90-5000001 CRANKCASE + OIL PUMP Diagram

CRANKCASE, R. (NOT AVAILABLE)

11100-052-040

Unavailable

GASKET, CRANKCASE This part replaces 11191-052-000.

11191-052-306

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-102-701

Unavailable

PUMP ASSY., OIL (NOT AVAILABLE)

15100-053-010

Unavailable

BODY, OIL PUMP

15111-053-020

Unavailable

GASKET, OIL PUMP BODY This part replaces 15119-028-030.

15119-028-306

Unavailable

GASKET, OIL PUMP BODY

15119-028-306

Unavailable

COVER, OIL PUMP (NOT AVAILABLE)

15121-028-060

Unavailable

GASKET, OIL PUMP COVER

15128-028-030

Unavailable

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15181-028-050

Unavailable

ROTOR, OIL PUMP (INNER) This part replaces 15331-053-010.

15331-053-014

Unavailable

ROTOR, OIL PUMP (INNER)

15331-053-014

Unavailable

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-053-010.

15332-053-014

Unavailable

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-053-014

Unavailable

SCREEN, OIL FILTER

15421-035-010

$3.80

BOLT, OIL JOINT (NOT AVAILABLE)

90015-028-000

Unavailable

BOLT A, CYLINDER STUD

90031-028-010

Unavailable

BOLT B, CYLINDER STUD

90032-028-020

Unavailable

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

SCREW, PAN (6X16)

93500-06016-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28
