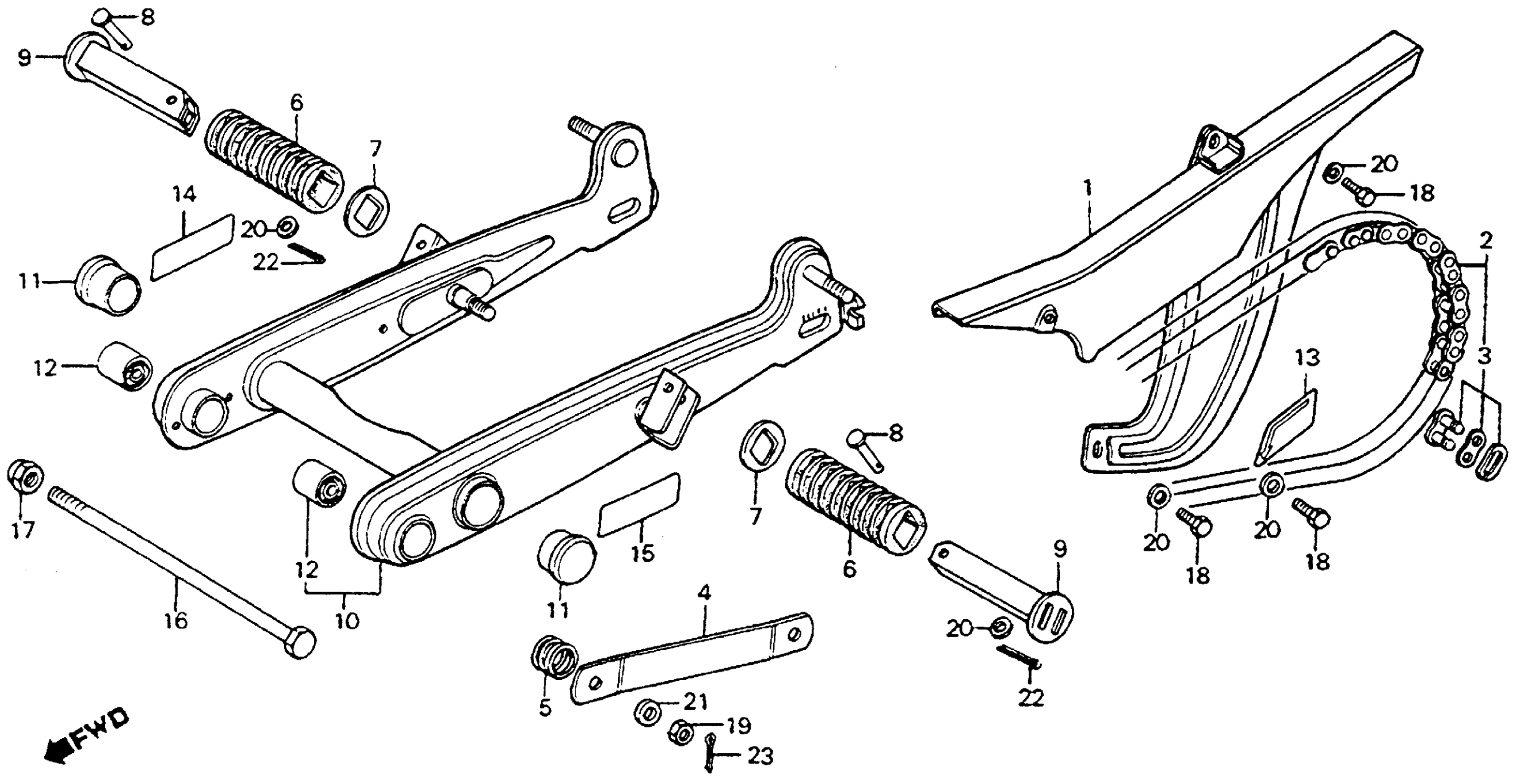

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

40510-077-010XB

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-102-005.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-359-671.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-459-671.

405W3-KA8-505

Unavailable

3

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-028-005

Unavailable

3

MASTER LINK This part replaces 40531-205-003.

40531-205-013

Unavailable

3

MASTER LINK (TAKASAGO) (NOT AVAILABLE) This part replaces 40531-205-005.

40531-028-005

Unavailable

3

MASTER LINK

40531-205-013

Unavailable

3

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

4

LINK, RR. BRAKE TORQUE

43431-086-720

Unavailable

5

SPRING, STOPPER ARM

43434-250-000

$2.00

6

RUBBER, PILLION FOOTPEG | (Optional). This part replaces 50710-377-000.

50716-371-660

$14.21

6

RUBBER, PILLION FOOTPEG | (Optional).

50716-371-660

$14.21

7

WASHER, PILLION FOOTPEG | (Optional).

50712-377-000

Unavailable

8

PIN A, PILLION STEP | (Optional). This part replaces 50715-024-000.

95015-81000

$2.21

8

PIN A, PILLION STEP | (Optional).

95015-81000

$2.21

9

BAR, PILLION FOOTPEG | (Optional).

50715-MA6-000

$19.16

9

BAR, PILLION FOOTPEG | (Optional). This part replaces 50715-377-000.

50715-MA6-000

$19.16

10

SWINGARM ASSY., RR. *Y5* (BRIGHT YELLOW)

52000-102-790ZA

Unavailable

11

CAP, CROSSMEMBER SIDE

52161-051-000

$2.33

11

CAP, CROSSMEMBER SIDE This part replaces 52161-051-000B.

52161-051-000

$2.33

12

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

13

LABEL, POSI-TORQUE (NOT AVAILABLE)

87130-102-730

Unavailable

14

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

15

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-102-770

Unavailable

16

BOLT, SWINGARM PIVOT This part replaces 90121-025-000.

90121-033-000

Unavailable

16

BOLT, SWINGARM PIVOT

90121-033-000

Unavailable

17

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

PIN, COTTER (1.6X25) | (Optional). This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25) | (Optional).

94201-16250

$1.49

23

PIN, COTTER (2.0X15)

94201-20150

$1.49
