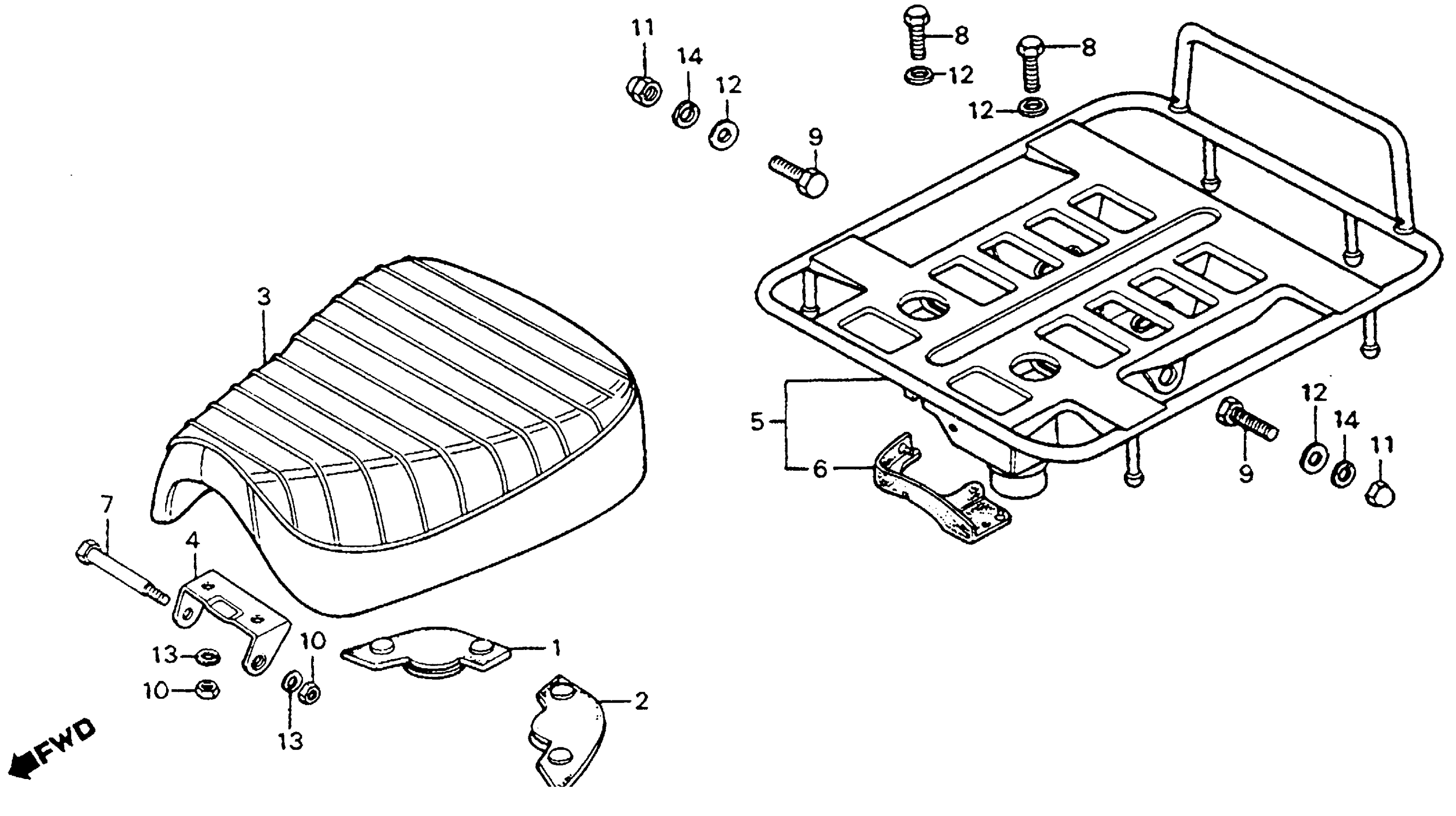

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 SEAT + REAR CARRIER Diagram

#

Description
Price

1

RUBBER, R. SEAT STOPPER

77151-041-000

Unavailable

2

RUBBER, L. SEAT STOPPER

77152-041-000

Unavailable

3

SEAT ASSY.

77200-102-790

$140.71

4

BRACKET A, SEAT

77210-126-000

$6.65

4

BRACKET A, SEAT This part replaces 77210-126-000B.

77210-126-000

$6.65

5

CARRIER ASSY. (NOT AVAILABLE)

81202-102-790

Unavailable

6

RUBBER, AIR CLEANER IN.

81214-102-790

Unavailable

7

PIN, SEAT HINGE

90101-001-010

Unavailable

8

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.47

8

BOLT, HEX. (8X16)

92101-08016-0A

$1.47

9

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

9

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

10

NUT, HEX. (6MM)

94001-06200-0S

$1.31

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

11

NUT, CAP (8MM)

94021-08020-0S

$2.18

12

WASHER, PLAIN (8MM)

94101-08000

Unavailable

13

WASHER, SPRING (6MM)

94111-06000

$0.87

14

WASHER, SPRING (8MM)

94111-08000

Unavailable
