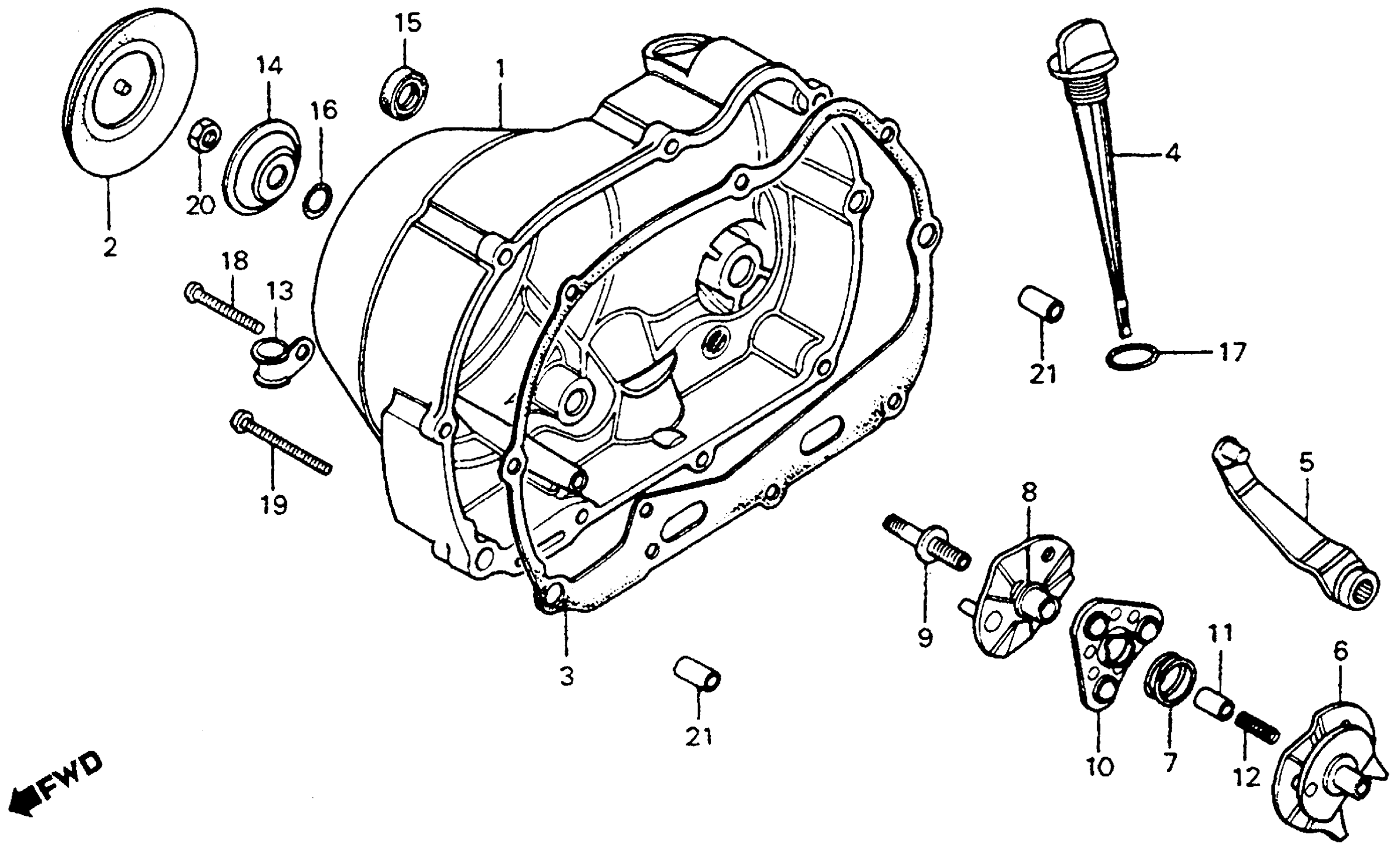

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-046-020

Unavailable

PROTECTOR, R. CRANKCASE COVER

11335-102-700

$11.67

GASKET, R. CRANKCASE COVER This part replaces 11393-028-020.

11393-028-306

$12.58

GASKET, R. CRANKCASE COVER

11393-028-306

$12.58

DIPSTICK, OIL This part replaces 15650-102-700.

15650-102-701

Unavailable

DIPSTICK, OIL

15650-102-701

Unavailable

LEVER, CLUTCH

22811-046-010

Unavailable

PLATE, CLUTCH CAM This part replaces 22820-918-000.

22820-918-020

$20.42

PLATE, CLUTCH CAM This part replaces 22820-918-010.

22820-918-020

$20.42

PLATE, CLUTCH CAM

22820-918-020

$20.42

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

PLATE, CLUTCH LIFTER

22830-046-000

$10.64

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE) This part replaces 22846-046-010.

22846-046-020

Unavailable

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22846-046-020

Unavailable

RETAINER, CLUTCH BALL

22860-046-000

$7.04

THROUGH, OIL This part replaces 25551-918-000.

25551-GEL-A80

$6.02

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$6.02

SPRING, OIL GUIDE

25555-046-000

Unavailable

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

WASHER, CLUTCH ADJUSTER This part replaces 90485-102-700.

90485-102-701

Unavailable

WASHER, CLUTCH ADJUSTER

90485-102-701

Unavailable

OIL SEAL (14X26X6) This part replaces 91203-023-020.

91251-ZW5-003

$3.81

OIL SEAL (14X26X6)

91251-ZW5-003

$3.81

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32)

93500-06032-0A

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28
