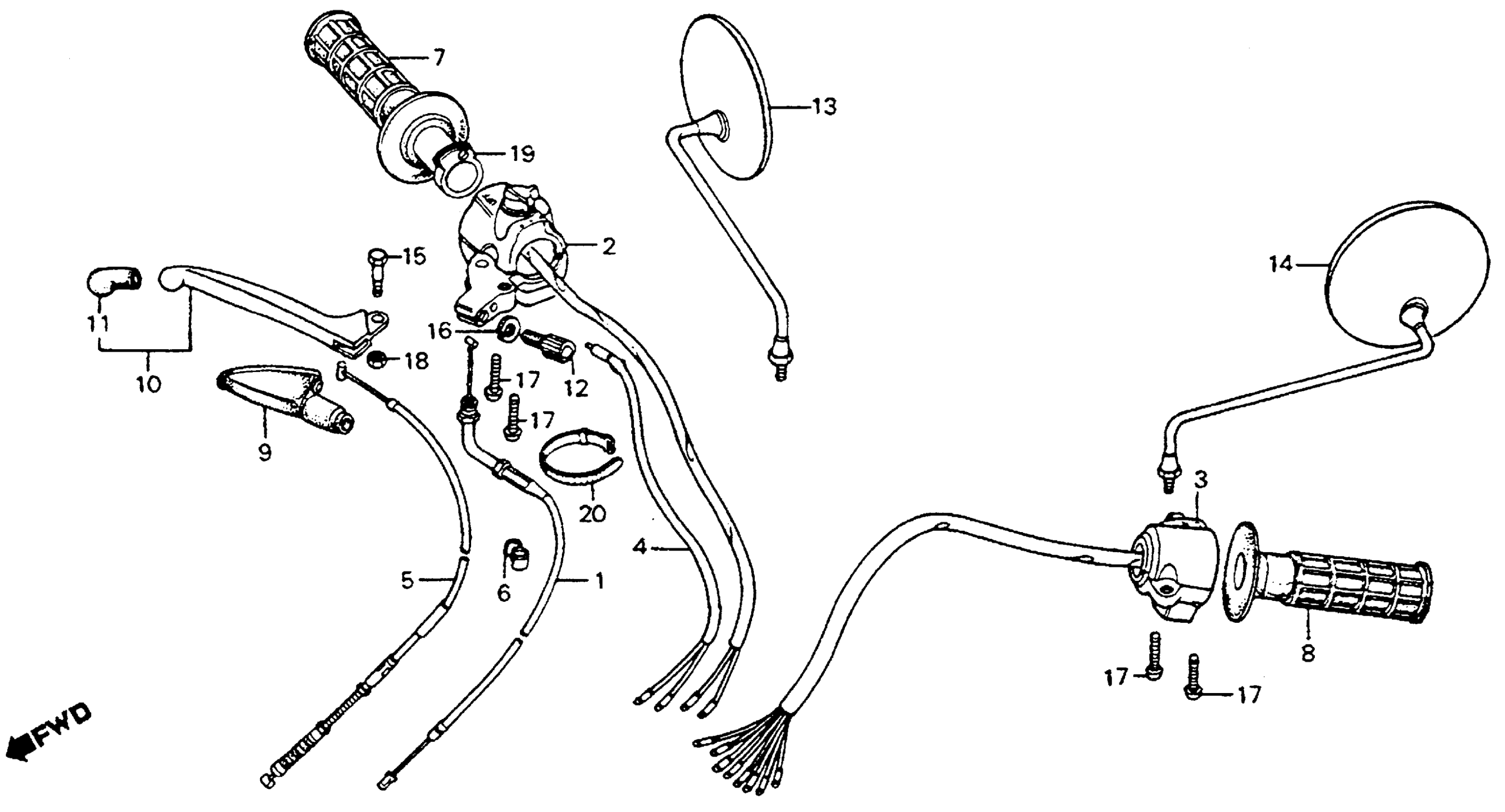

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-102-790

Unavailable

2

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-102-790

Unavailable

3

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-102-772

Unavailable

4

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$15.68

4

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$15.68

4

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$15.68

4

SWITCH ASSY., FR. STOP

35340-329-003

$15.68

4

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$15.68

5

CABLE, FR. BRAKE This part replaces 45450-KA9-680.

45450-169-000

Unavailable

5

CABLE, FR. BRAKE This part replaces 45450-102-770.

45450-169-000

Unavailable

5

CABLE, FR. BRAKE This part replaces 45450-102-771.

45450-169-000

Unavailable

5

CABLE, FR. BRAKE

45450-169-000

Unavailable

7

GRIP, R. HANDLE

53165-362-000

Unavailable

8

GRIP, L. HANDLE

53166-362-000

Unavailable

9

COVER, R. HANDLEBAR LEVER (NOT AVAILABLE)

53171-351-000

Unavailable

10

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$27.86

10

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$27.86

10

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$27.86

10

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$27.86

10

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$27.86

10

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$27.86

12

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

13

MIRROR, R.

88110-329-730

Unavailable

14

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

15

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.22

16

NUT, FIXING

90321-315-670

$6.80

16

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

17

SCREW, PAN (5X25)

93500-05025-0A

$0.86

17

SCREW, PAN (5X25) This part replaces 93500-05025-1A.

93500-05025-0A

$0.86

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM)

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

19

PIPE A, THROTTLE GRIP

95014-51100

$15.36

20

BAND B1, CABLE

32161-404-000

$2.13
