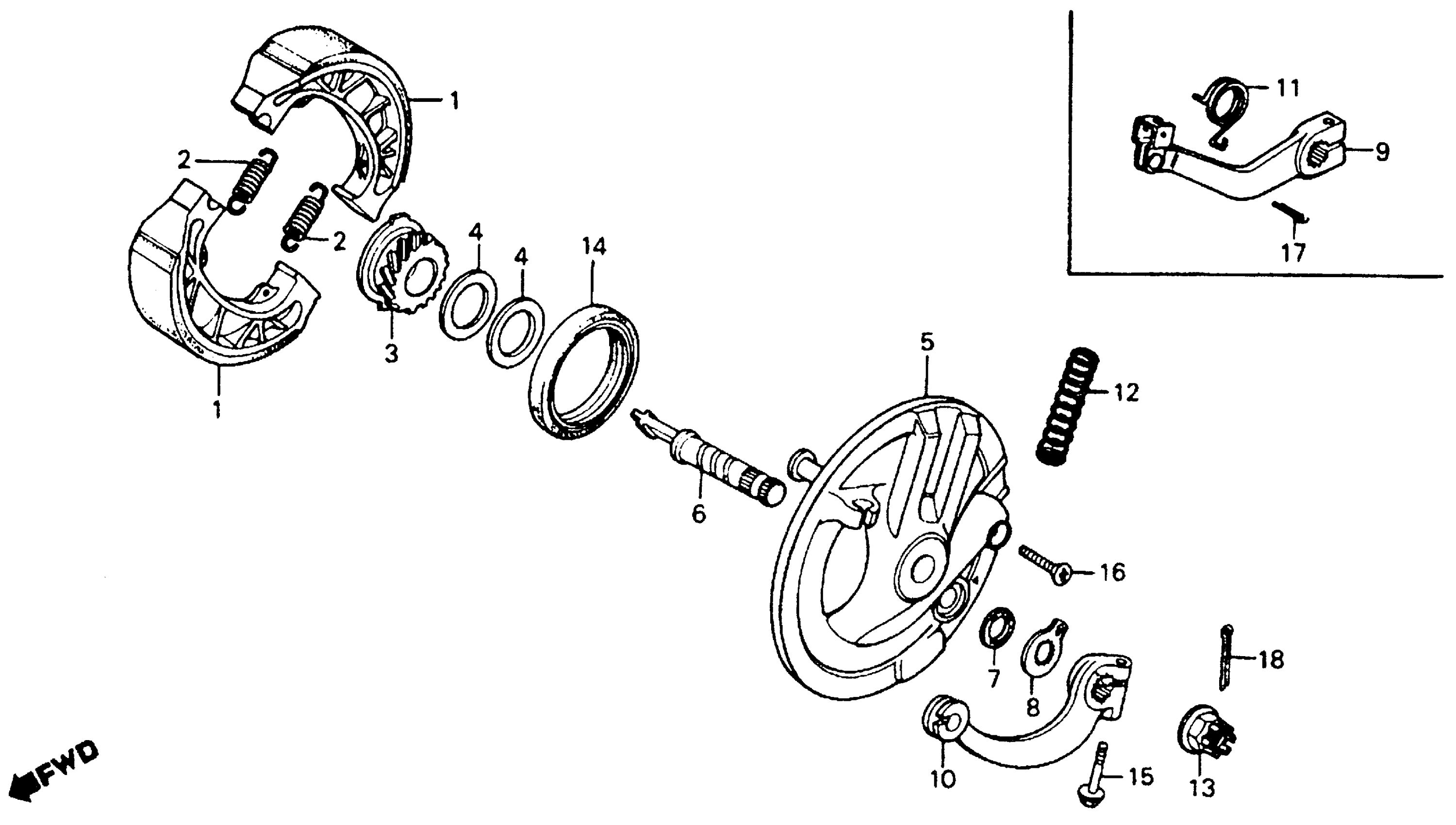

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1709299 This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1709299 This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1709299

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) | Use from Frame SN 1709299 This part replaces 451A2-096-305.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

1

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

2

SPRING, BRAKE SHOE

45133-028-000

$2.03

3

GEAR, SPEEDOMETER

44804-102-780

Unavailable

4

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.34

5

SUB-PANEL, FR. BRAKE *NH105* (MAT BLACK) This part replaces 45010-102-790ZA.

45010-102-791ZA

Unavailable

5

SUB-PANEL, FR. BRAKE *NH105* (MAT BLACK)

45010-102-791ZA

Unavailable

6

CAM, FR. BRAKE This part replaces 45131-400-000.

45131-400-020

Unavailable

6

CAM, FR. BRAKE This part replaces 45131-400-010.

45131-400-020

Unavailable

6

CAM, FR. BRAKE

45131-400-020

Unavailable

7

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

8

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-102-780

Unavailable

10

ARM, FR. BRAKE

45410-400-000

Unavailable

12

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

13

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

13

NUT, AXLE (12MM)

90305-169-000

$6.28

14

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

14

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

18

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49
