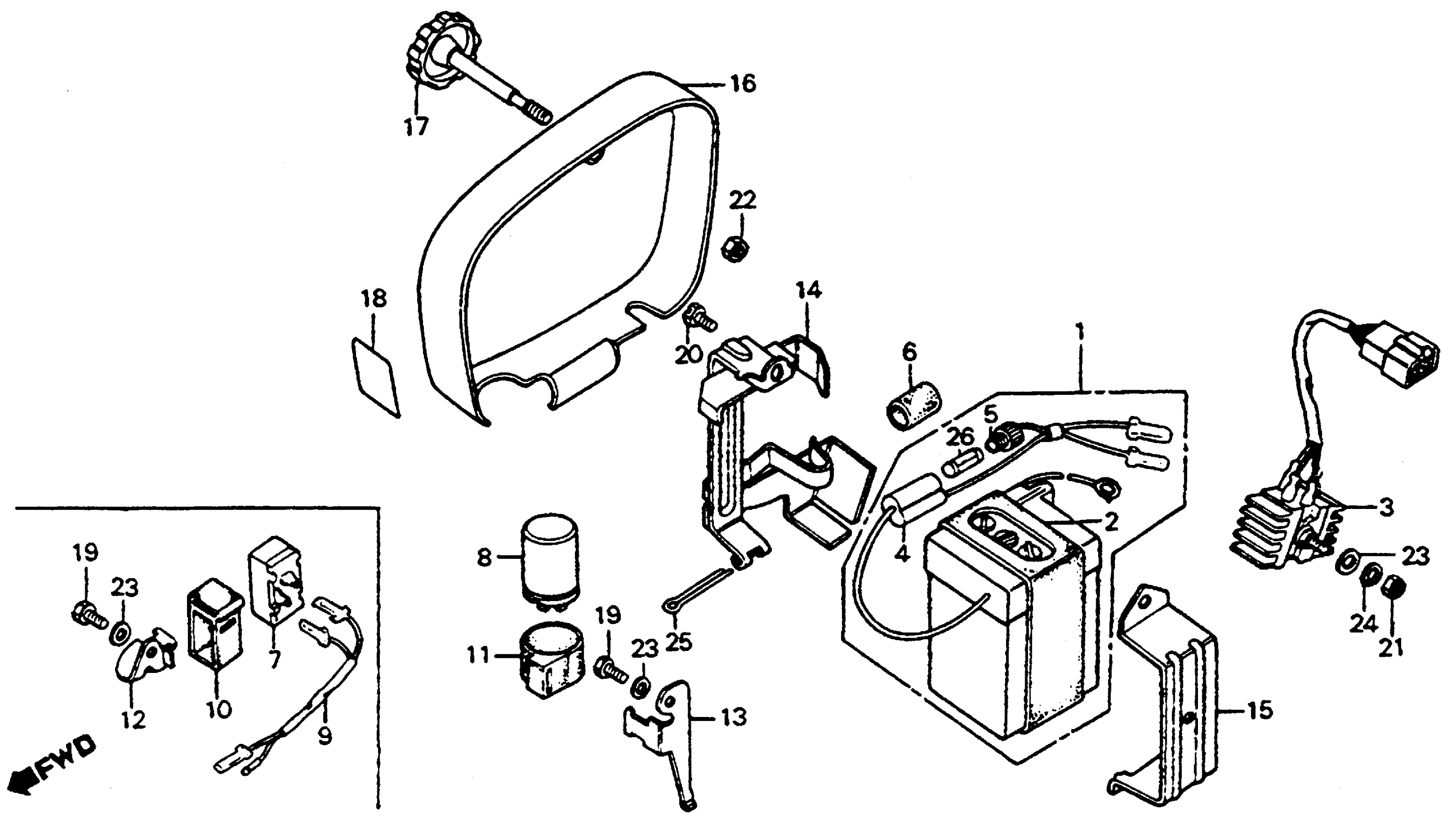

Honda CT90A (78) TRAIL 90, JPN, VIN# CT90-1900001 BATTERY BOX + BATTERY Diagram

#

Description
Price

1

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

2

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31510-046-000

Unavailable

3

RECTIFIER ASSY.

31700-102-731

Unavailable

4

CONNECTOR A, FUSE (NOT AVAILABLE)

32106-046-000

Unavailable

5

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

5

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

6

COVER, CONNECTOR (NOT AVAILABLE)

32112-102-730

Unavailable

7

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

7

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

7

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

7

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

7

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

7

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

10

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

12

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38307-102-730

Unavailable

14

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50373-077-000B

Unavailable

15

PLATE, BATTERY SUPPORT *NH1* (BLACK) (NOT AVAILABLE)

50381-046-000B

Unavailable

16

BOX, BATTERY *Y16L* (BRIGHT YELLOW) (NOT AVAILABLE)

83600-041-000XB

Unavailable

17

LATCH, TOOL BOX

83650-003-000

$6.52

18

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-102-702

Unavailable

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, RECESSED (6X12) This part replaces 92300-06012.

92301-06012-0A

$1.49

20

BOLT, RECESSED (6X12) This part replaces 92300-06012-0A.

92301-06012-0A

$1.49

20

BOLT, RECESSED (6X12)

92301-06012-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49

26

FUSE A (15A)

98200-11500

$1.49
