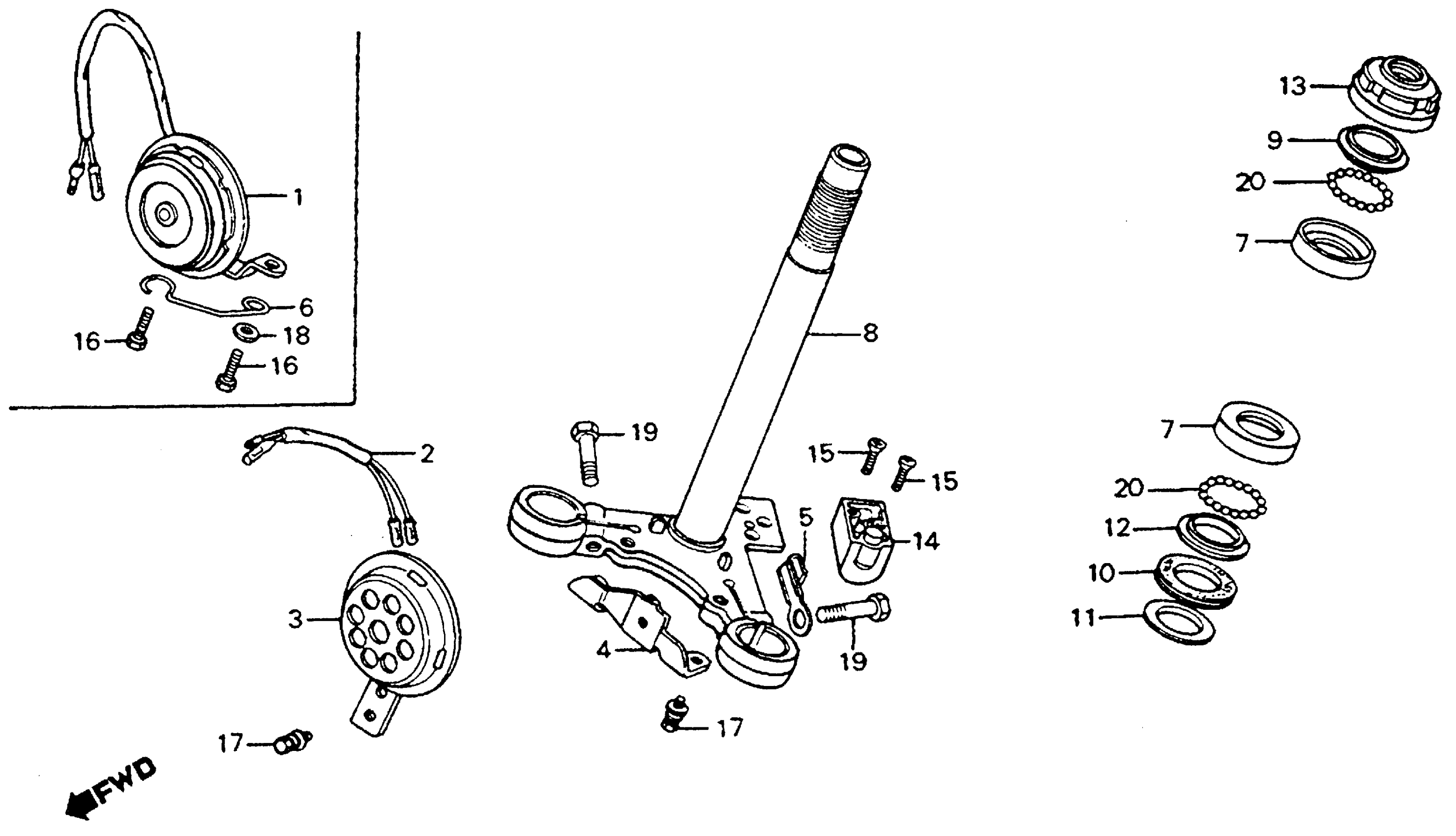

Honda CT90A (77) TRAIL 90, JPN, VIN# CT90-1800008 STEERING STEM + HORN Diagram

#

Description
Price

2

SUB-WIRE, HORN (NOT AVAILABLE)

38105-115-000

Unavailable

3

HORN This part replaces 38110-124-901.

38110-187-005

Unavailable

4

BRACKET, HORN (NOT AVAILABLE)

38111-102-780

Unavailable

7

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

7

RACE, STEERING TOP BALL

50301-041-010

$12.39

7

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

8

STEM, STEERING *YR26* (SHINY ORANGE)

53200-102-000ZA

Unavailable

9

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

9

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

9

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$11.09

10

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

11

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

12

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

12

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

12

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$10.73

12

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$10.73

13

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

14

LOCK, HANDLEBAR (HONDALOCK) (NOT AVAILABLE)

53600-001-027

Unavailable

15

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

17

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

93403-06016-00

$1.55

17

BOLT-WASHER (6X16) This part replaces 93483-06016-00.

93403-06016-00

$1.55

19

BOLT, HEX. (8X32) (NOT AVAILABLE)

95300-08032-00

Unavailable

20

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
