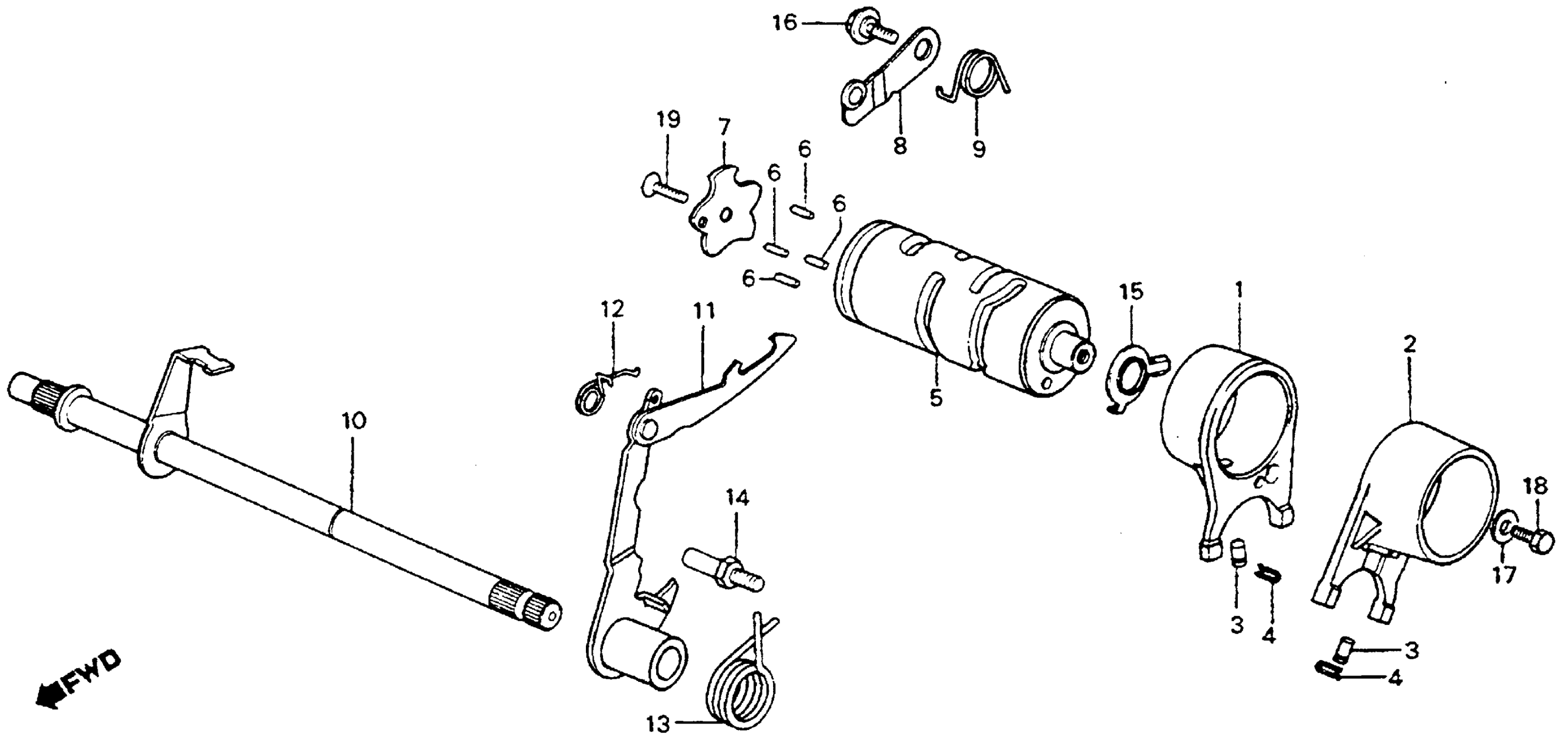

Honda CT90A (77) TRAIL 90, JPN, VIN# CT90-1800008 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-028-345

Unavailable

2

FORK, L. GEARSHIFT

24221-028-335

Unavailable

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT (NOT AVAILABLE) This part replaces 24301-102-720.

24301-102-721

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-102-721

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, GEARSHIFT DRUM STOPPER

24425-350-010

Unavailable

8

ARM This part replaces 24430-028-603.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-000.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-010.

24430-459-950

$15.78

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-028-680

Unavailable

10

SPINDLE, GEARSHIFT

24610-046-020

Unavailable

11

ARM, GEARSHIFT

24630-046-010

Unavailable

12

SPRING, GEARSHIFT ARM

24641-046-000

Unavailable

13

SPRING, GEARSHIFT RETURN This part replaces 24651-033-010.

24651-121-710

Unavailable

13

SPRING, GEARSHIFT RETURN

24651-121-710

Unavailable

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

15

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

18

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

19

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-06012.

93700-06012-0A

Unavailable

19

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.)

93700-06012-0A

Unavailable
