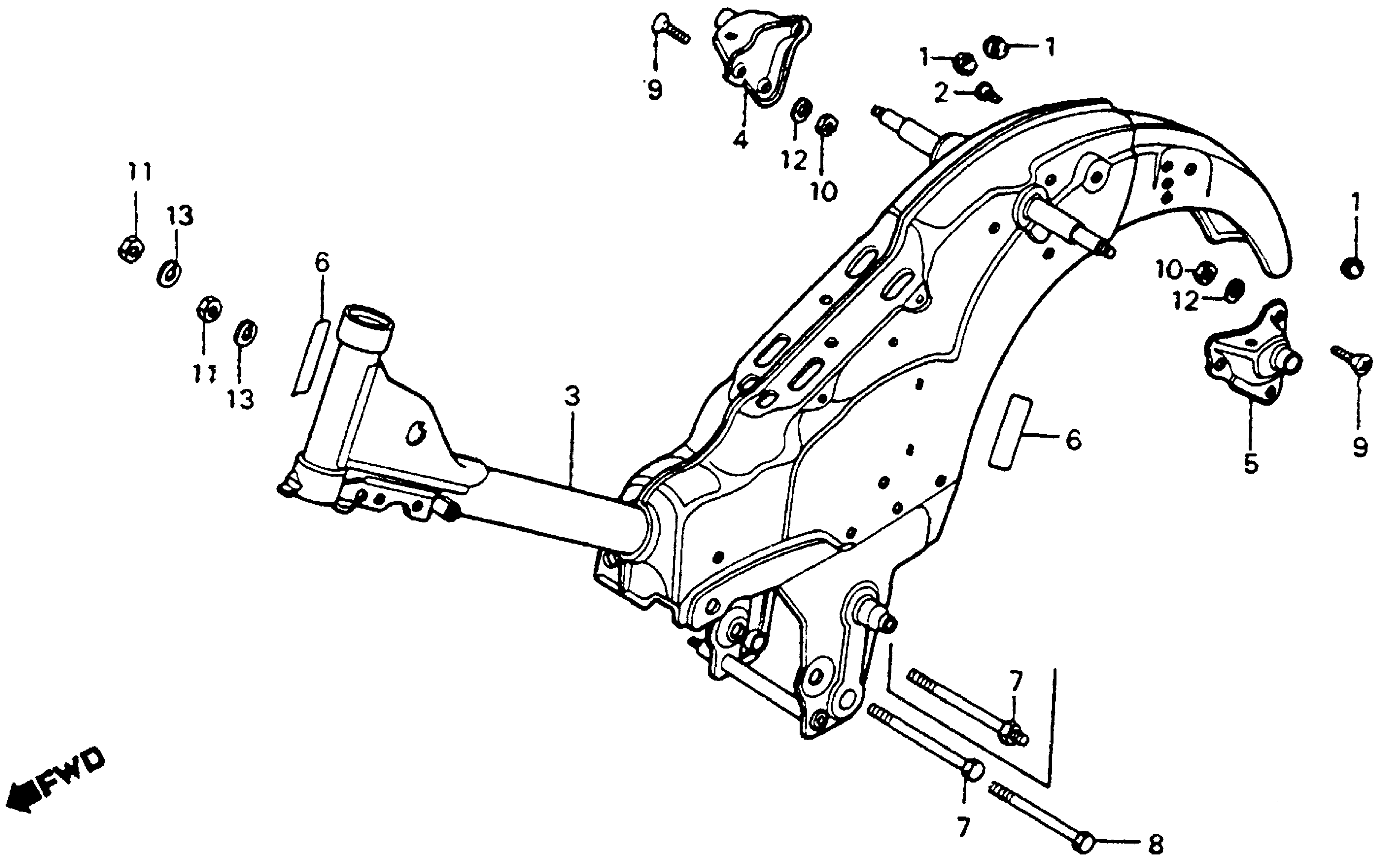

Honda CT90A (77) TRAIL 90, JPN, VIN# CT90-1800008 FRAME Diagram

#

Description
Price

1

GROMMET B, RR. TURN SIGNAL WIRE

33666-053-000

$2.92

2

PLUG, HEAD PIPE

50049-046-000

$2.03

3

FRAME *YR26* (SHINY ORANGE)

50100-102-770ZA

Unavailable

4

BRACKET, R. RR. SUSPENSION *YR26* (SHINY ORANGE)

50303-102-730ZA

Unavailable

5

BRACKET, L. RR. SUSPENSION *YR26* (SHINY ORANGE)

50306-102-730ZA

Unavailable

6

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

7

BOLT, RR. ENGINE (LOWER)

90112-046-000

Unavailable

8

BOLT, RR. ENGINE (LOWER) (NOT AVAILABLE)

90116-046-000

Unavailable

9

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

9

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

NUT, HEX. (10MM)

94030-10000

$1.49

12

WASHER, SPRING (6MM)

94111-06000

$1.49

13

WASHER, SPRING (8MM)

94111-10000

$1.49
