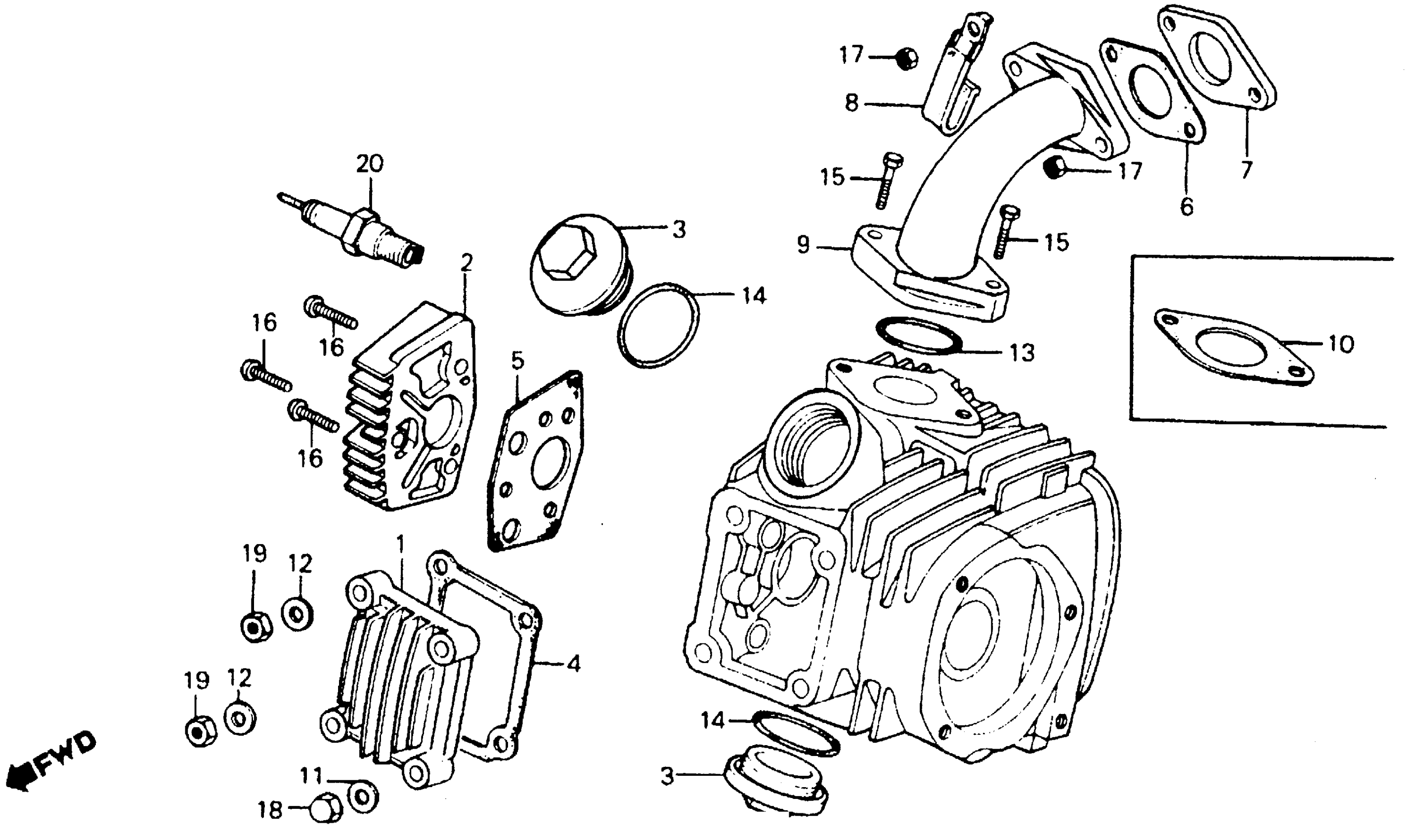

Honda CT90A (77) TRAIL 90, JPN, VIN# CT90-1800008 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-028-010

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-000.

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-028-010.

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE

12331-028-020

Unavailable

2

COVER, VALVE ROCKER ARM SIDE This part replaces 12331-128-000.

12331-028-020

Unavailable

3

CAP, VALVE ADJ.

12361-028-000

$8.80

4

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-000.

12391-121-630

$5.23

4

GASKET, CYLINDER HEAD COVER This part replaces 12391-028-306.

12391-121-630

$5.23

4

GASKET, CYLINDER HEAD COVER

12391-121-630

$5.23

5

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-010.

12394-121-630

$4.84

5

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-028-020.

12394-121-630

$4.84

5

GASKET, R. CYLINDER HEAD SIDE COVER

12394-121-630

$4.84

6

GASKET, CARBURETOR This part replaces 16201-077-010.

16201-077-306

$3.69

6

GASKET, CARBURETOR

16201-077-306

$3.69

7

INSULATOR, CARB This part replaces 16211-077-010.

16211-077-306

Unavailable

9

PIPE, INLET (NOT AVAILABLE)

17111-102-700

Unavailable

10

GASKET, IN. PIPE This part replaces 17119-046-000.

17119-046-306

$5.04

10

GASKET, IN. PIPE

17119-046-306

$5.04

11

WASHER, SEALING (8MM)

90442-028-000

$1.77

12

WASHER (8MM)

90483-028-000

$1.51

14

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

14

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

14

O-RING (33.5X3.0)

91304-HB3-003

$7.70

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

16

SCREW, PAN (6X20)

93500-06020-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, CAP (8MM)

90220-028-000

Unavailable

19

NUT, HEX. (8MM)

94030-08000

$1.49

20

SPARK PLUG (D8HA) (NGK) | Use up to Engine SN 1809761 This part replaces 98066-58714.

98066-58717

$2.44

20

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44

20

SPARK PLUG (D8HA) (NGK) | Use up to Engine SN 1809761

98066-58717

$2.44

20

SPARK PLUG (X24FS-U) (DENSO) | Use from Engine SN 1809762

98066-58727

Unavailable
