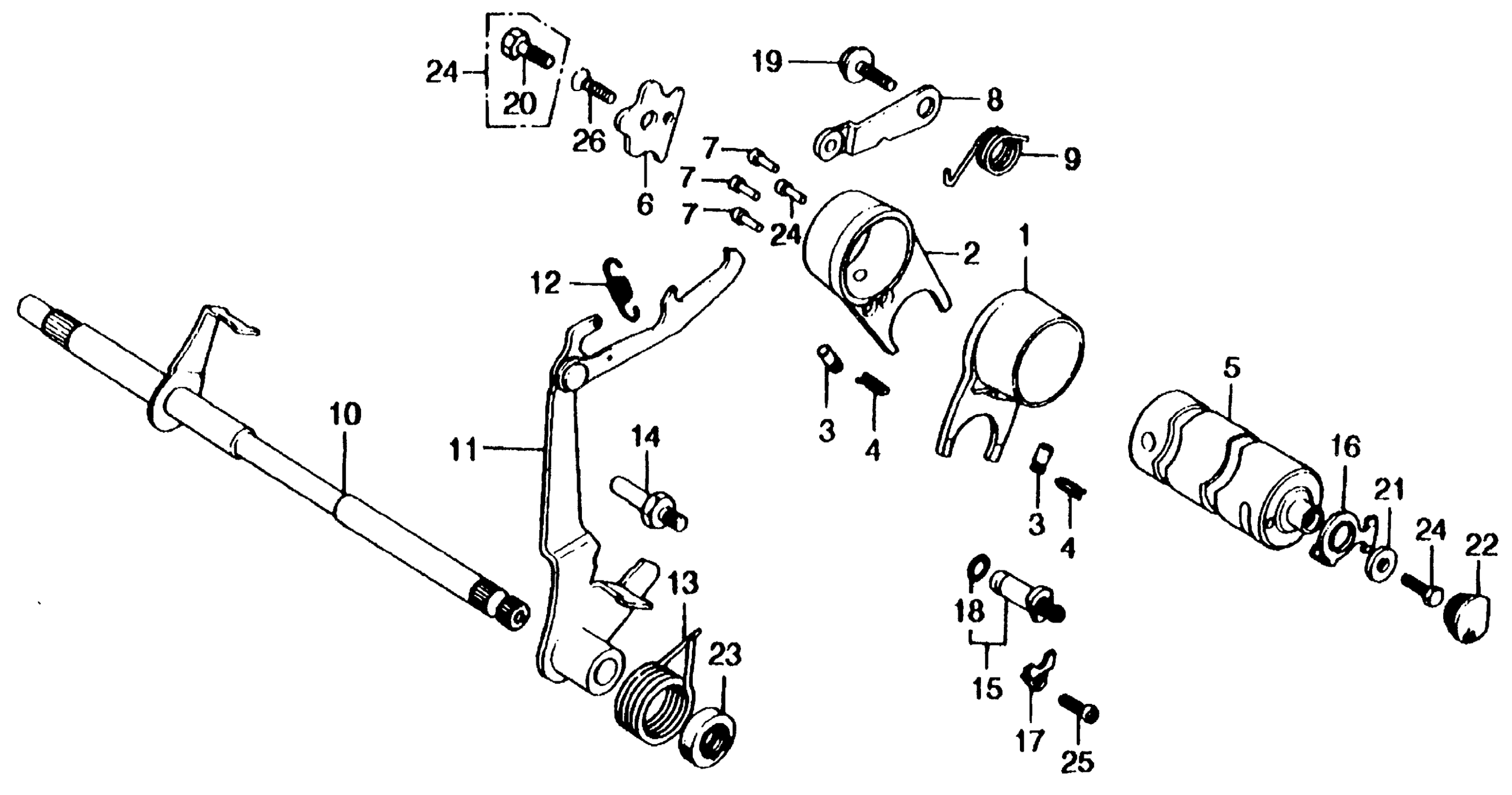

Honda CT70K4A MOTORCYCLE, JPN, VIN# CT70-2400001 TO CT70-2408852 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, L. GEARSHIFT This part replaces 24211-087-000.

24211-087-010

$70.77

1

FORK, L. GEARSHIFT

24211-087-010

$70.77

2

FORK, R. GEARSHIFT This part replaces 24221-041-000.

24221-041-010

$84.39

2

FORK, R. GEARSHIFT

24221-041-010

$84.39

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT This part replaces 24301-098-750.

24301-098-754

Unavailable

5

DRUM, GEARSHIFT This part replaces 24301-098-752.

24301-098-754

Unavailable

5

DRUM, GEARSHIFT This part replaces 24301-098-753.

24301-098-754

Unavailable

5

DRUM, GEARSHIFT

24301-098-754

Unavailable

6

PLATE, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24411-041-020

Unavailable

7

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

8

STOPPER, GEARSHIFT DRUM This part replaces 24430-041-000.

24430-041-010

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER

24435-GB2-710

Unavailable

9

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

10

SPINDLE, GEARSHIFT

24610-098-730

$58.95

11

ARM, GEARSHIFT This part replaces 24630-086-000.

24630-086-030

Unavailable

11

ARM, GEARSHIFT This part replaces 24630-086-010.

24630-086-030

Unavailable

11

ARM, GEARSHIFT This part replaces 24630-086-020.

24630-086-030

Unavailable

12

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

13

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

16

ROTOR, NEUTRAL SWITCH

35753-035-010

Unavailable

17

PLATE, CONTACT FIXING

35755-001-020

Unavailable

18

O-RING (7X1.6)

37551-001-000

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

22

PLUG, RUBBER (19MM)

90801-035-000

$2.92

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

23

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.49

26

SCREW, OVAL (6X20)

93700-06020-0A

$1.49
