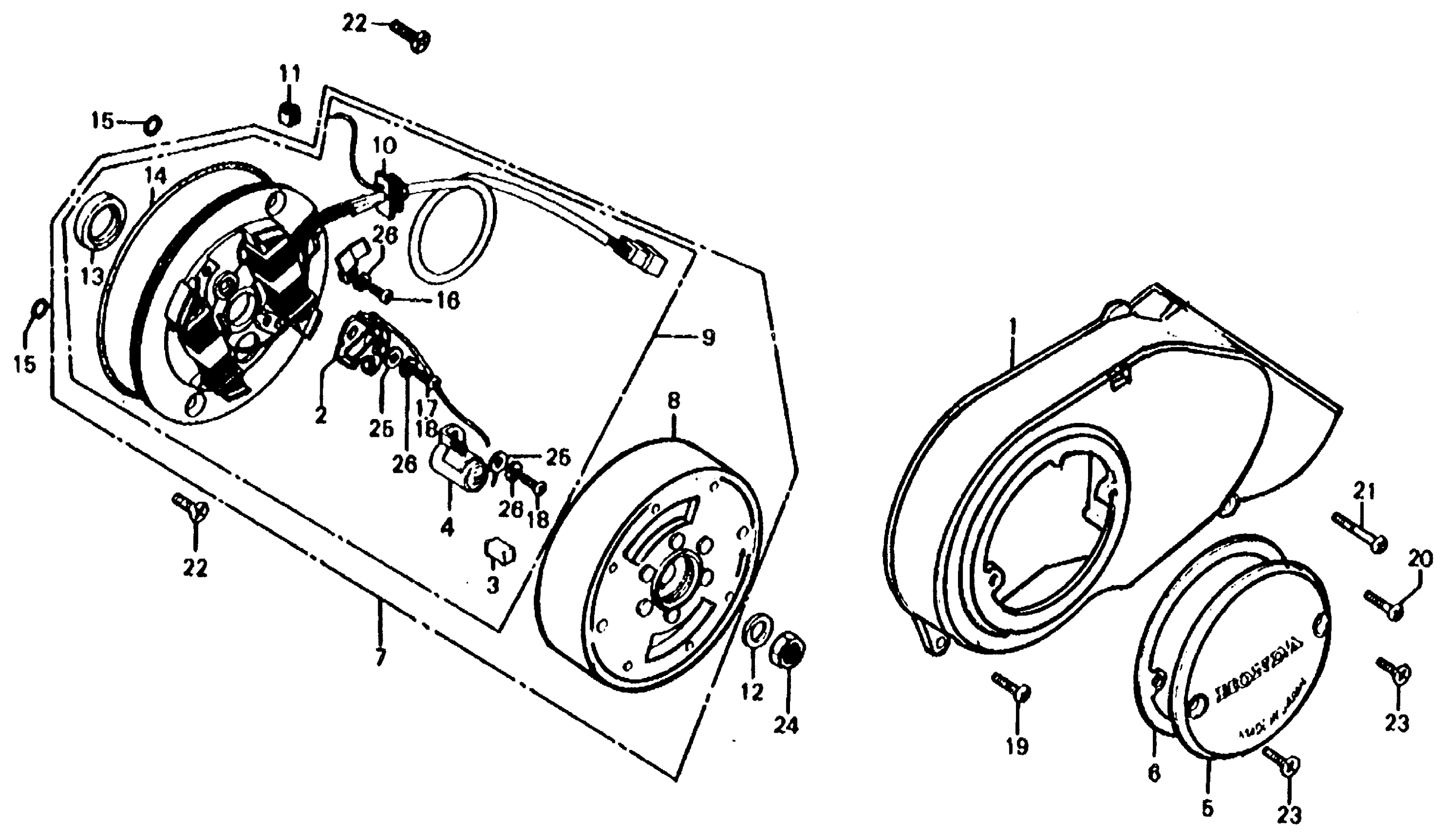

Honda CT70K3A MOTORCYCLE, JPN, VIN# CT70-2300001 TO CT70-2332907 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-098-010.

11341-165-750

Unavailable

1

COVER, L. CRANKCASE

11341-165-750

Unavailable

2

POINTS (HITACHI)

30202-041-015

$29.26

3

FELT, OIL (HITACHI)

30205-041-005

$3.83

4

CONDENSER (HITACHI)

30250-041-005

$24.74

5

COVER, POINTS

30371-098-750

Unavailable

6

GASKET, POINTS COVER This part replaces 30374-040-010.

30374-040-020

$3.13

6

GASKET, POINTS COVER

30374-040-020

$3.13

6

GASKET, POINTS COVER This part replaces 30374-040-306.

30374-040-020

$3.13

7

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-098-731

Unavailable

8

FLYWHEEL (HITACHI) (NOT AVAILABLE)

31121-045-015

Unavailable

9

STATOR ASSY. (NOT AVAILABLE)

31141-098-731

Unavailable

10

GROMMET, WIRE

32971-035-000

$2.44

11

GROMMET, NEUTRAL SWITCH WIRE

32981-035-000

Unavailable

12

WASHER, MAGNET FIXING

90426-035-000

$2.57

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-000.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-GB4-682.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-003.

91202-GK4-722

$6.14

13

OIL SEAL (18.9X30X5) This part replaces 91202-035-005.

91202-GK4-722

$6.14

14

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

14

O-RING (107X2)

91301-035-003

$7.05

15

O-RING (6X1.7)

91317-171-003

$2.92

15

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

16

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

16

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

16

SCREW, PAN (4X6)

93500-04006-0A

$1.49

16

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

18

SCREW, PAN (4X10)

93500-04010-0A

$1.49

19

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

19

SCREW, PAN (6X20)

93500-06020-0A

$1.49

20

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

20

SCREW, PAN (6X28)

93500-06028-0A

$1.49

21

SCREW, PAN (6X35)

93500-06035-0A

$1.49

21

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

22

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

22

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

23

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

24

NUT, HEX. (10MM)

94030-10000

$1.49

25

WASHER, PLAIN (4MM)

94101-04000

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49
